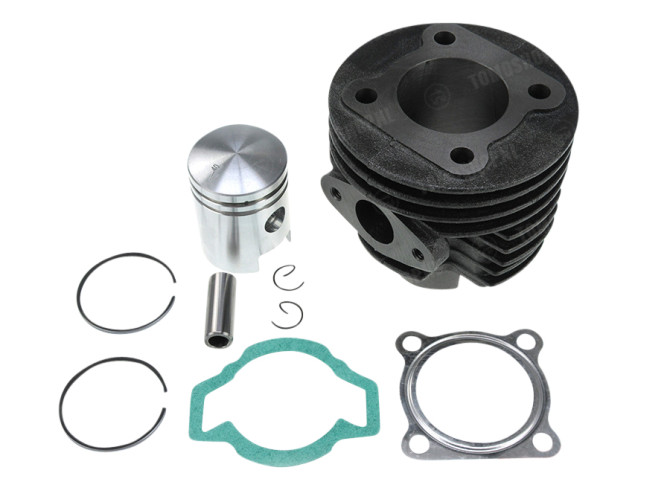

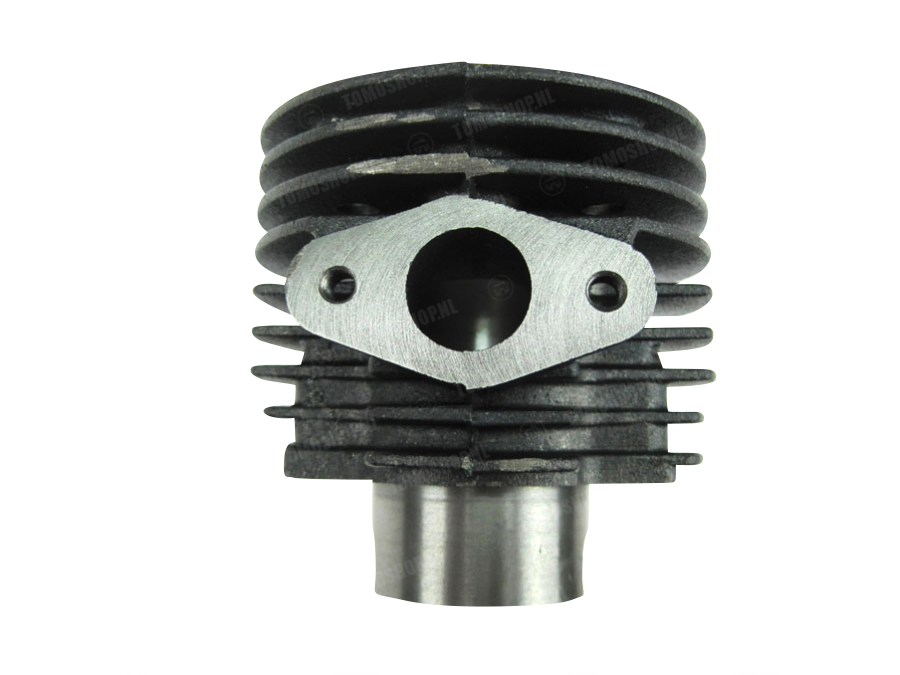

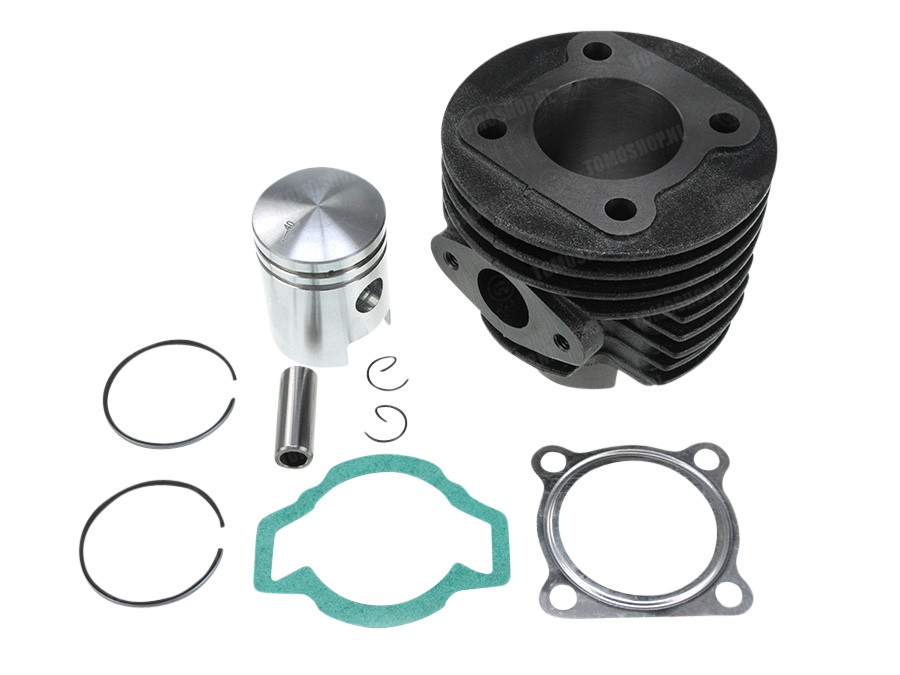

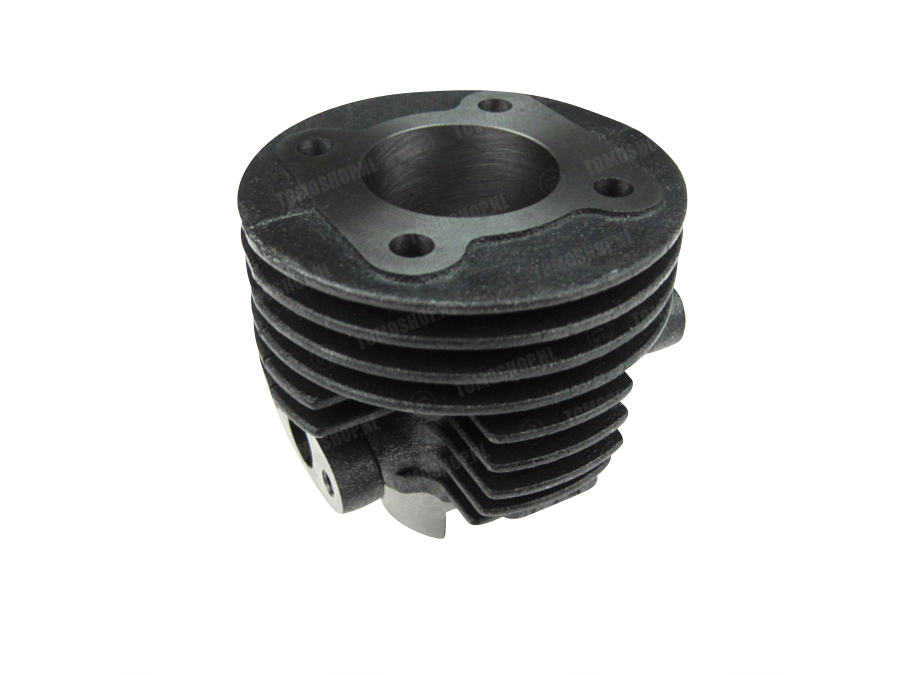

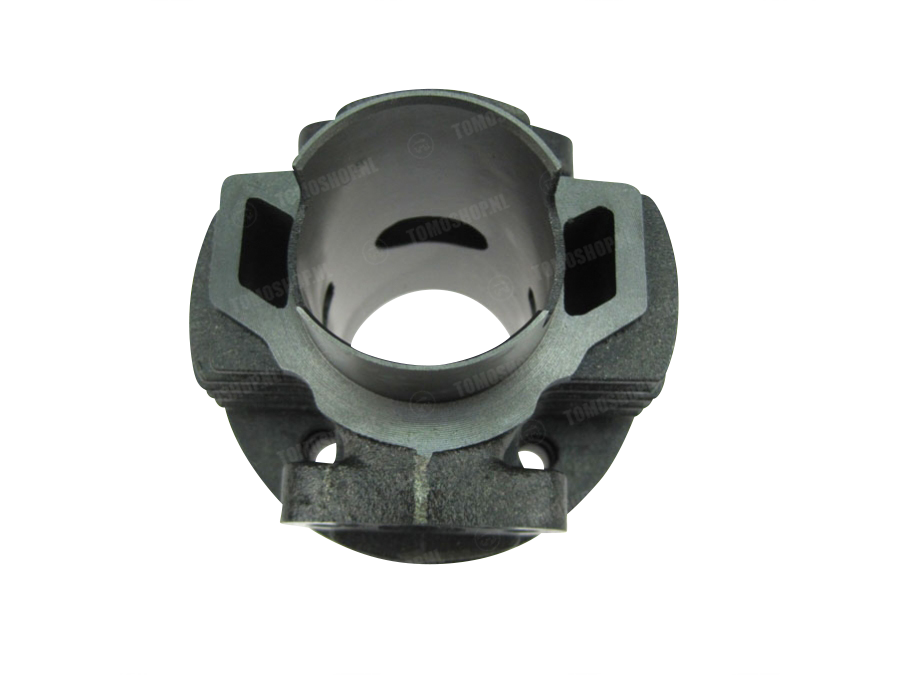

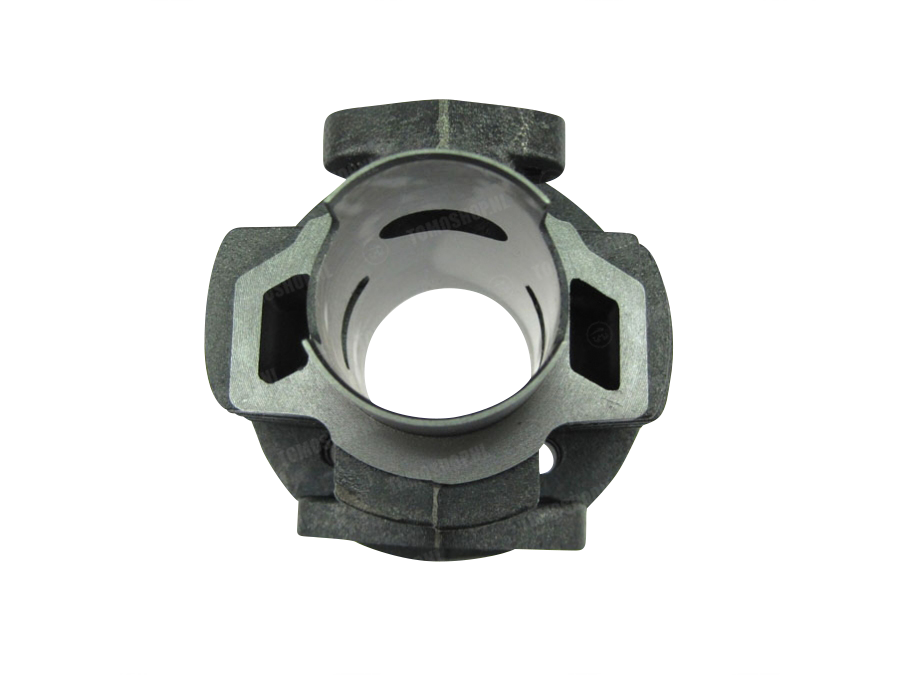

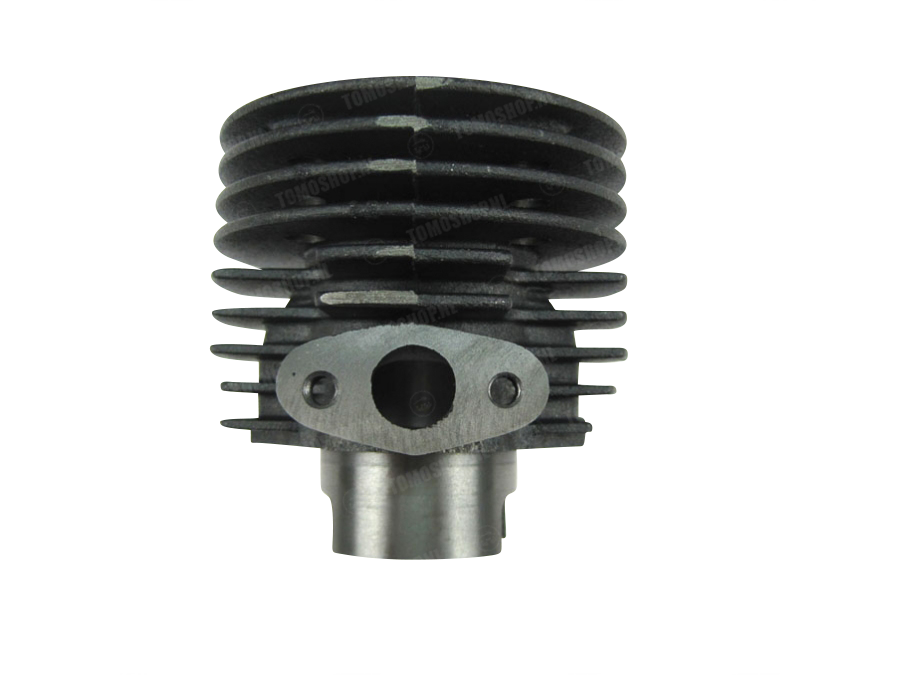

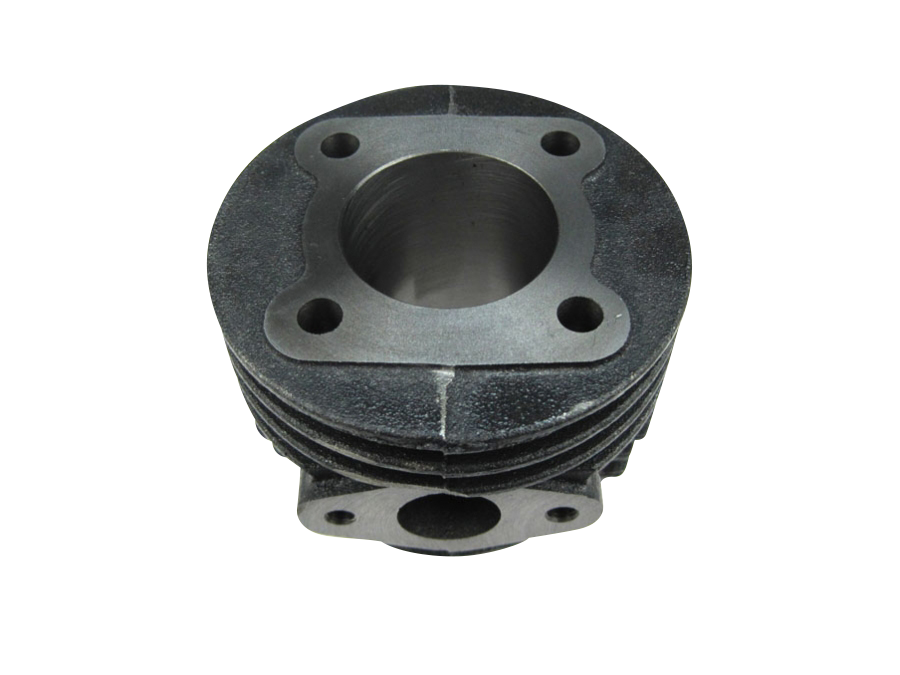

Cylinder Tomos 2L / 3L 60cc (40mm) pin 12 cast iron

Cilinder 40mm pen 12

• Tomos 2L / 3L
• Gietijzer 40mm/60cc.
• Zuiger met 2 blokveren
• Compleet met zuiger (12mm pen).
• Met pakkingen

Before mounting

• We always recommend thoroughly inspecting and cleaning the cylinder before installation and slightly smoothing the ports in the cylinder with 1000-grit sandpaper to remove sharp edges. This significantly extends the lifespan of the cylinder/piston. You can also refine or optimize it with a file or a multi-tool (Dremel) for even better performance.

Afmetingen cilinder

• A: 7mm
• B: 44mm
• C: M6
• D: 68mm
• E: 19mm
• F: 42mm
• G: M6
• H: 32mm
• I: 14mm
• J: 14mm
• K: 14mm

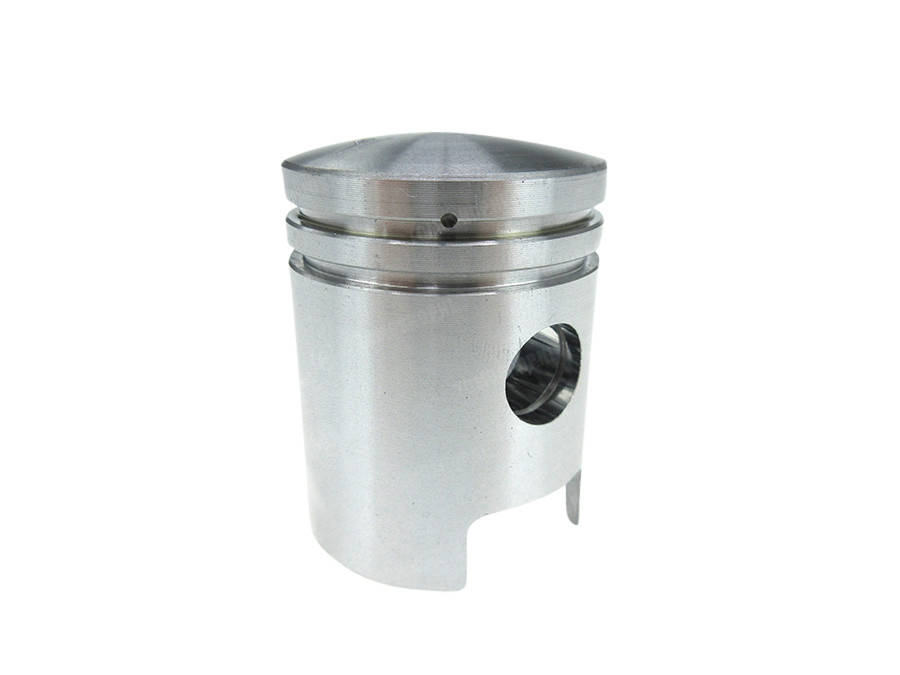

Afmetingen zuiger

• A: 4mm
• B: 22mm
• C: 23mm
• D: 12mm
