Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete

Bestseller
Set
  • Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
Cylinder Tomos A35 / A52 65cc Airsal tuning subtle complete
    € 279,00
    -15%
    € 237,15
    Ex Tax: € 195,99
    Tomoshop Not in stock Not in stock
    Model: 10302RS
    Tomoshop price Without shipping costs. VAT info.
    Customer service

    Do you need some help or advice?

    Tomoshop info Check out our info center or contact us!

    Description

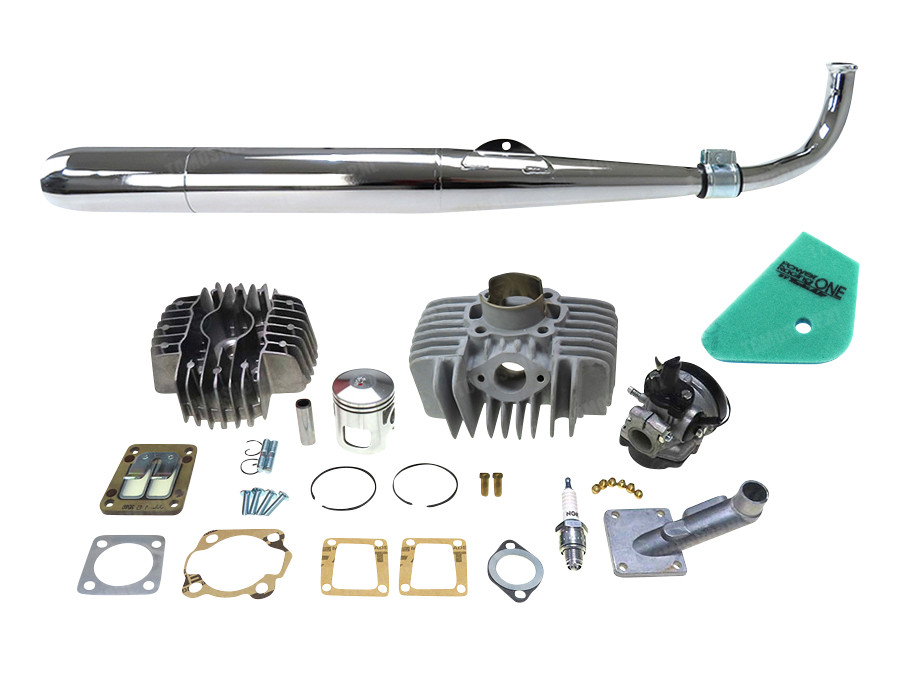

    Complete 65cc "subtle" tuning kit for Tomos A35 with Airsal reed valve cylinder

    Subtle 65cc Airsal tuning kit with a original model aluminium cylinder head and our well known RS cigar exhaust!

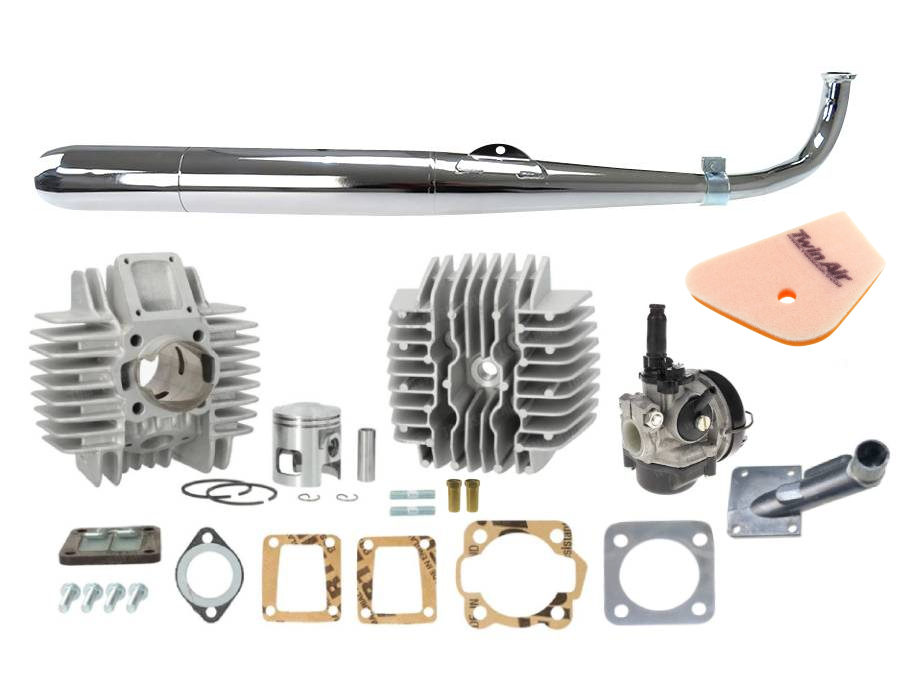

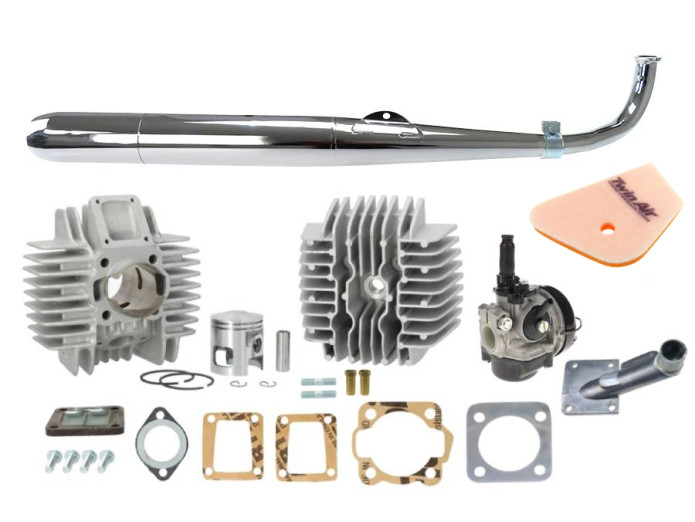

    Set contains:

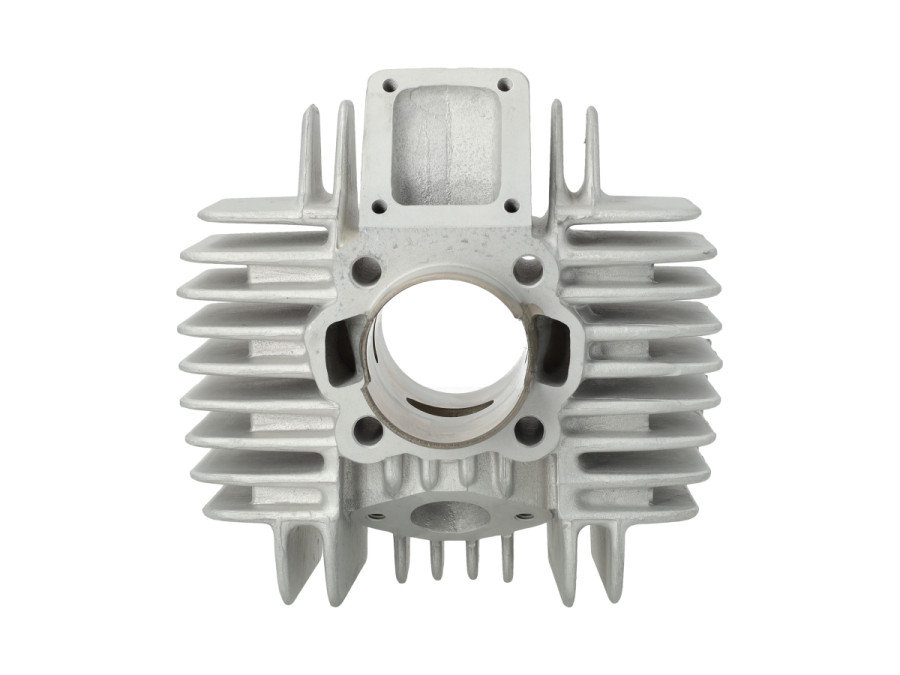

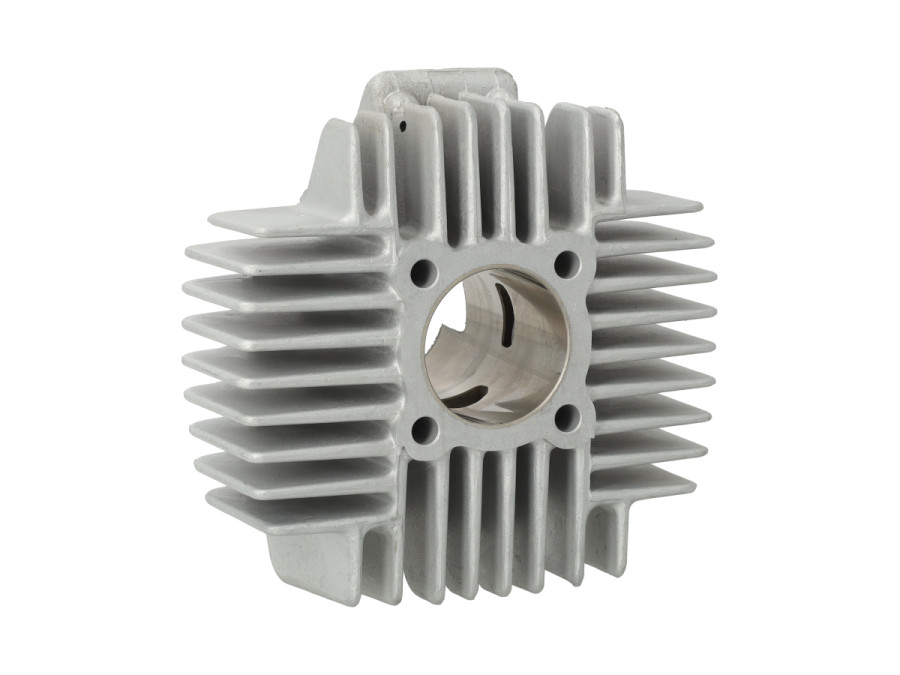

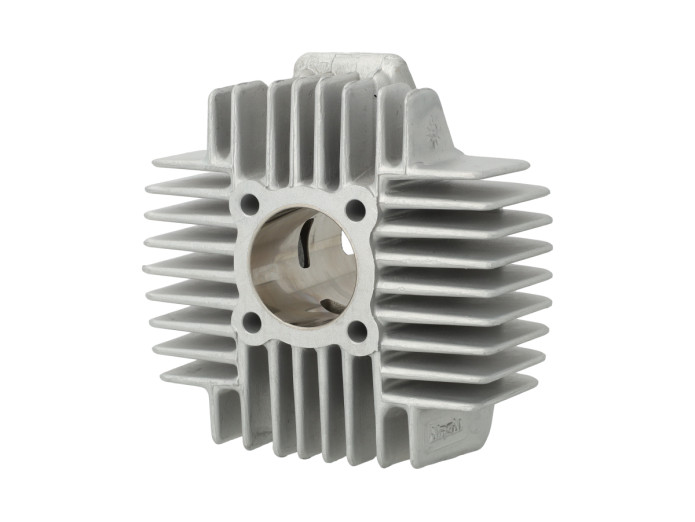

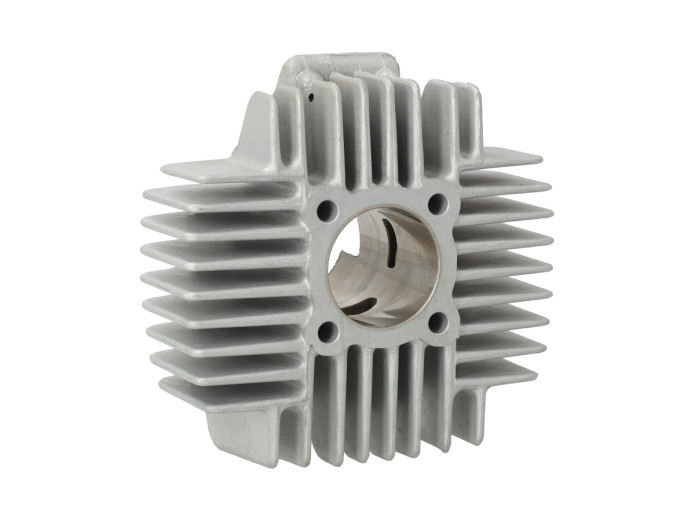

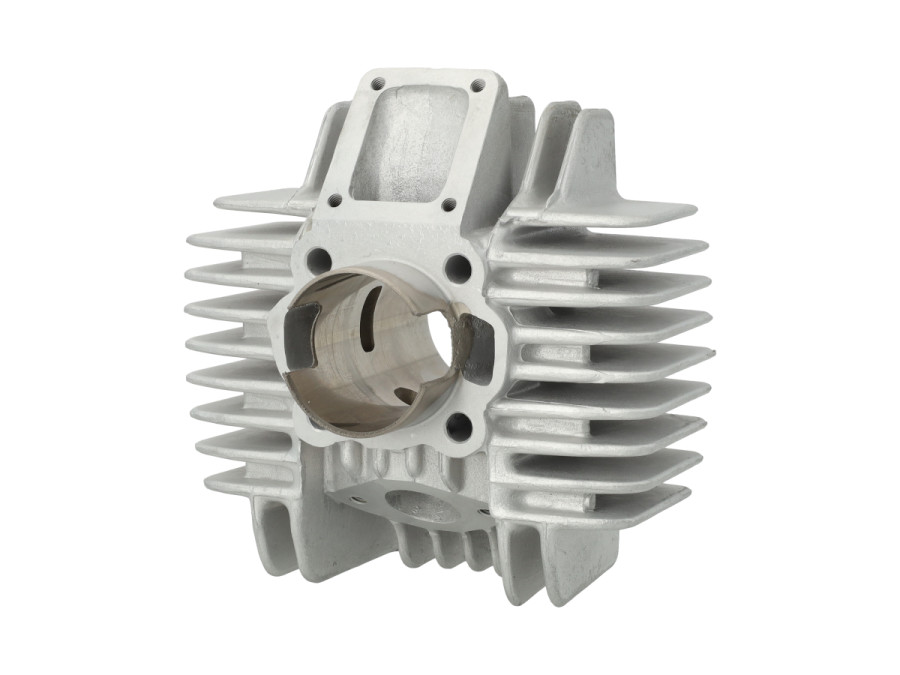

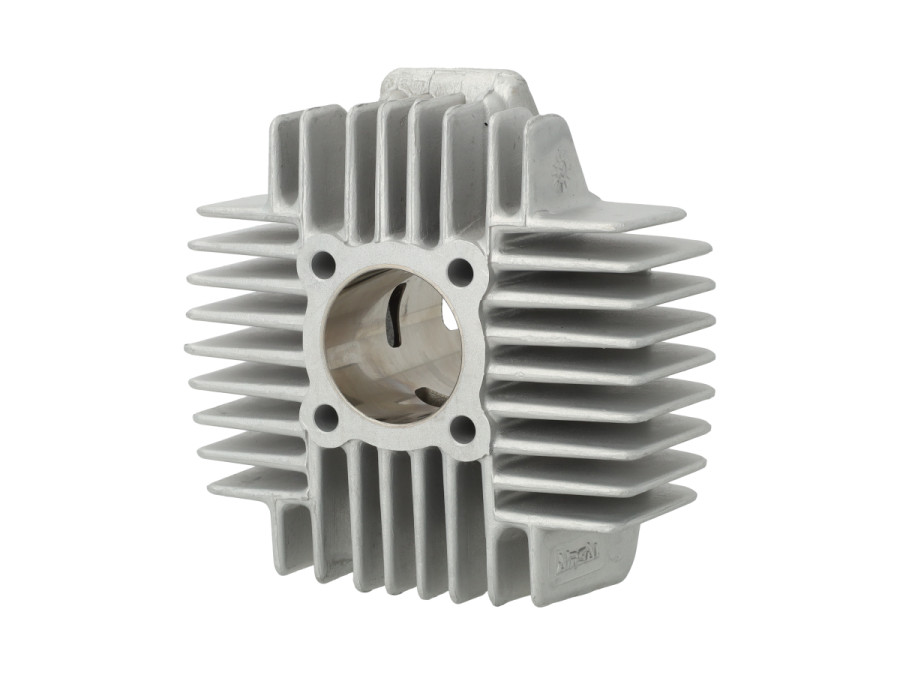

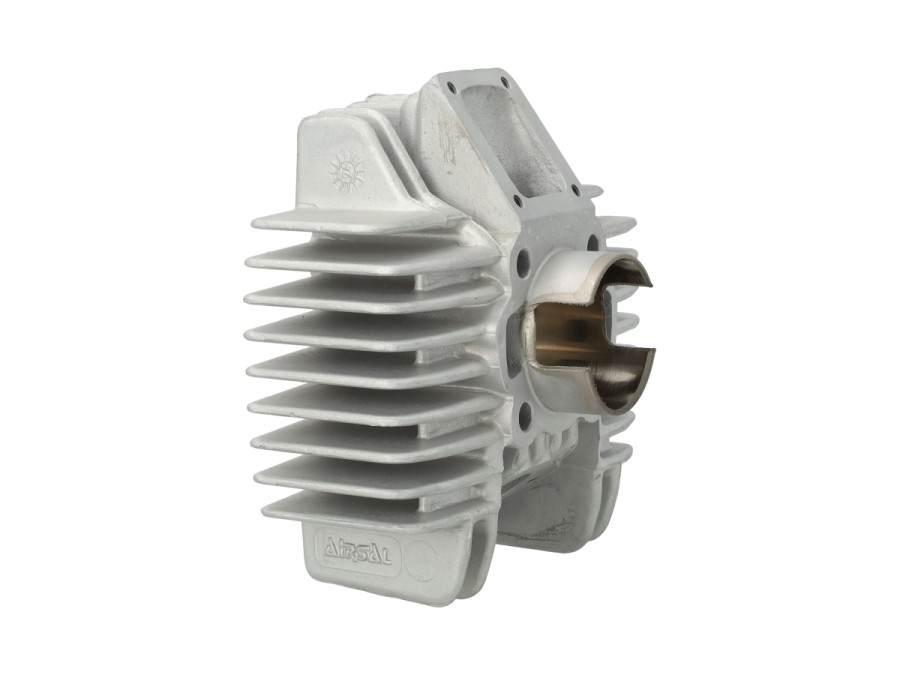

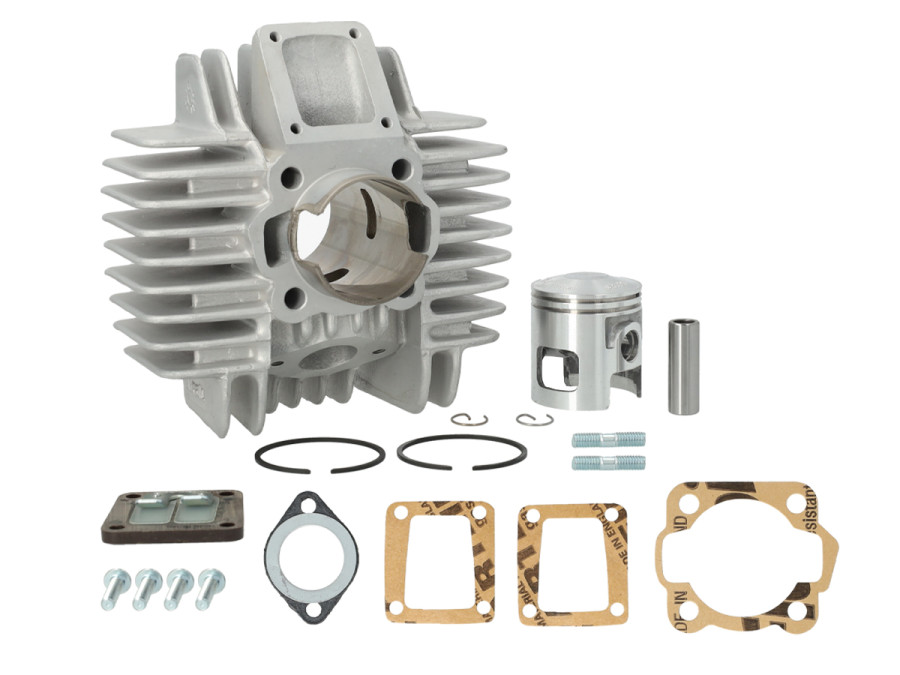

    • Airsal 65cc 44mm reed valve cylinder

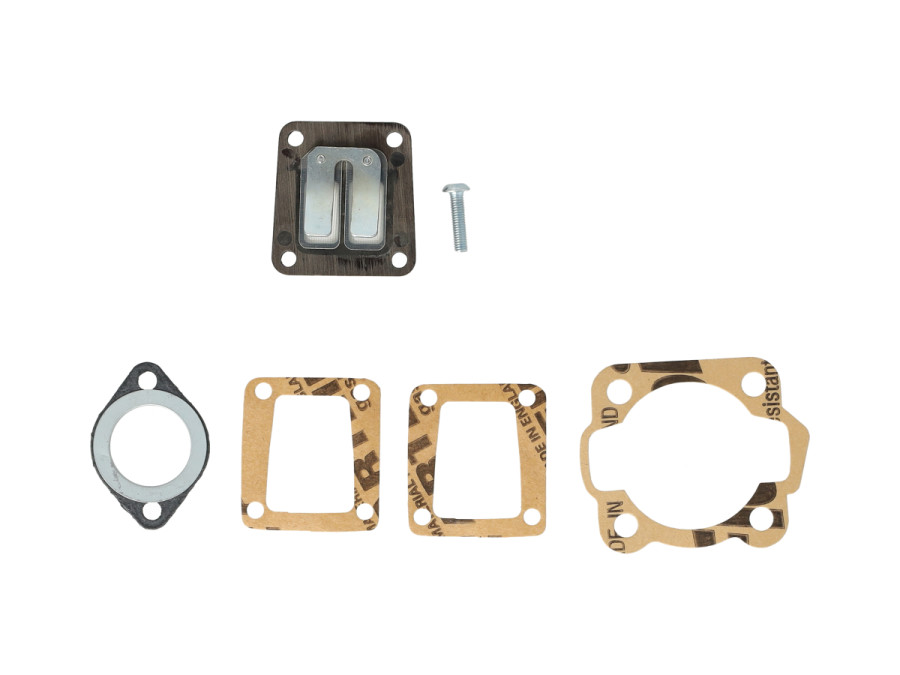

    • Airsal reed valve
    • Airsal gasket set with 0.5mm head gasket
    • Original model 65cc high pressure cylinder head aluminium

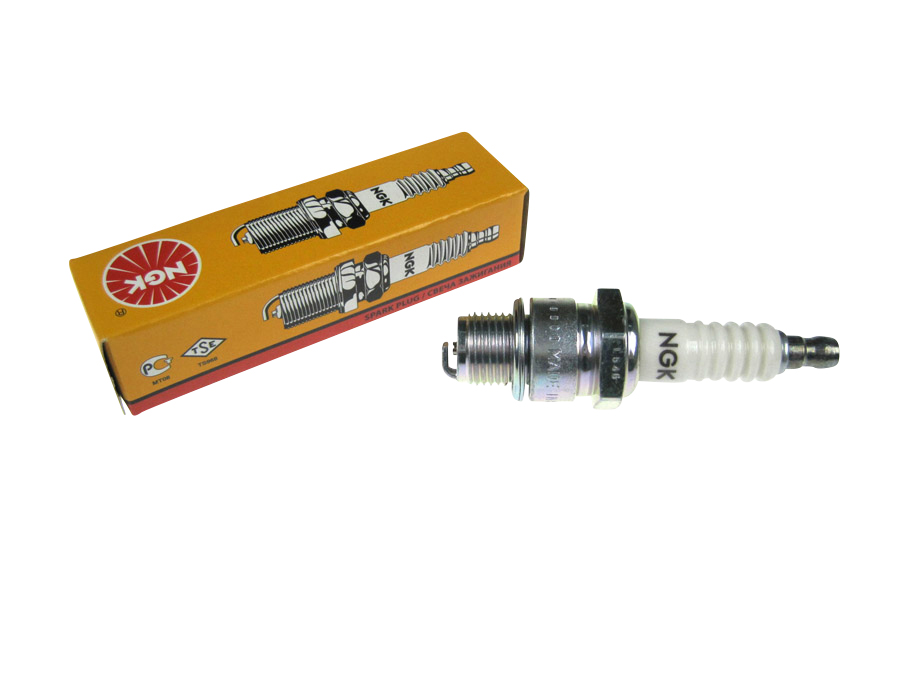

    • NGK B7HS spark plug

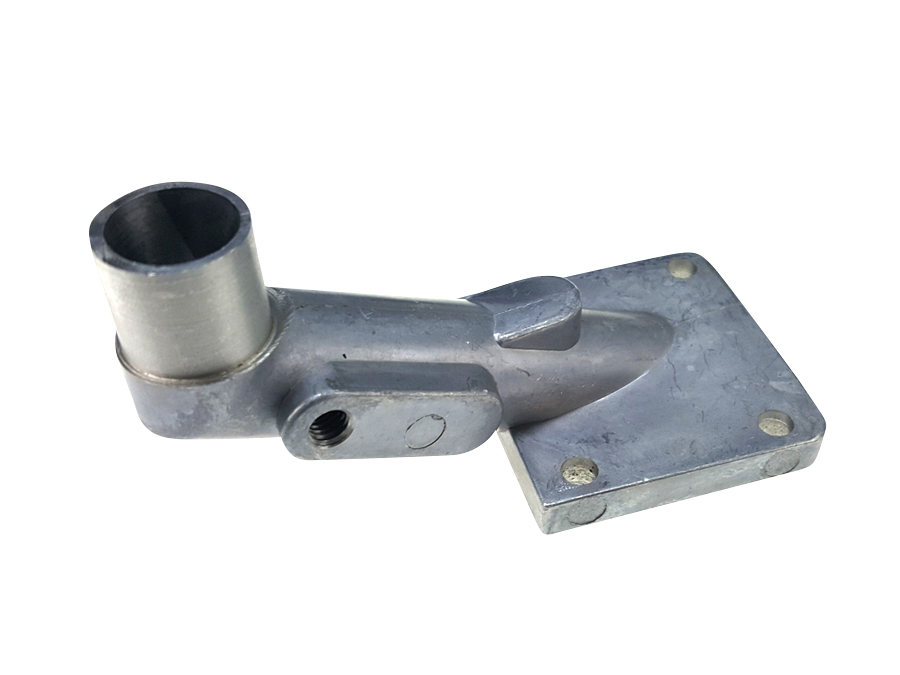

    • 15mm manifold

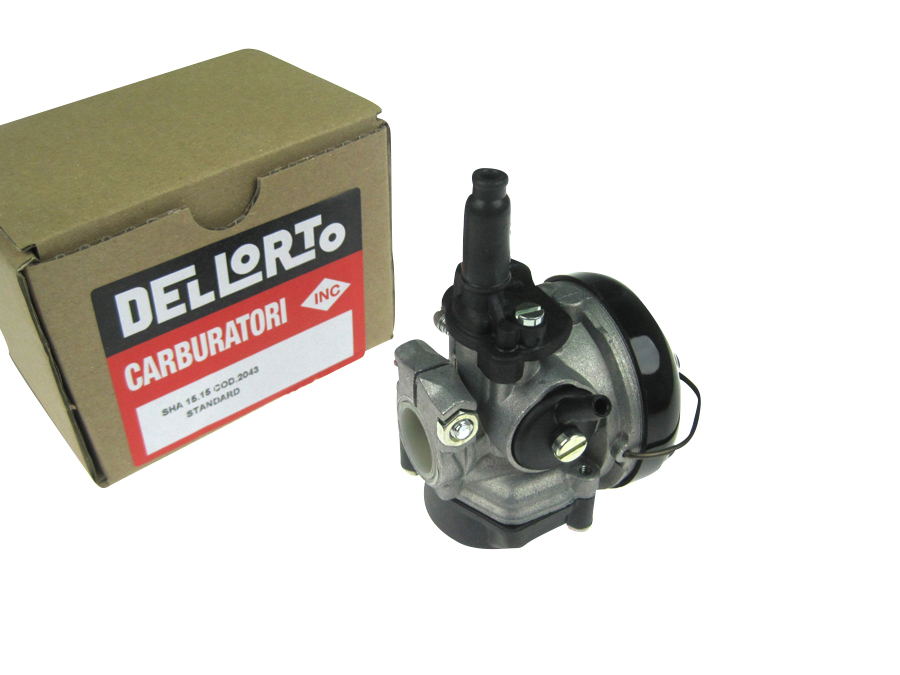

    • Original Dellorto SHA 15 carburetor with mesh filter and cap
    • 6x 5mm jets sizes 70-72-74-76-78-80
    • TwinAir upgrade replacement filter for original airbox

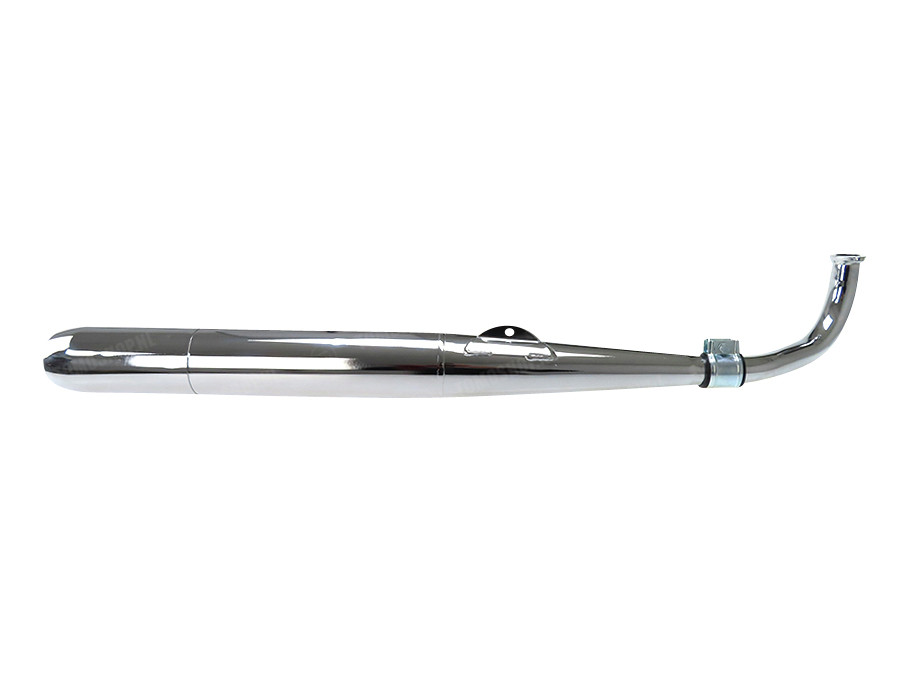

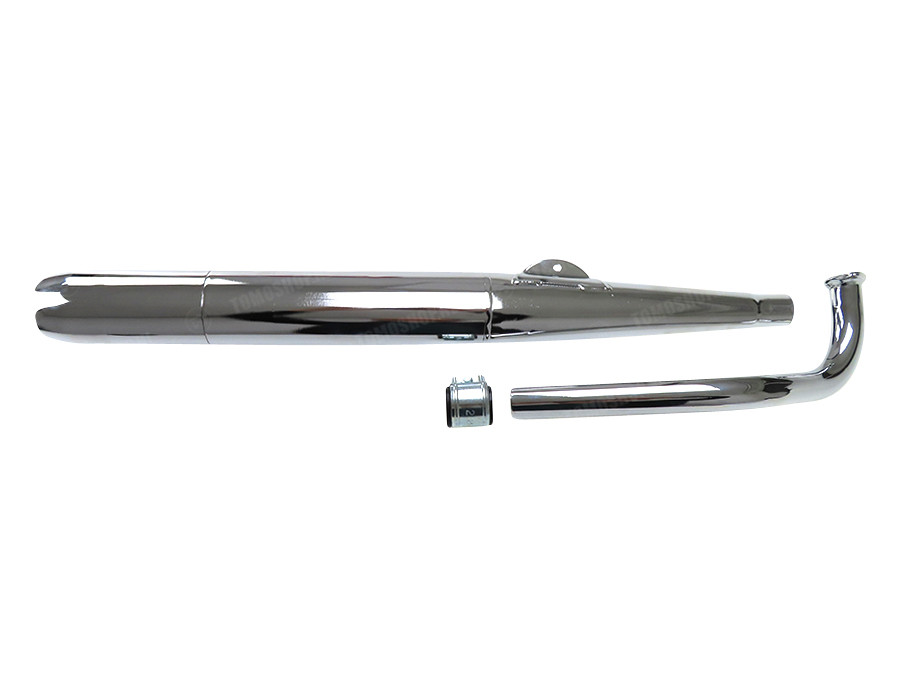

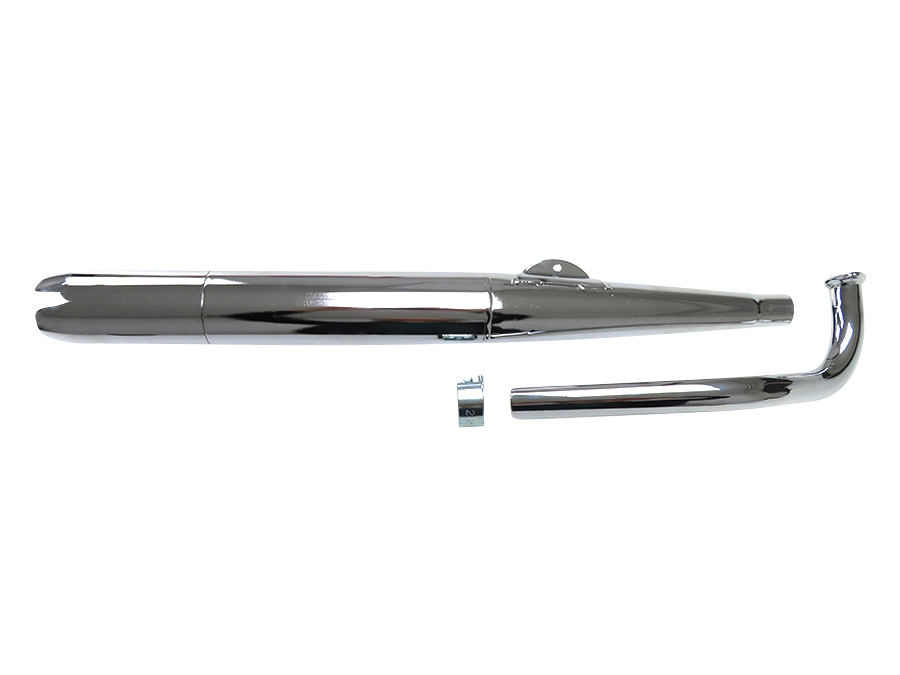

    • RS cigar chrome with 28mm manifold and clamp
    • 2x long brass exhaust nuts M6

    Tips:

    • The gasket kit includes an old model base gasket, if you have large coil ports order a new model foot gasket along.
    • Shorten the exhaust manifold length yoursel to the desired length for easy fitting and the best performance.
    • Do you have a 25 km/h model and a ignition without pick-up? Set the ignition to 45 km/h mode. You need a flywheel puller and a piston stop for this (see related products).
    • A standard moped sprocket ratio is 26/33. For a higher top speed, replace your rear sprocket for a smaller one, e.g. 22 teeth.

    Note:

    • The 15mm manifold has a hole for oil pump/hose supply. Don't have a oil pump Then order a the blocking bolt (see related products)
    • The throttle cable adjuster on top of the carburetor is pointing upwards. Should it point forward? Swap the old one or get a new one (see related products)
    • Do you have a Euro2 frame model? (exhaust mount with 2 holes), then order the euro2 bracket or shock absorber mount (see related products)
    • Note: Some center stands may not work because of the thickness of the silencer

    Before mounting

    • We always recommend to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

    For Tomos A35 / A52 with reed valve cylinder

    • Tomos A35
    • Tomos Standard
    • Tomos Classic
    • Tomos Quadro
    • Tomos Luxe
    • Tomos Flexer / Sport'R
    • Tomos Pack'R
    • Tomos Youngst'R
    • Tomos Revival A35
    • Tomos Wizz'rd
    • Tomos Califone
    • Tomos Roadie
    View more Read more
    Brand: Airsal
    Model: 10302RS
    EAN: 8434829001887
    MPN: 02210244
    Category: Engine parts
    Type product: Cylinder / head
    Type product: Cylinders
    Cylinder / head
    Cylinder diameter: 44mm
    Cylinder Displacement: 65cc
    Piston pin: 12
    Weight: 3 gram

    Spain-based Airsal officially started producing for the international moped market in 1986. With years of experience and their own R&D department, they have optimised the production of cylinders and accessories, such as pistons and cylinder heads. Production optimisation has ensured a high-quality product and a very competitive price. Tomoshop.nl in 50cc and 65cc. Tuning your moped even more extreme? If you are going to work on the crankcases, you can opt for 74cc Airsal with 8 ports (originally for Puch Maxi)! Complete cylinder sets are also for sale at Tomoshop with cylinder head and carburettor. Click here for the entire Airsal range.
