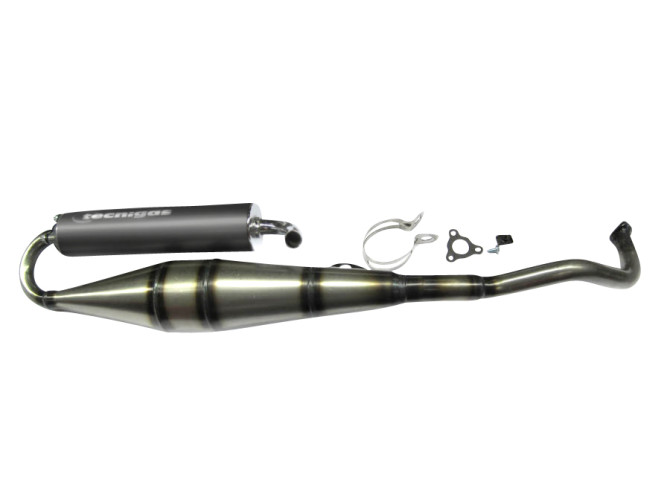

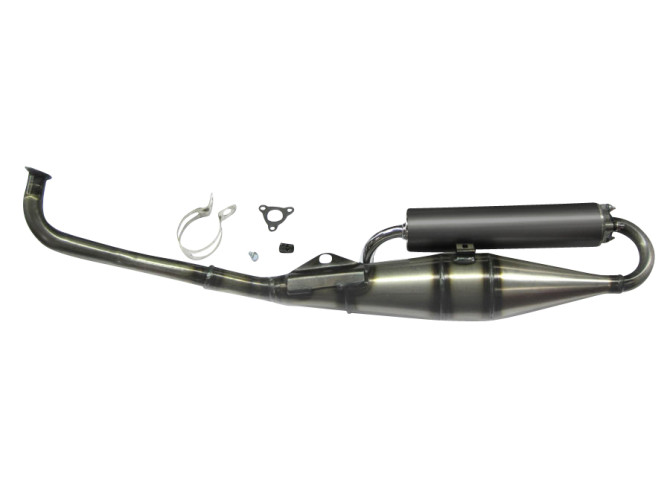

Exhaust Tomos A55 28mm Tecnigas Next R blank

Tecnigas Next R blank

• For Tomos models with A55 cylinder such as the Tomos Roadie, Youngst'R, Streetmate and Funtastic

• Note, exhaust will not fit a standard Tomos Revival with A55 cylinder unless you remove the drop bracket support underneath the cylinder!

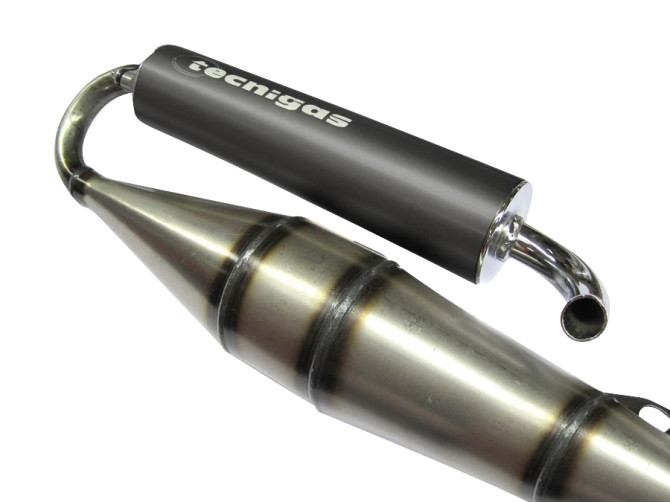

• With aluminium silencer.
• 28mm outer diameter manifold
• With black exhaust silencer
• Please note that the exhaust is bare i.e. raw untreated steel. The material may therefore contain small scratches/spots

Tips:

• Use our long brass M6 nuts in combination with hardened studs (see related products). This so you can easily and fully tighten the exhaust flange. Brass is also softer than steel, so it will not seize.
• Always use a new exhaust gasket when fitting an exhaust

When using all exhausts, black painted, chrome and blanc exhausts, heat build-up at the exhaust manifold can cause the following:

• At black outlets the paint can dissolve a little.
• Chrome and blanc exhaust manifolds may discolour

If the nozzle is too small or if the ignition is set incorrectly, the exhaust port becomes very hot and discoloring and dissolve of the paint on the exhaust manifold will occur faster than a perfectly adjusted engine. We give no guarantee on discoloration or solving of the paint on the exhaust manifold!

Dimensions:

• A: 340mm
• B: 530mm
• C: 22mm
• D: 28mm
• E: 10mm
