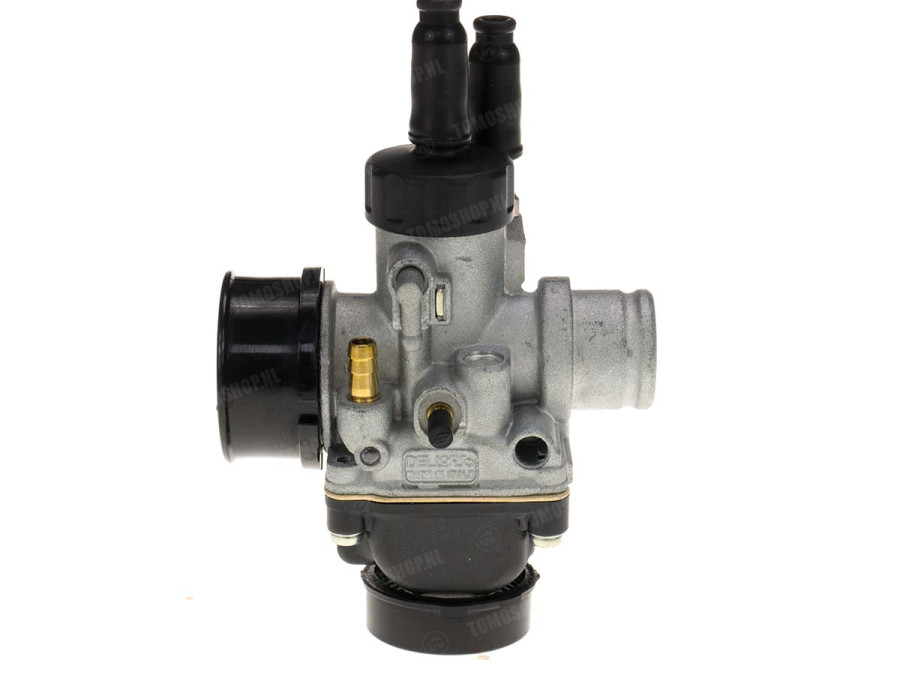

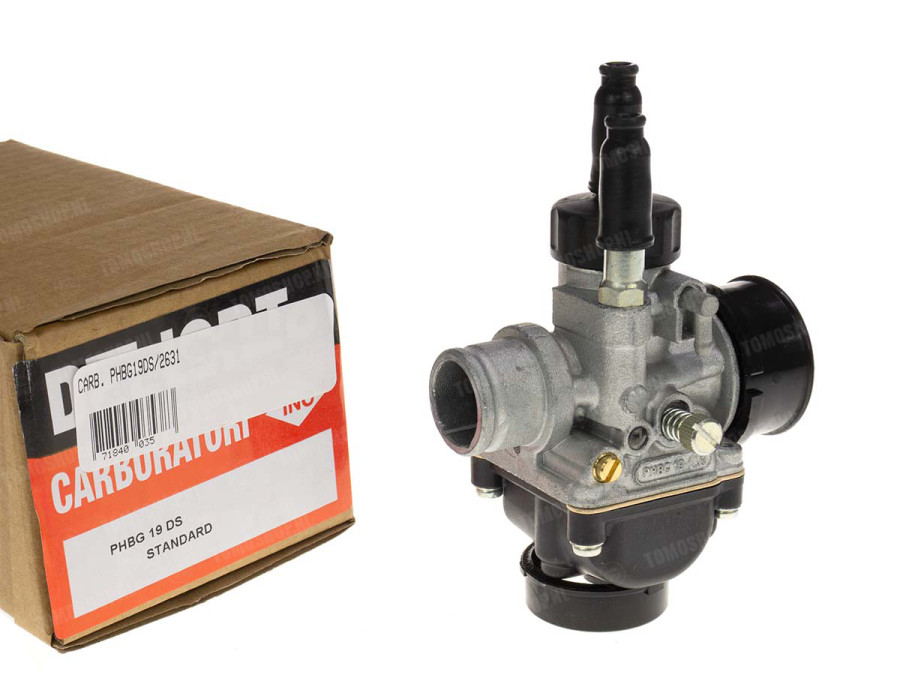

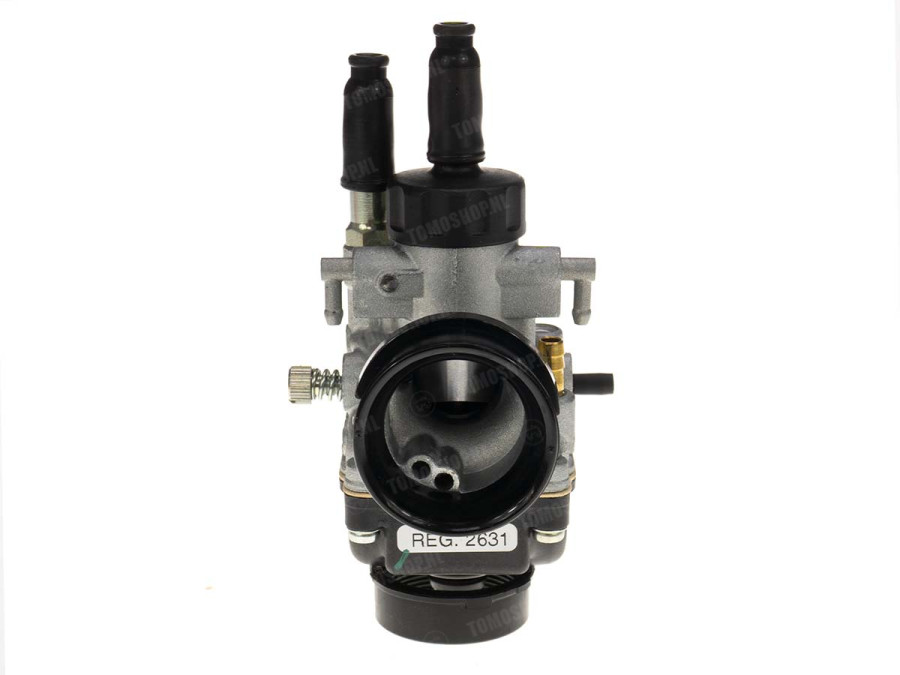

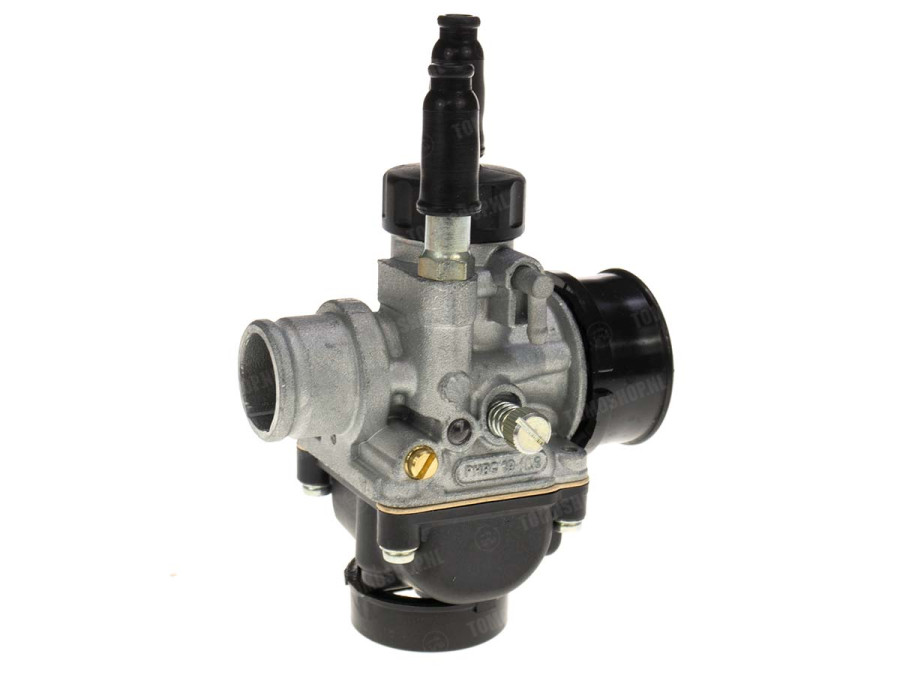

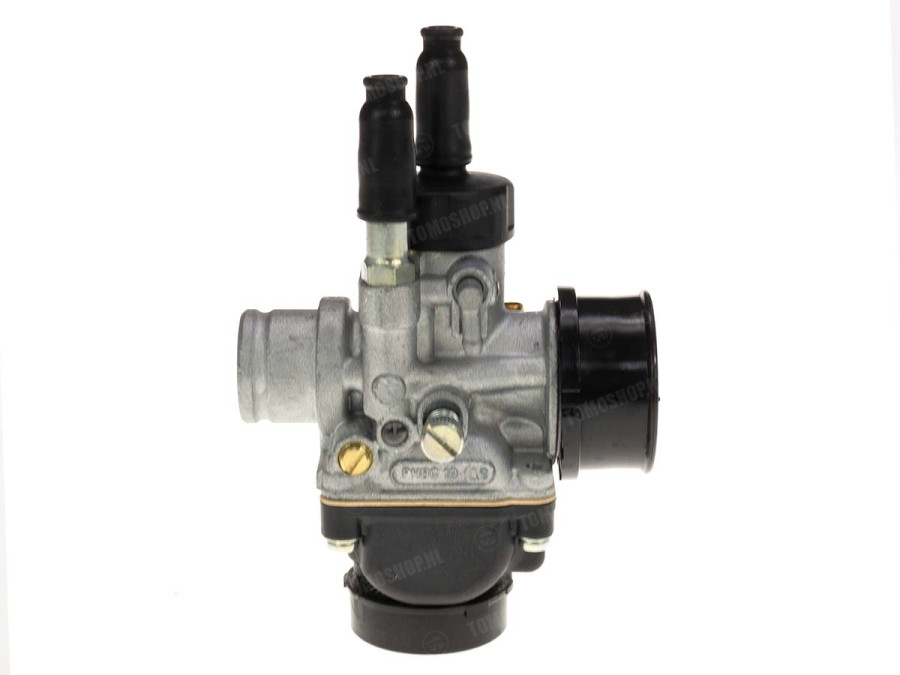

Original Dellorto PHBG 19mm carburettor
- Connection diameter of the manifold 24mm
- Connection diameter of the air filter 32mm with adapter 38mm
- Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
- Carburettors are delivered with a 75 nozzle/jet.
- Carburettors should always be cleaned before installation.
- Cable choke control.
- Spigotstyle
- Adjustment on the left side
- Dellorto 2631
Standard jetting
- 30 Slide
- W9 needle
- 75 Main jet
- 262AN |Atomiser
- 45 Idle jet
- 60 Choke jet
- 9450.1 Float – 4.0 grams
With a matching manifold applicable to various Tomos models:
- Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.
With a matching manifold also universally usable for:
- Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Puch / Maxi / E50.
