Dellorto PHBG 21mm CS carburetor original

€ 111,49

Ex Tax: € 111,49

Directly available

Model: 20107

20107 20107 20107 Dell’Orto

https://www.tomoshop.nl/en-gb/dellorto-phbg-21mm-carburettor.html 2025-11-09

Without shipping costs. Info about VAT.

Why Tomoshop.nl?

*Read the shipping page for more info.

Do you need some help or advice?

Check out our info center or contact us!

Description

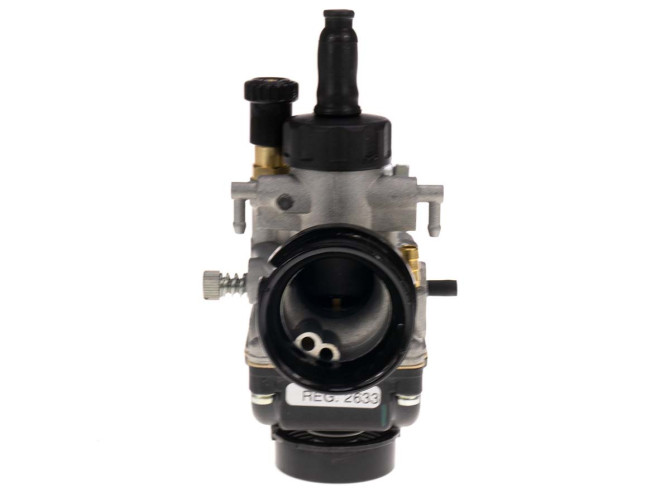

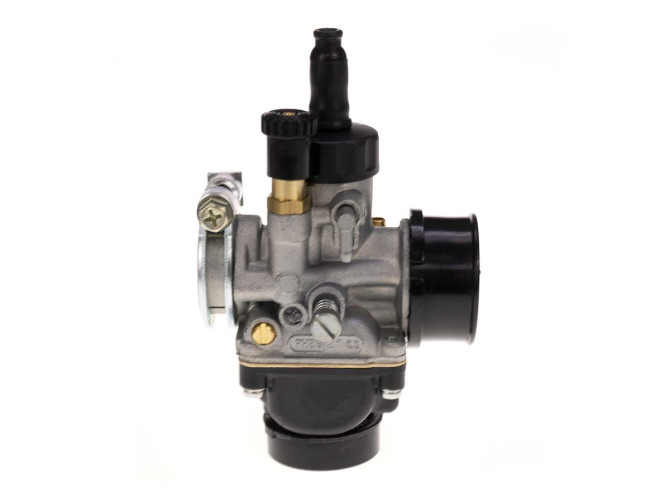

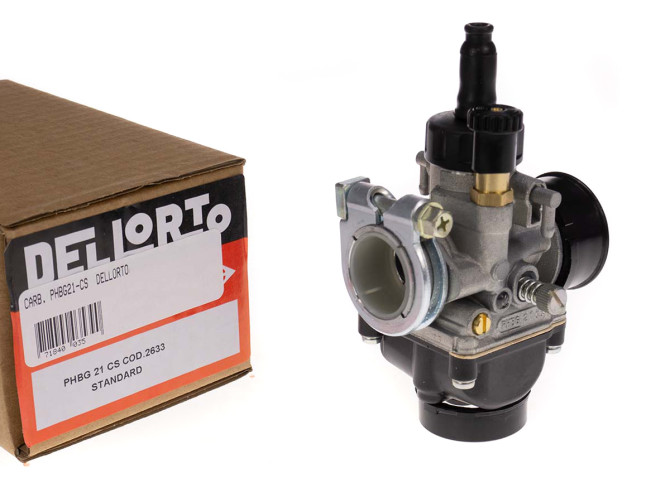

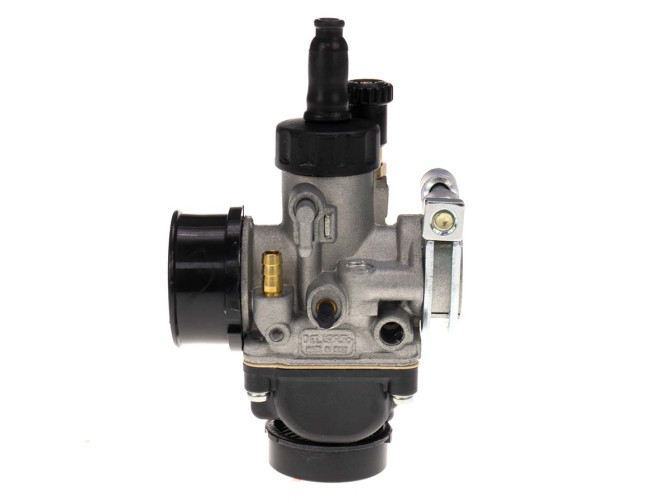

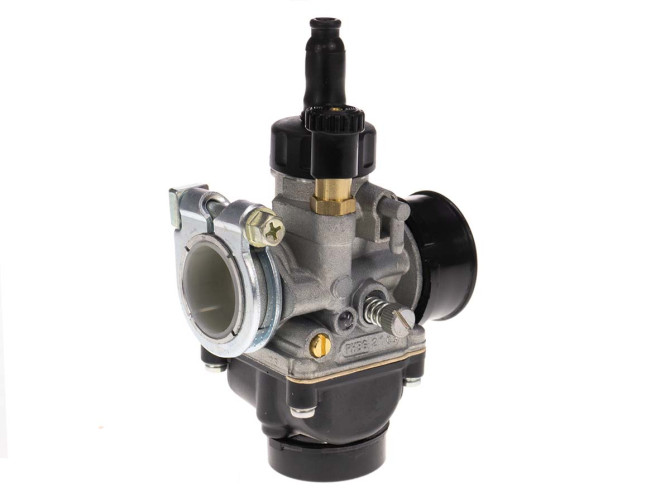

Original Dellorto PHBG 21mm carburettor

Connection diameter of the manifold 24mm
Connection diameter of the air filter 32mm
Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
Carburettors should always be cleaned before installation.
Manual choke control.
Dellorto 2633

Standard jetting

40 Slide
W7 needle
92 Main jet
262AU Atomiser
50 Idle jet
60 Choke jet
9450.1 Float – 4.0 grams

With a matching manifold applicable to various Tomos models:

Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.

With a matching manifold also universally usable for:

Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Puch / Maxi / E50.

Brand:	Dell’Orto
Model:	20107
EAN:	8717688034310
MPN:	2633
Category:	Carburation
Carburetor / sets
Mounting type:	Clamp
Carburetor diameter:	21mm
Weight:	490 gram

About Dell’Orto

Dell’Orto began its activity in 1933 with the manufacture of carburettors for motorbikes. A constant evolution that today makes it a modern and fully integrated company at production level, making technological research its strong point. Large range for vintage mopeds and therefore also for your Tomos like Dellorto SHA, Dellorto PHBG and Dellorto PHVA parts.
