Dellorto PHBG 17.5mm AD carburetor original

€ 94,96

Ex Tax: € 94,96

A few left in stock

Model: 20139

20139 20139 20139 Dell’Orto

https://www.tomoshop.nl/en-gb/dellorto-phbg-17-5mm-carburettor.html 2025-11-12

Without shipping costs. Info about VAT.

Why Tomoshop.nl?

*Read the shipping page for more info.

Do you need some help or advice?

Check out our info center or contact us!

Description

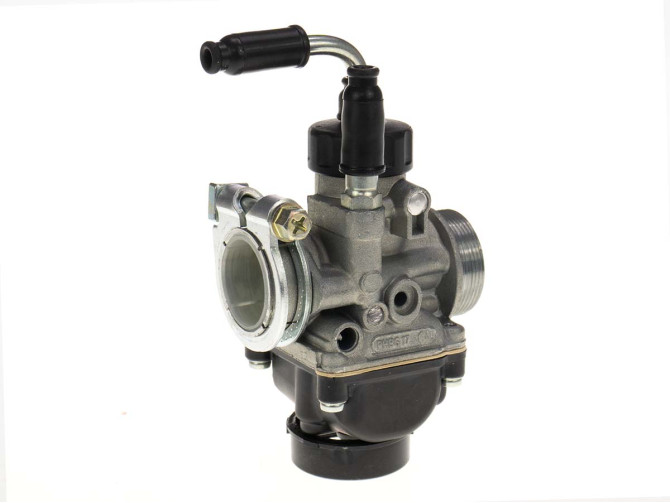

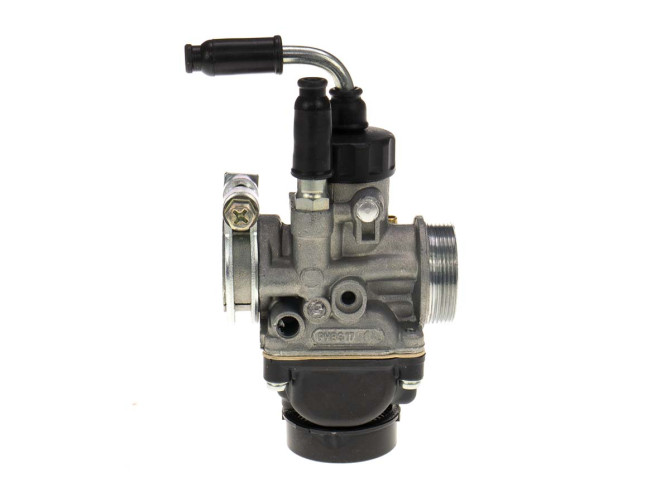

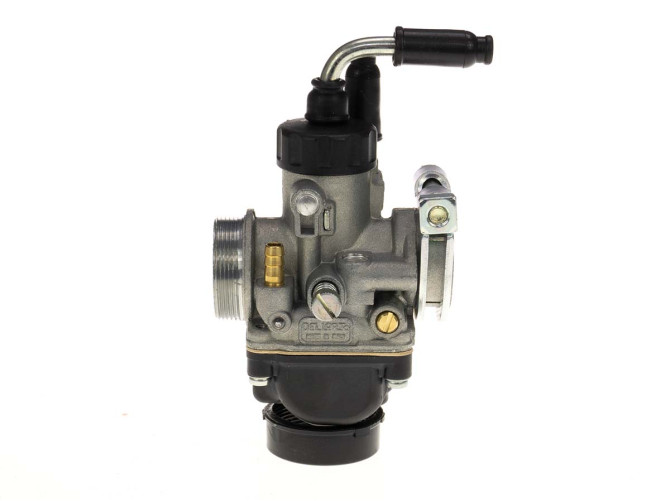

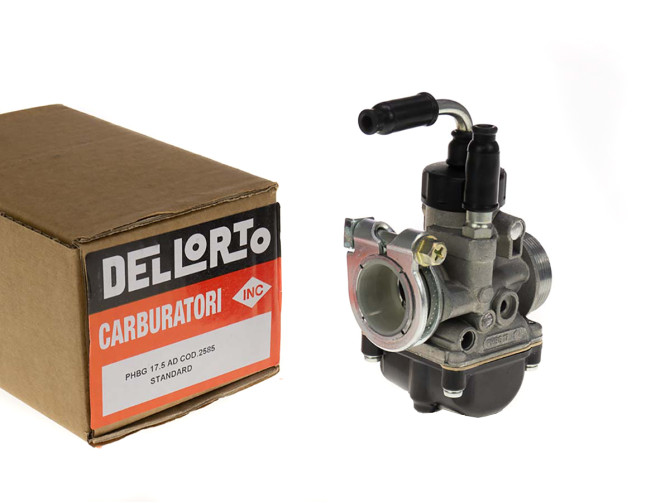

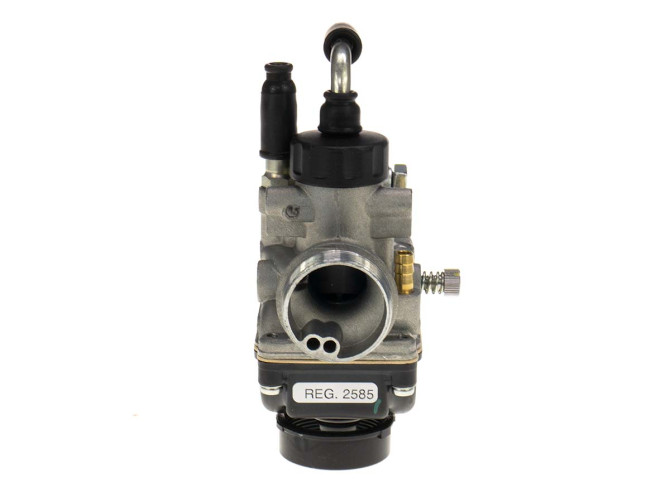

Original Dellorto PHBG 17.5mm carburettor

Connection diameter of the manifold 24mm
Connection diameter of the air filter 32mm
Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
Carburettors should always be cleaned before installation.
Cable choke control.
Dellorto 2585
Carburetor has a 262AN atomizer

Standard jetting:

30 dia
W6 needle
82 main nozzle
262AN atomizer
55 idle nozzle
55 Choke nozzle
9450.2 Float - 5.0 grams

With a matching manifold also universally usable for:

Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Puch / Maxi / E50.

Brand:	Dell’Orto
Model:	20139
EAN:	8718404013091
MPN:	2585
Category:	Carburation
Carburetor / sets
Mounting type:	Clamp
Carburetor diameter:	17.5mm
Weight:	490 gram

About Dell’Orto

Dell’Orto began its activity in 1933 with the manufacture of carburettors for motorbikes. A constant evolution that today makes it a modern and fully integrated company at production level, making technological research its strong point. Large range for vintage mopeds and therefore also for your Tomos like Dellorto SHA, Dellorto PHBG and Dellorto PHVA parts.
