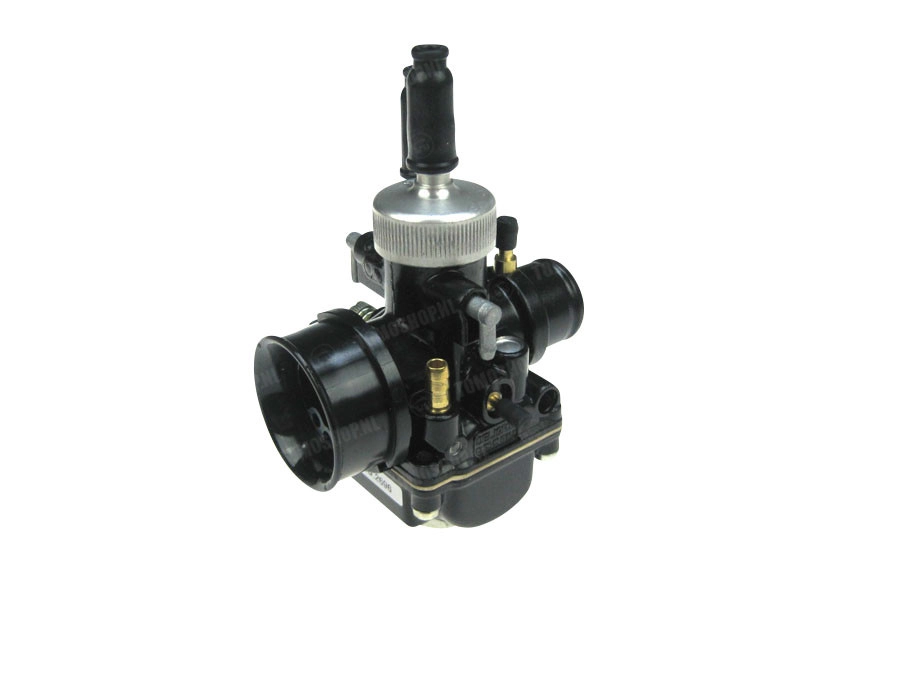

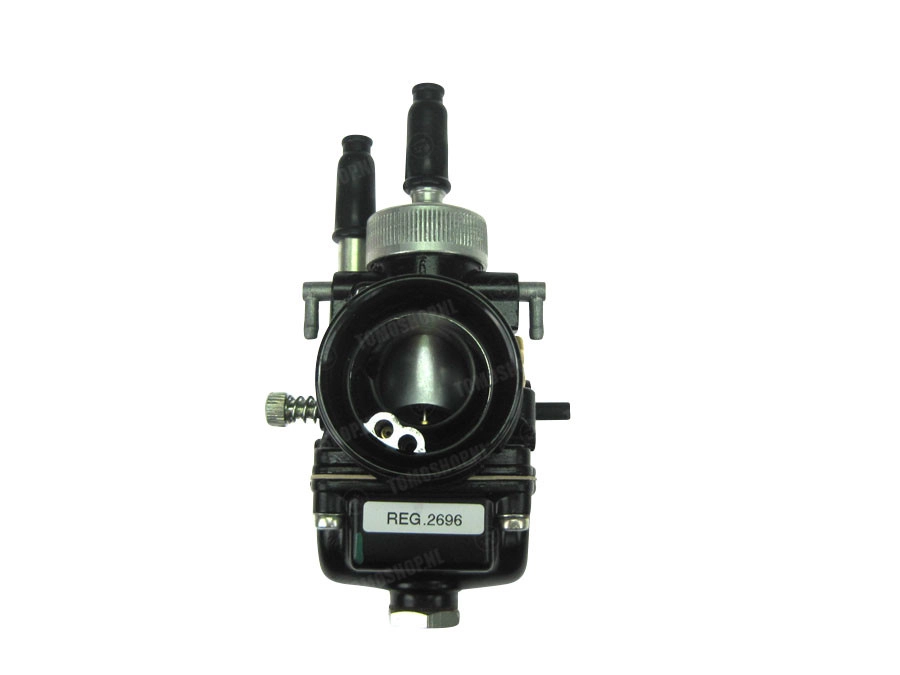

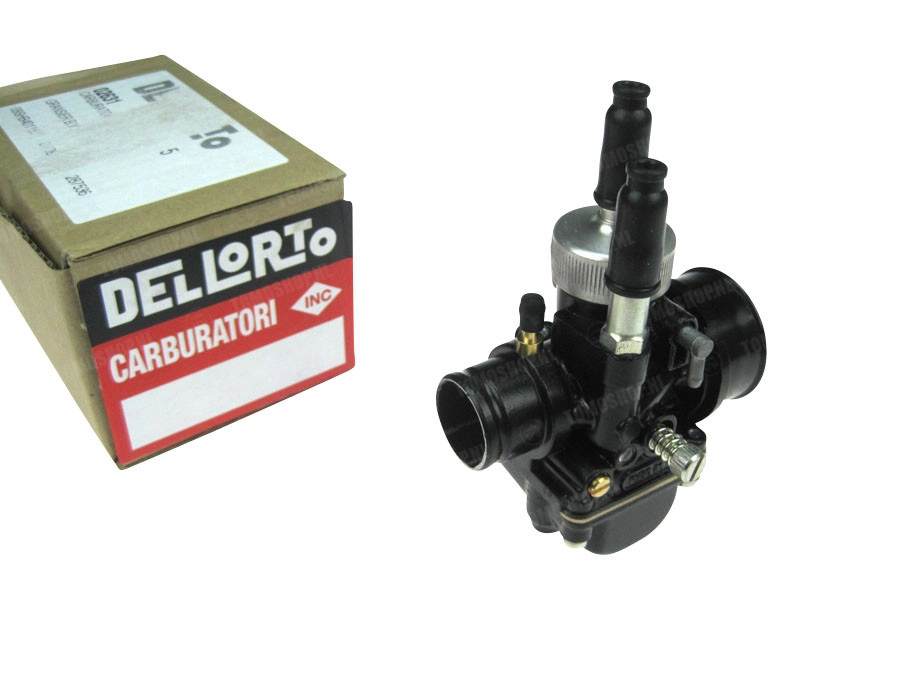

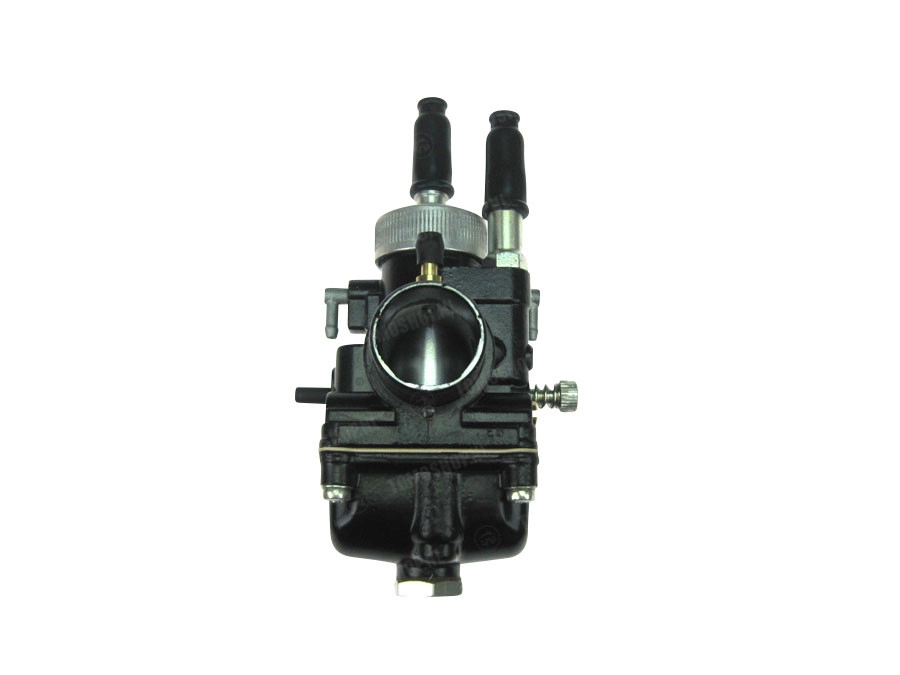

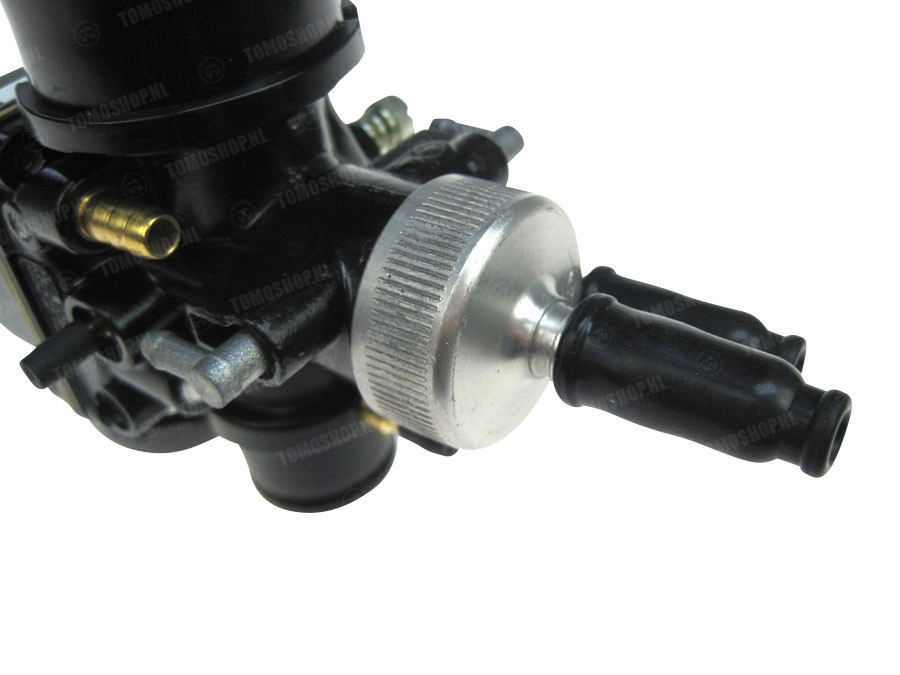

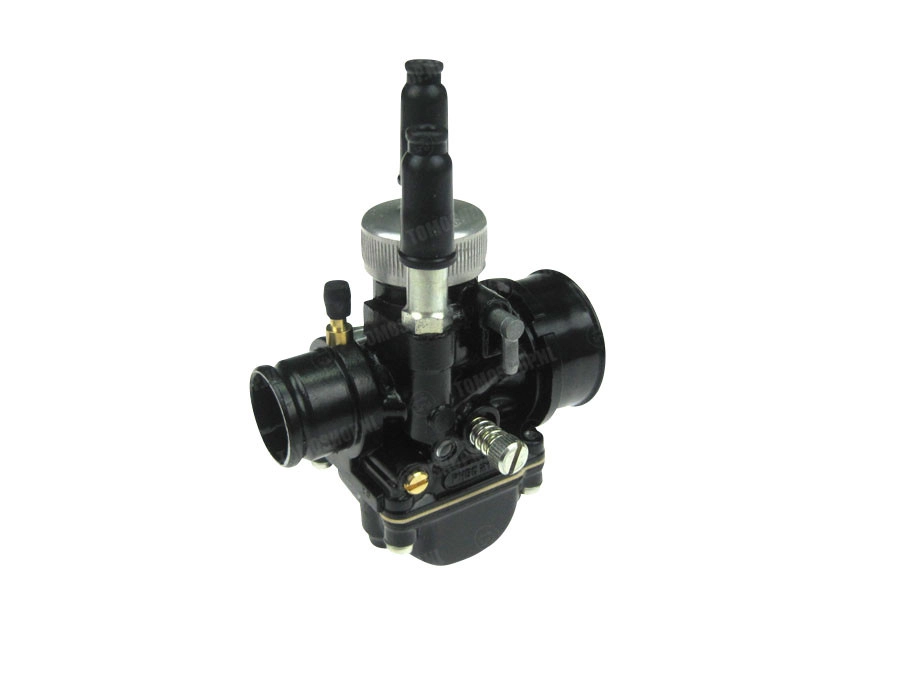

Dellorto PHBG 21mm DS carburetor original spigot Black Racing

  • Dellorto PHBG 21mm DS carburetor original spigot Black Racing
Dellorto PHBG 21mm DS carburetor original spigot Black Racing
Dellorto PHBG 21mm DS carburetor original spigot Black Racing
Dellorto PHBG 21mm DS carburetor original spigot Black Racing
Dellorto PHBG 21mm DS carburetor original spigot Black Racing
Dellorto PHBG 21mm DS carburetor original spigot Black Racing
Dellorto PHBG 21mm DS carburetor original spigot Black Racing
Dellorto PHBG 21mm DS carburetor original spigot Black Racing
    € 137,90
    Ex Tax: € 113,97
    Tomoshop A few left in stock A few left in stock
    Model: 20128
    Tomoshop price Without shipping costs. VAT info.
    Customer service

    Do you need some help or advice?

    Tomoshop info Check out our info center or contact us!

    Description

    Original Dellorto PHBG Black racing 21mm carburetor.

    • Connection diameter of the manifold 24mm
    • Connection diameter of the air filter 32mm
    • Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
    • Carburettors should always be cleaned before installation.
    • Cable choke control.

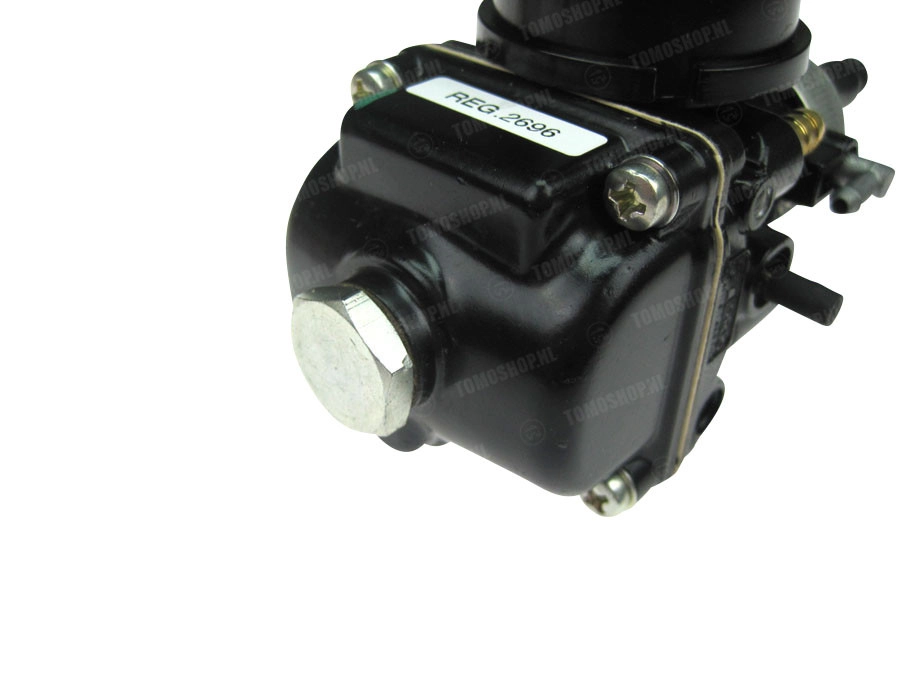

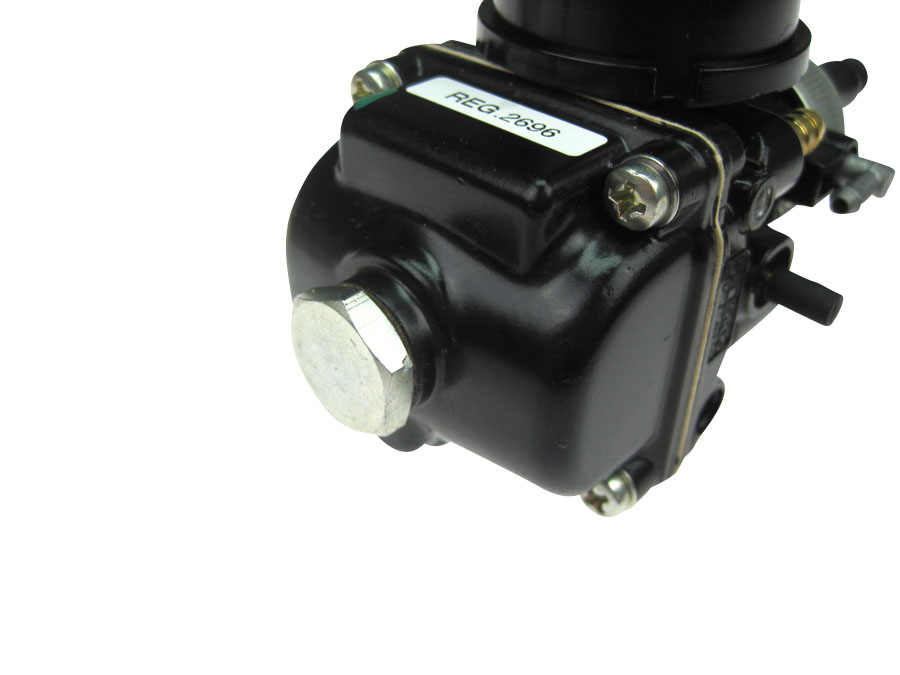

    • Fast nozzle exchange by the drain bolt on the float chamber.
    • Throttle drum cover is also screwable.
    • Rubber for connection is availble at the section replacement parts.
    • Insertion version
    • Dellorto number 2696

    Standard jetting

    • 40 Slide
    • W7 Needle
    • 262AU Atomiser
    • 92 Main jet
    • 50 Idle jet
    • 60 Choke jet
    • 9450.1 Float – 4.0 grams

    With a matching manifold applicable to various Tomos models:

    • Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.

    With a matching manifold also universally usable for:

    • Kreidler Florett  / RMC /  RM /  Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS /  Puch / Maxi / E50.
    View more Read more
    Brand: Dell’Orto
    Model: 20128
    EAN: 8718404016368
    MPN: 2696
    Category: Search by Tomos model
    Type product: Tomos Standard
    Type product: Engine parts
    Type product: Carburation
    Carburetor / sets
    Mounting type: Spigot
    Carburetor diameter: 19mm
    Weight: 500 gram

    Dell’Orto began its activity in 1933 with the manufacture of carburettors for motorbikes. A constant evolution that today makes it a modern and fully integrated company at production level, making technological research its strong point. Large range for vintage mopeds and therefore also for your Tomos like Dellorto SHA, Dellorto PHBG and Dellorto PHVA parts.
