Cooling fan case Tomos 2L / 3L cylinder case bolt set

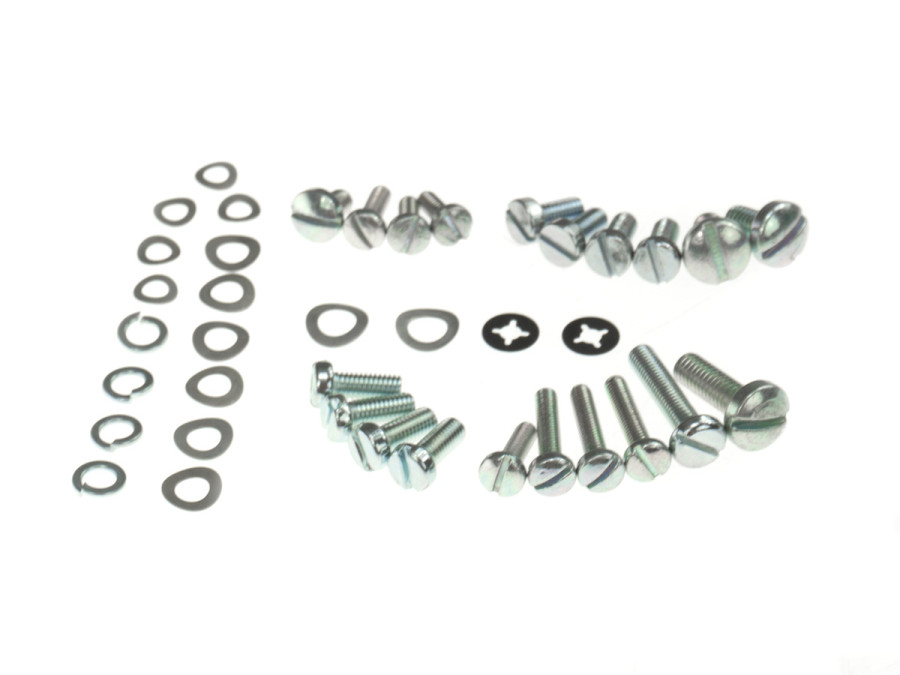

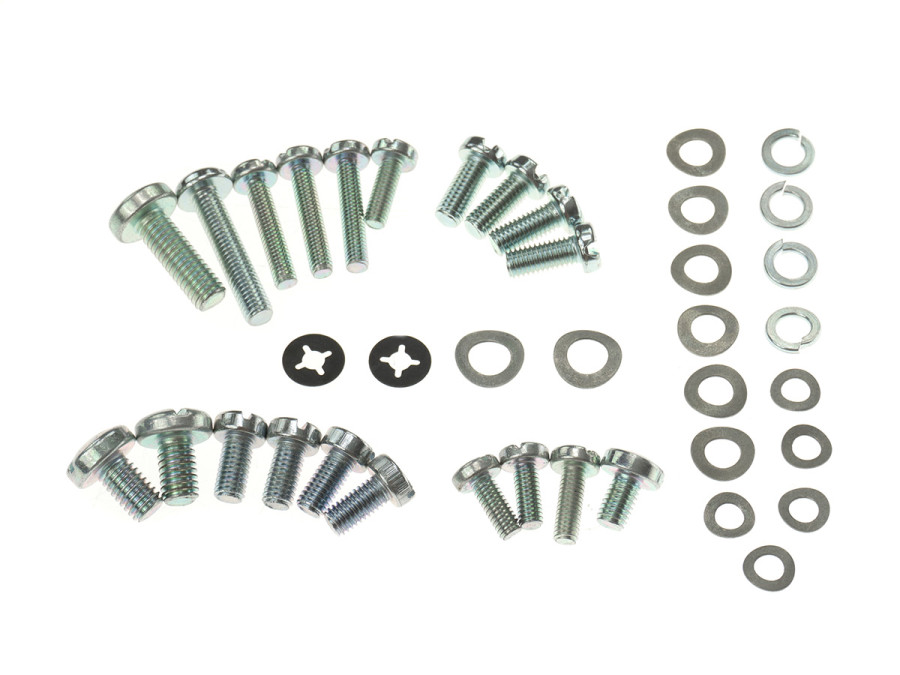

Cooling case bolt set

• Complete bolt set for mounting all cooling covers
• For models with forced cooling
• Tomos 2L / 3L / T14 / T12 etc.
• Puch MV50, DS50, VZ50, MC5
• Complete with instructions
• Set as original

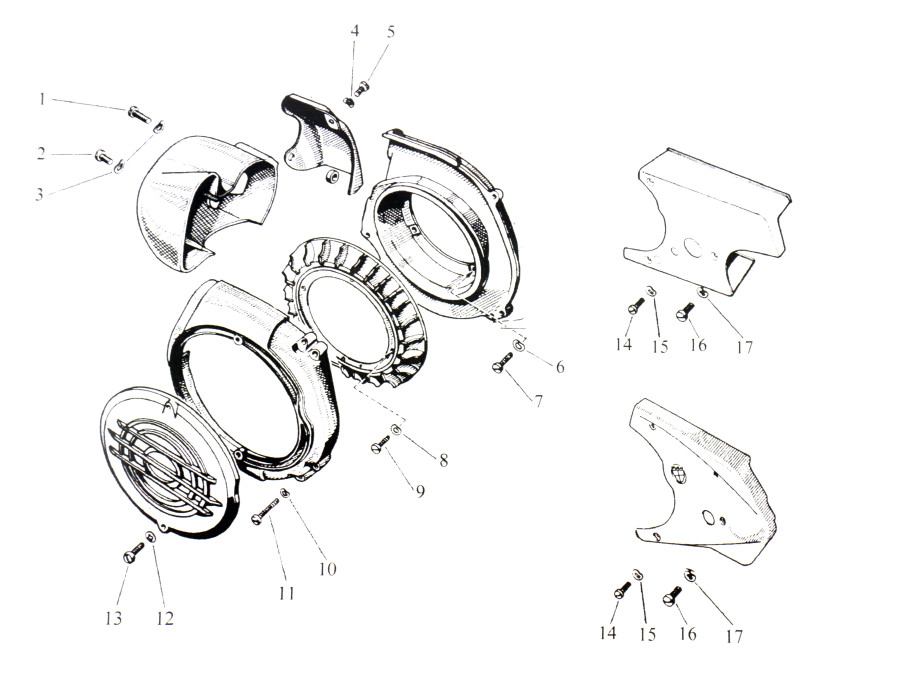

Screwset for fancovers

1. 1x Lens head screw M6x18 - cover - 900.1547 - DIN 85 - Only DS model
2. 2x Lens head screw M6x10 - blower hood - 900.1514 - DIN 85 - fan cooled
3. 2x Spring washer B6 - blower hood - 900.3213 - DIN 137A - fan cooled
4. 1x spring washer B5 - cover - 900.3205 - DIN 137A - only DS model
5. 1x lens head screw M5x8 - cover - 900.1501 - DIN 85 - only DS model
6. 4x spring ring B5 - blower base plate - 900.3218 - DIN 127B - fan cooled
7. 4x filister head screw M5x12 - blower base plate - 23099 - DIN 84 - fan cooled
8. 4x spring washer B5 - blower base plate - 900.3205 - DIN 137A - fan cooled
9. 4x fillister headscrew M5x10 - blower fan wheel - 1426 - DIN 84 - fan cooled
10. 3x spring washer B4 - blower housing - 900.3202 - DIN 137A - fan cooled
11. 3x lens head screw M4x20 - blower housing - 900.1520 - DIN 85 - fan cooled
12. 2x clamp disc 4 - blower grill - 900.3964 - 4mm - fan cooled
13. 2x lens head screw M4x10 - blower grill - 900.1543 - DIN 85 - fan cooled
14. 2x lens head screw M4x12 - fairing plate - 900.1506 - DIN 85 - fan cooled
15. 2x spring washer B4 - fairing plate - 900.3202 - DIN 137A - fan cooled
16. 1x lens head screw M5x25 - fairing plate - 900.1529 - DIN 85 - fan cooled
17. 1x spring washer B5 - fairing plate - 900.3205 - DIN 137A - fan cooled
