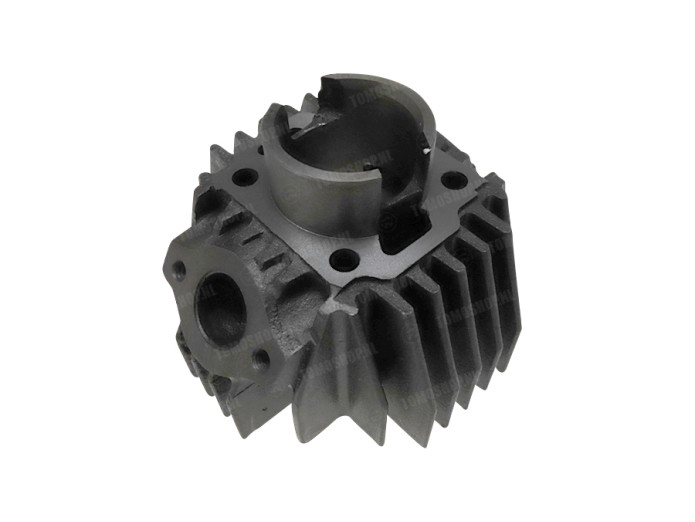

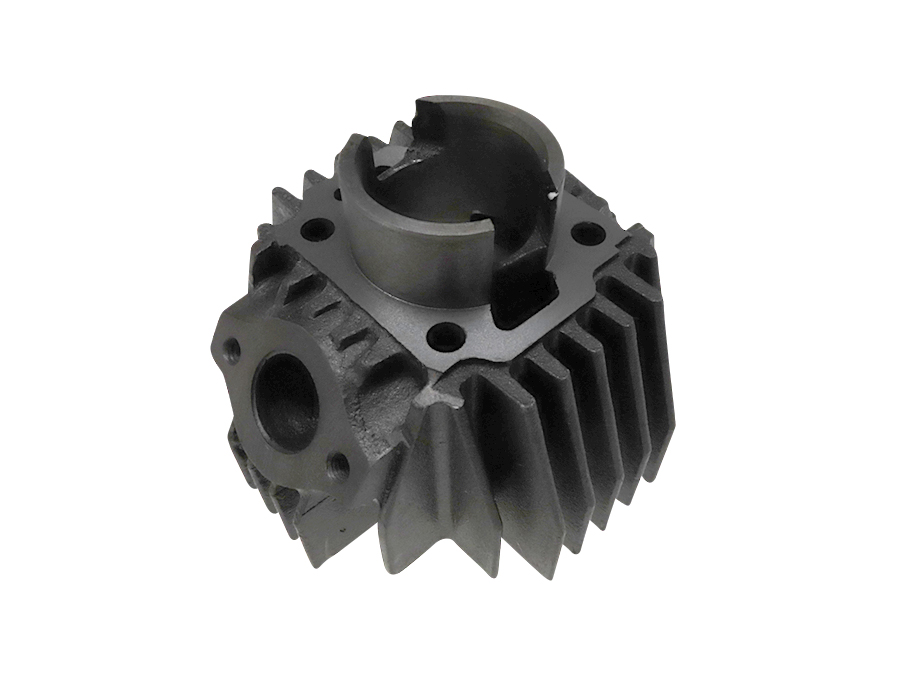

Cylinder Tomos A3 50cc cast iron egg-model (without piston)

Finally available! Replacement cylinder for Tomos models with the egg cylinder.

• 50cc / 38mm
• Cast iron replacement cylinder for original
• Cylinder base diameter: 48mm

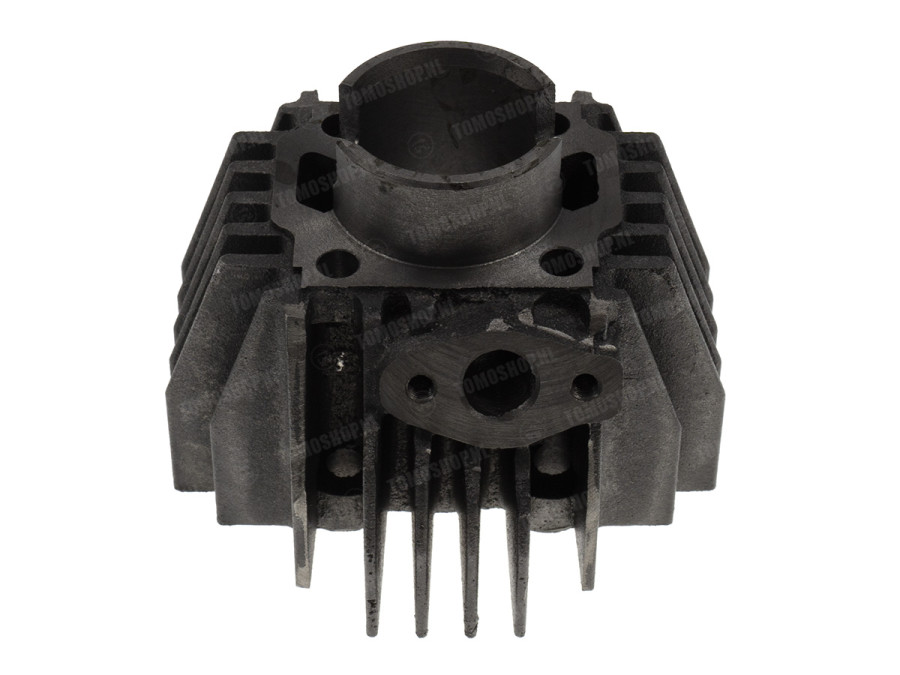

• Intake diameter: +/- 13mm


Note, without cylinder head, piston and gaskets set. Or order the set complete (see related products)

Before mounting

• We always recommend thoroughly inspecting and cleaning the cylinder before installation and slightly smoothing the ports in the cylinder with 1000-grit sandpaper to remove sharp edges. This significantly extends the lifespan of the cylinder/piston. You can also refine or optimize it with a file or a multi-tool (Dremel) for even better performance.

Dimensions cilinder:

• A: 7mm
• B: 44mm
• C: 6mm
• D: 68mm
• E: 14mm
• F: 32mm
