Cylinder Tomos A35 A52 50cc cast iron DMP with Meteor piston

€ 74,50

Ex Tax: € 61,57

Not in stock

Model: 10318ME

10318ME 10318ME 10318ME Meteor piston

https://www.tomoshop.nl/en-gb/cylinder-tomos-a35-a52-50cc-38mm-cast-iron-45-km-h-replica-with-meteor-piston-a-quality.html 2026-02-03

Without shipping costs. VAT info.

Do you need some help or advice?

Check out our info center or contact us!

Description

Replacement cylinder by DMP 45 km/h model with Meteor piston

Replica cylinder as original
Contains a 45 km/h 38mm Meteor pin 12 A-Quality piston with Caber piston rings, this is a A-quality part!
Material: Cast iron
Displacement: 50cc / 38mm
Fits i.a. A3 / A35

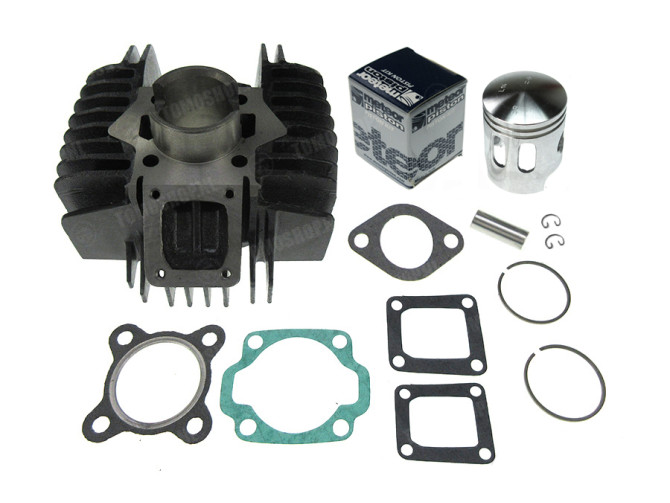

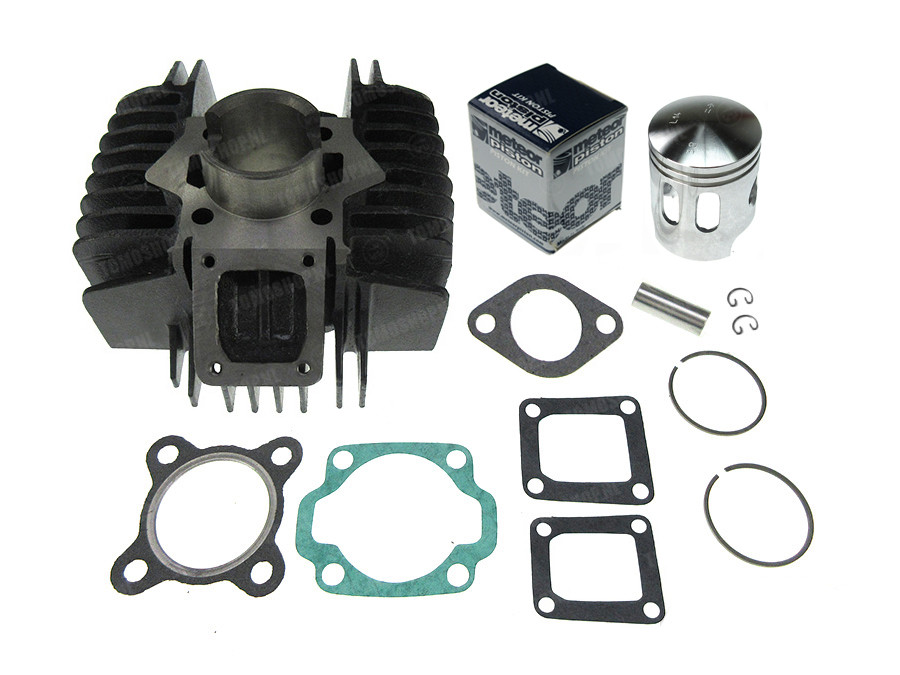

Piston is complete with Caber piston rings, clips and piston pin
With gasket set: 1x head gasket, 1x old model base gasket, 1x exhaust gasket and 2x reed valve gasket

Note:

Package also includes a 38mm piston (25 km/h)
It could be possible that you need to finish the reed valve port for the reed valve, this can be done with a file and / or multi tool!

Before mounting

We always recommend thoroughly inspecting and cleaning the cylinder before installation and slightly smoothing the ports in the cylinder with 1000-grit sandpaper to remove sharp edges. This significantly extends the lifespan of the cylinder/piston. You can also refine or optimize it with a file or a multi-tool (Dremel) for even better performance.

For Tomos A35 / A52 with reed valve cylinder

Tomos A35
Tomos Standard
Tomos Classic
Tomos Quadro
Tomos Luxe
Tomos Flexer / Sport'R
Tomos Pack'R
Tomos Youngst'R
Tomos Revival A35
Tomos Wizz'rd
Tomos Califone
Tomos Roadie

Brand:	Meteor piston
Model:	10318ME
Original Tomos number:	229290
EAN:	8718336015088
MPN:	PC1392
Category:	Engine parts
Type product:	Cylinder / head
Type product:	Cylinders
Cylinder / head
Cylinder diameter:	38mm
Cylinder Displacement:	50cc
Piston pin:	12
Weight:	3600 gram

Meteor Piston specialises in manufacturing aluminium alloy pistons and cast iron piston rings for a wide range of applications, including many classic mopeds and also Tomos. The aim has always been to provide high-end quality products, constantly moving towards cutting edge technologies to ensure the highest quality standards.
