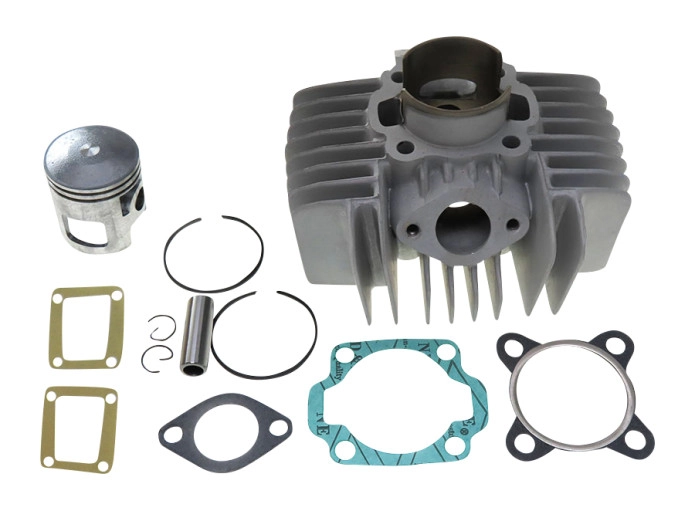

Cylinder Tomos A35 / A52 70cc (45mm) Alukit aluminium (pin 12)

New!! 45mm 70cc reed valve cylinder for Tomos A35 / A52

• Alukit Cilindri Alluminio

• Aluminium / Nicaseal
• With pin 12 piston
• With 1x head gasket, 1x base gasket, 1x exhaust gasket and 2x reed valve gasket
• Cylindersleeve outer diameter: 47.5mm

Before mounting

• We always recommend to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie

Dimensions cylinder:

• A: 7mm
• B: 44mm
• C: 6mm
• D: 67mm
• E: 23mm
• F: 42mm
• G: 32mm
• H: 39mm
• I: 35mm

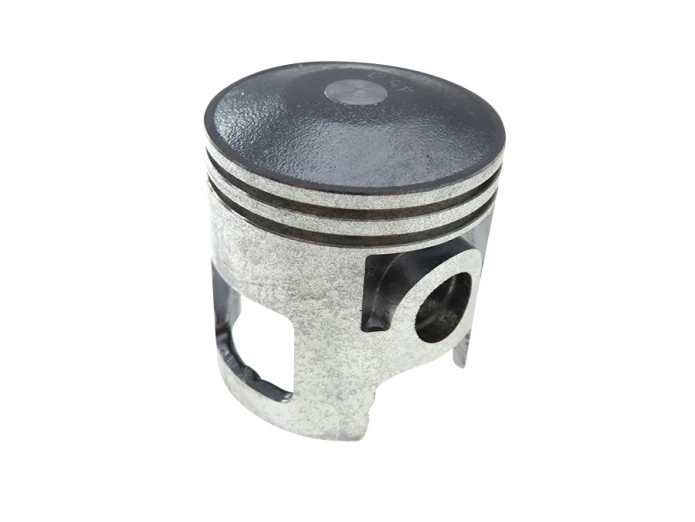

Dimensions piston:

• A: 4mm
• B: 22mm
• C: 23mm
• D: 12mm
• E: 22mm
• F: 17mm
• G: 6mm
• H: 21mm
