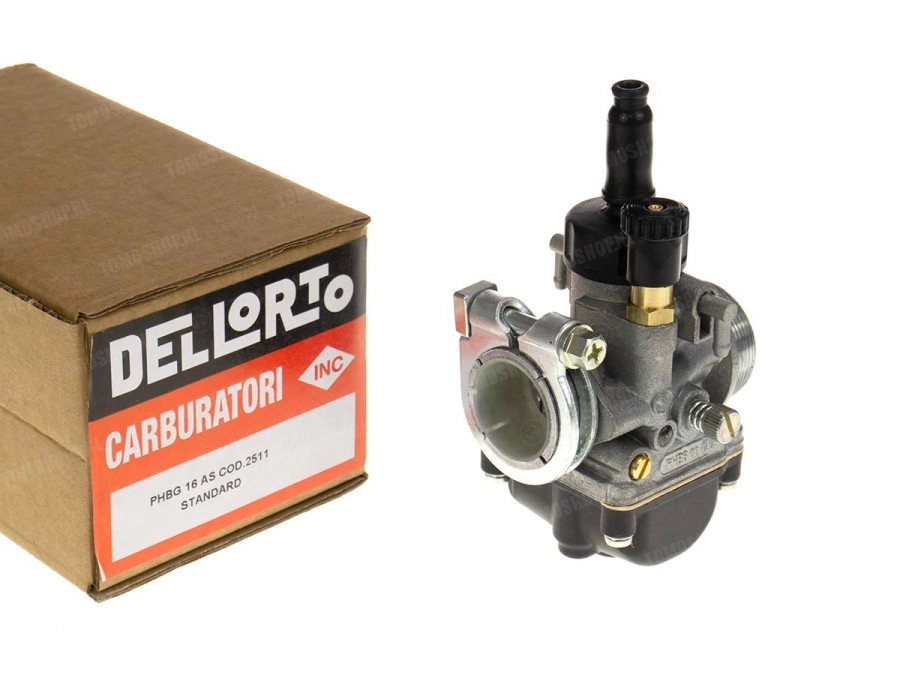

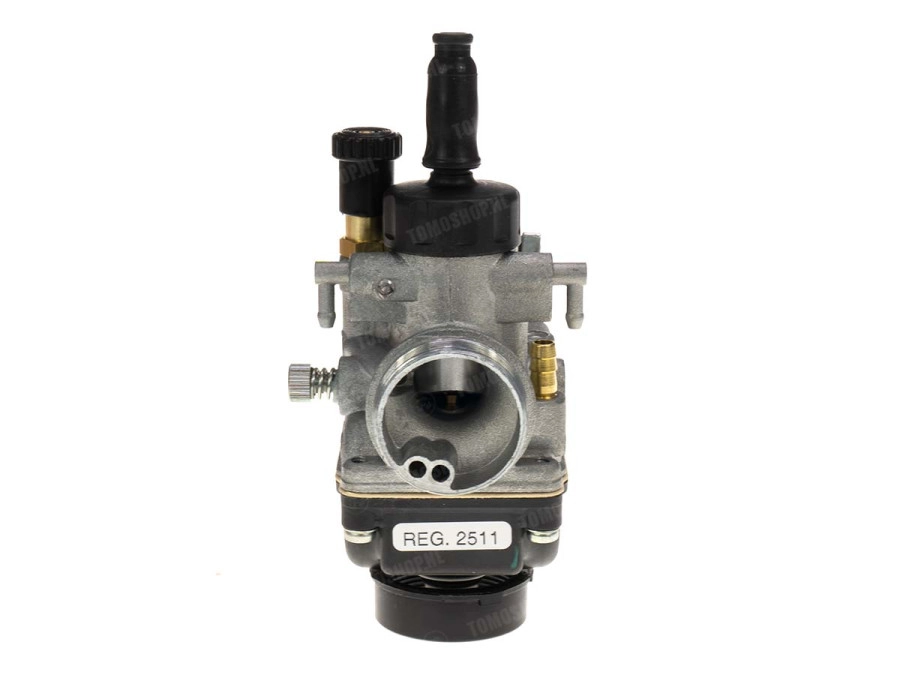

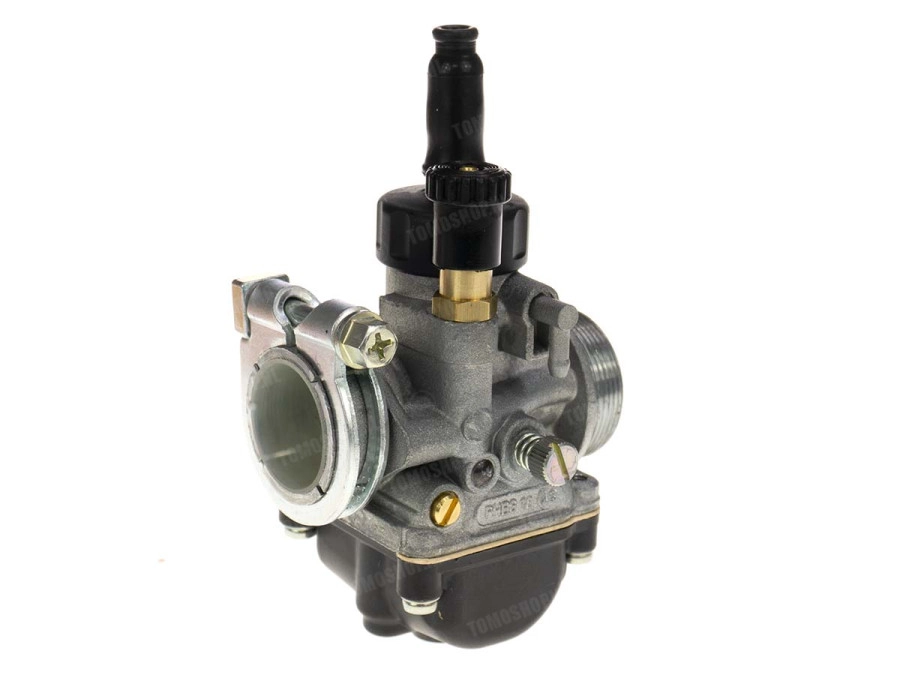

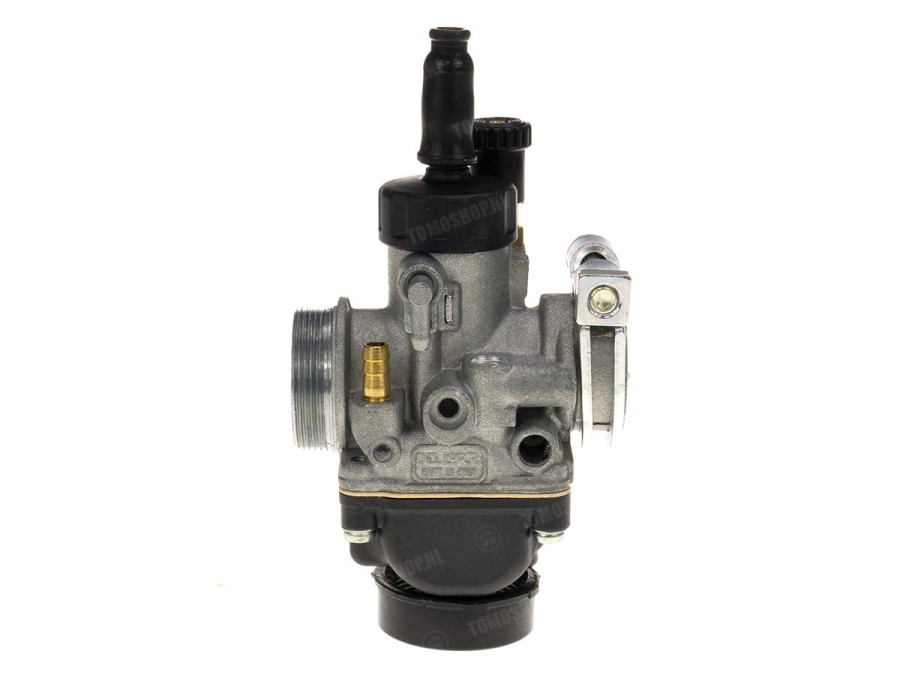

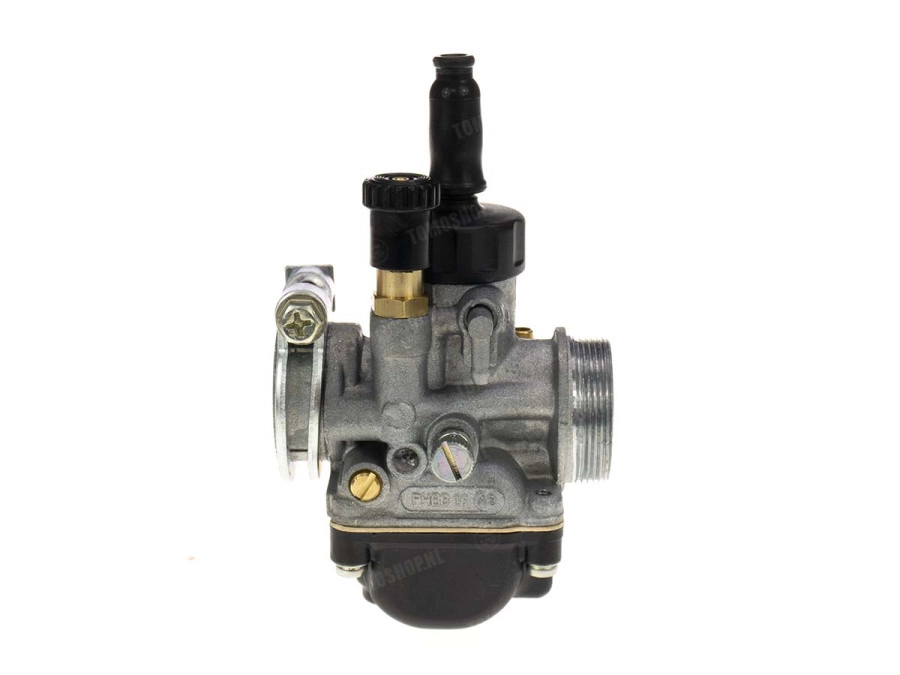

Dellorto PHBG 16mm AS carburetor original

Dellorto carburetor PHBG 16mm.

• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors are delivered with a 78 nozzle/jet.
• Carburettors should always be cleaned before installation.
• Hand choke control.
• Dellorto 2511

Standard specifications:

• W7 needle
• 74 main nozzle
• 262AU atomizer
• 50 Idle nozzle
• 55 Choke nozzle
• 9450.1 Float - 4.0 grams

With a matching manifold also universally usable for:

• Kreidler Florett  / RMC /  RM /  Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS /  Puch / Maxi / E50.
