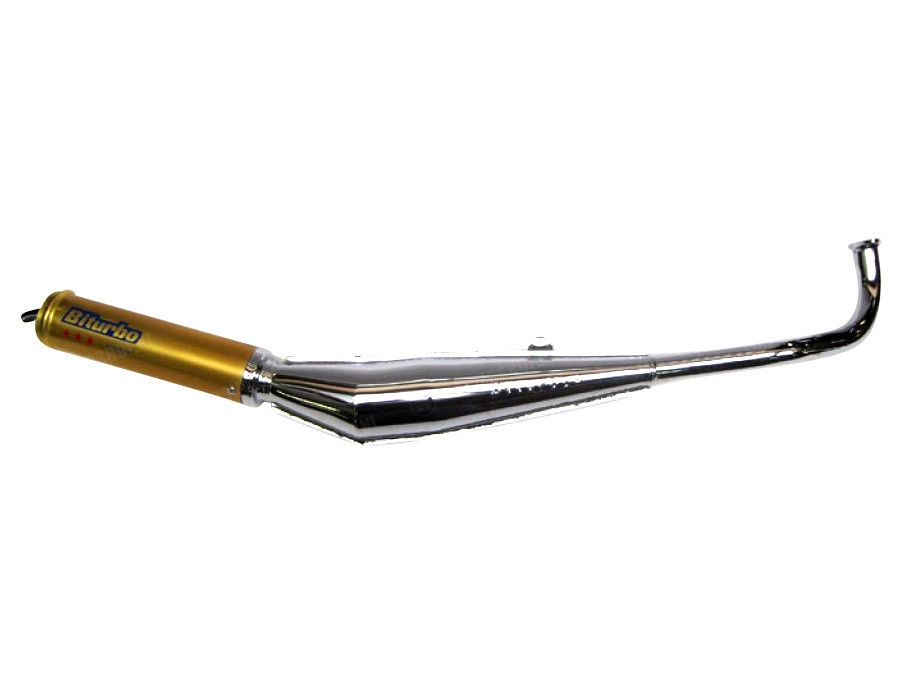

Exhaust Tomos A3 / A35 28mm Biturbo Gold

Exhaust Biturbo.

• Chrome, Alu silencer.
• Tomos A3 / A35 / Standard / Quadro / Flexer / Luxe / Wizz'rd / Taxxity / Califone / Limited
• 28mm outer diameter manifold

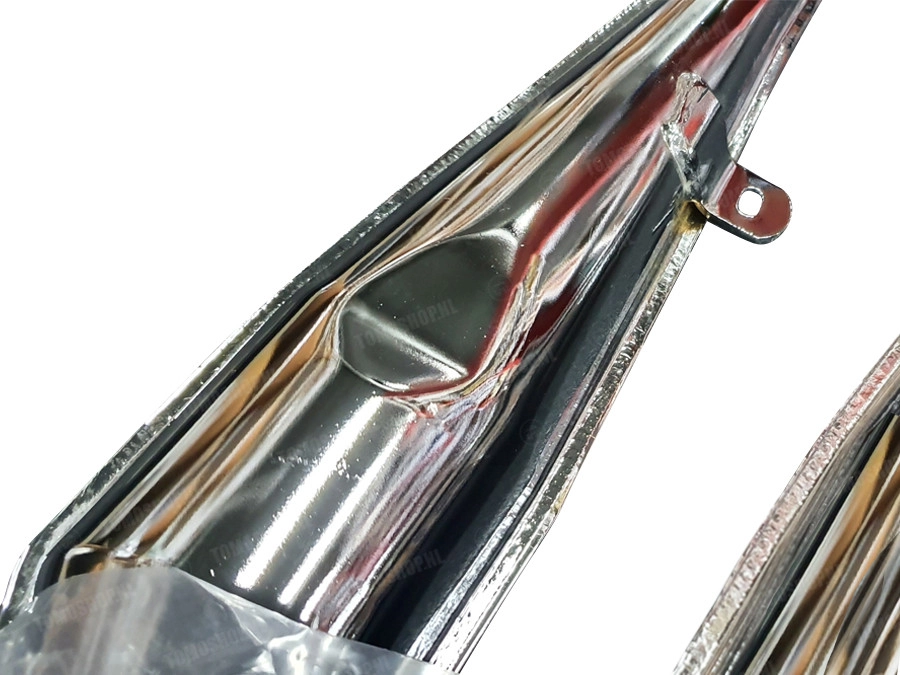

• The 'dent' in the silencer is not a dent, this is normal!

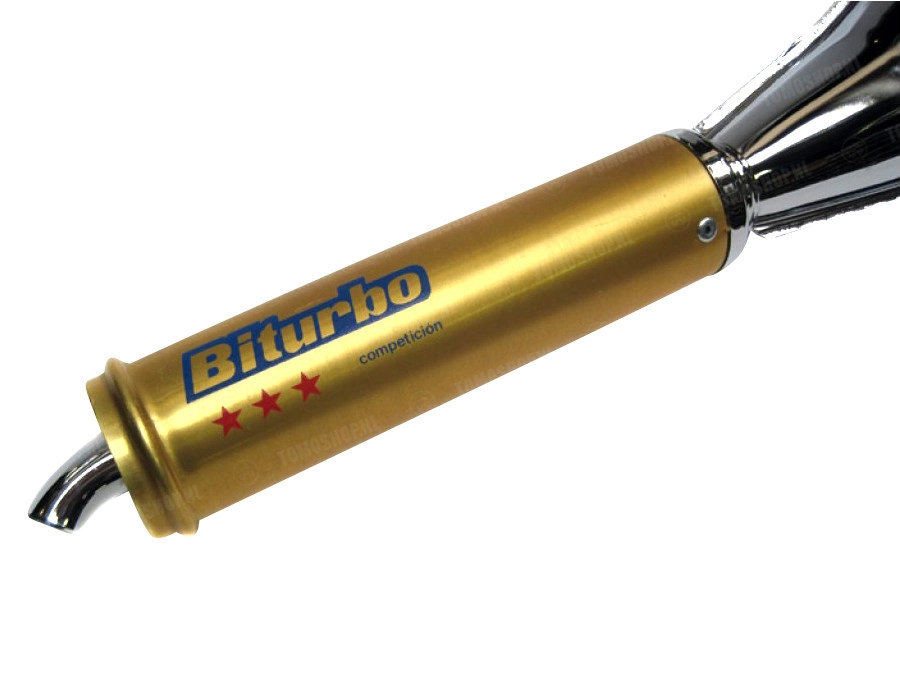

• The gold damper is made of raw aluminium, so it may have scratches!

• Tip: Mount the exhaust with a silent rubber. When there is a lot of vibration, the rivets in the aluminium silencer can loose or the silencer can break.
• Exhaust mounting to frame Euro1 model, do you have a frame mounting with 2 holes? Order a Euro2 exhaust bracket along (see related products)


Tips:

• Use our long brass M6 nuts in combination with hardened studs (see related products). This so you can easily and fully tighten the exhaust flange. Brass is also softer than steel, so it will not seize.
• Always use a new exhaust gasket when fitting an exhaust

When using all exhausts, black painted, chrome and blanc exhausts, heat build-up at the exhaust manifold can cause the following:

• At black outlets the paint can dissolve a little.
• Chrome and blanc exhaust manifolds may discolour

If the nozzle is too small or if the ignition is set incorrectly, the exhaust port becomes very hot and discoloring and dissolve of the paint on the exhaust manifold will occur faster than a perfectly adjusted engine. We give no guarantee on discoloration or solving of the paint on the exhaust manifold!

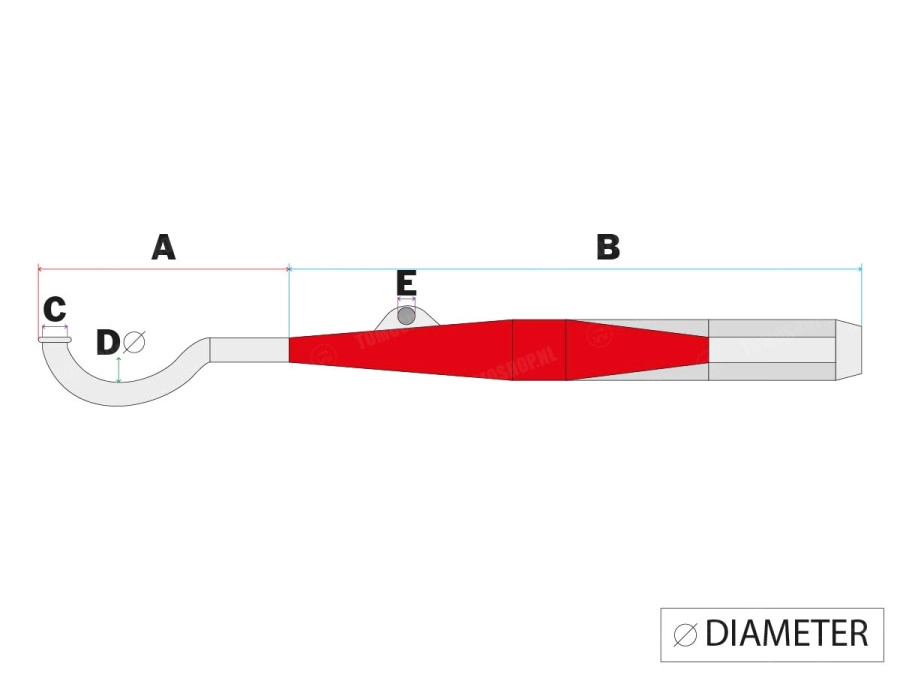

Dimensions:

• A: 290mm
• B: 660mm
• C: 24mm
• D: 28mm
• E: 5mm
