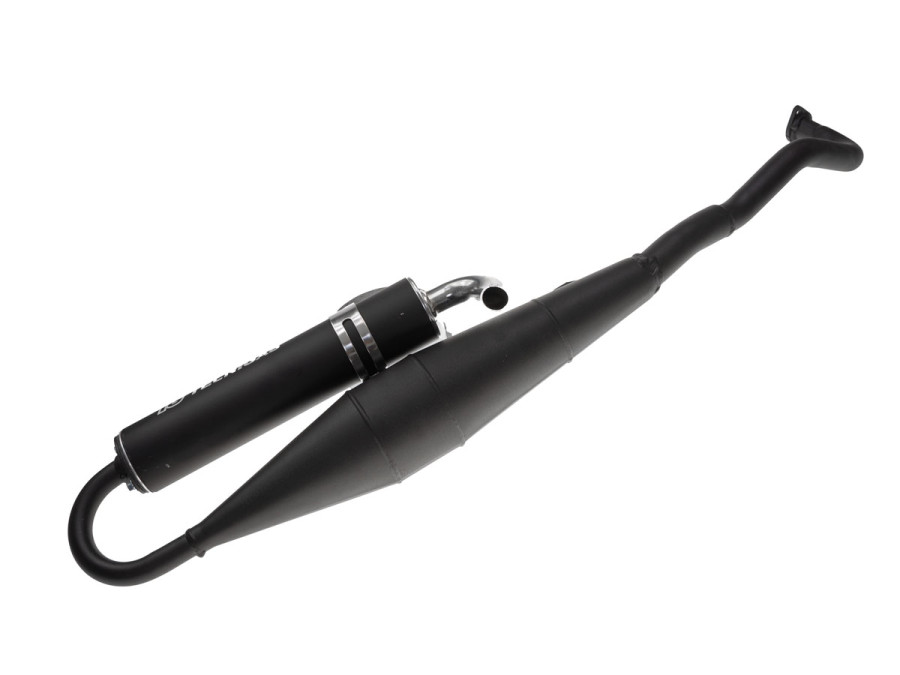

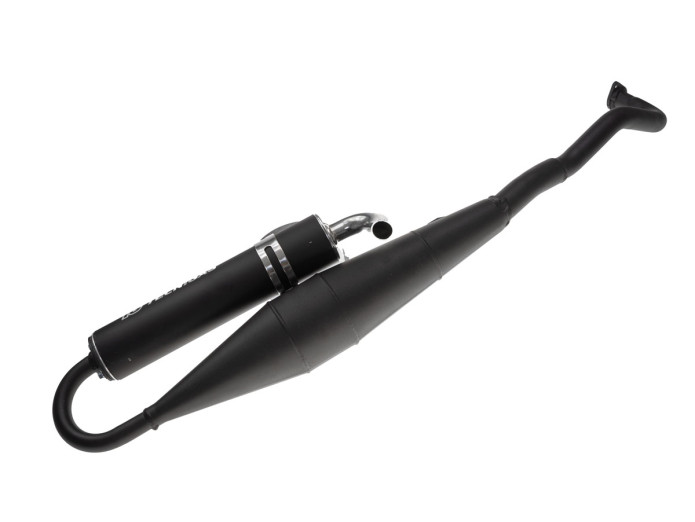

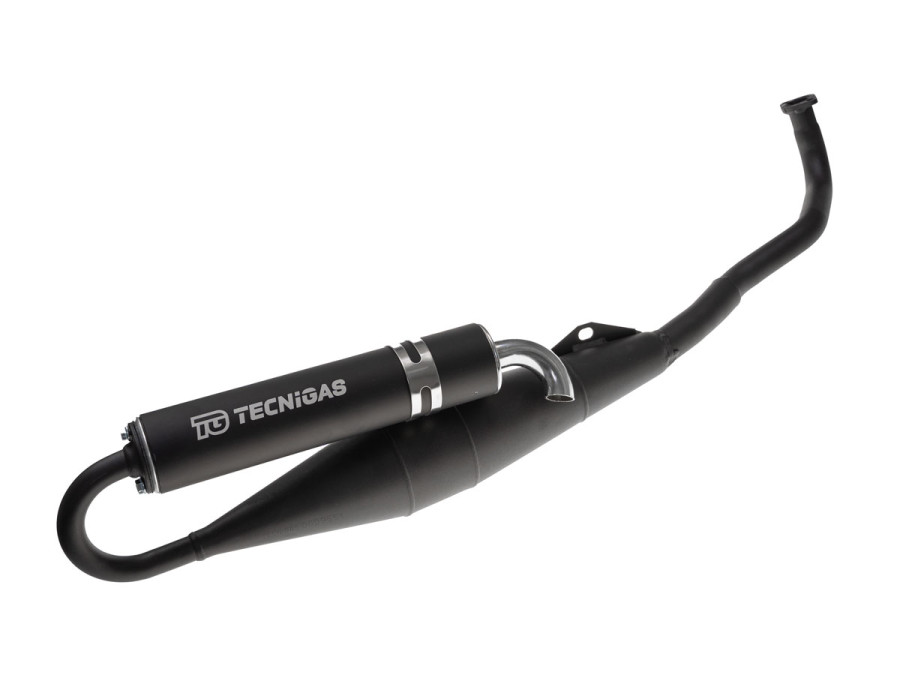

Exhaust Tomos A3 / A35 28mm Tecnigas Next R black - black edition

The populair Tecnigas Next R exhaust, black edition

• Tomos A3 / A35 / Standard / Quadro / Flexer / Luxe / Wizz'rd / Taxxity / Califone / Limited / various models

• Special black edition, with heat-resistant coating

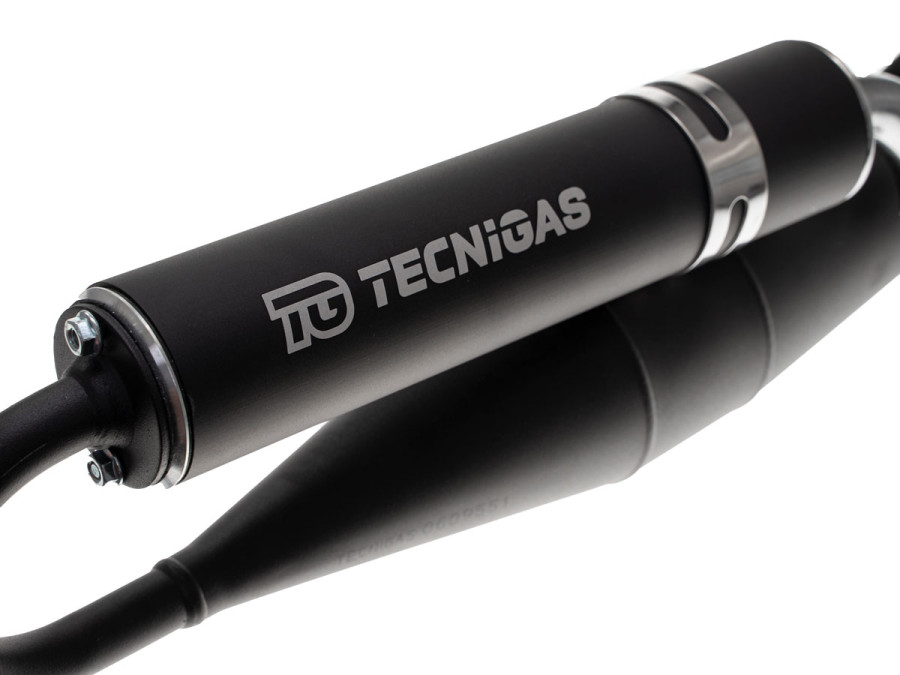

• With black silencer

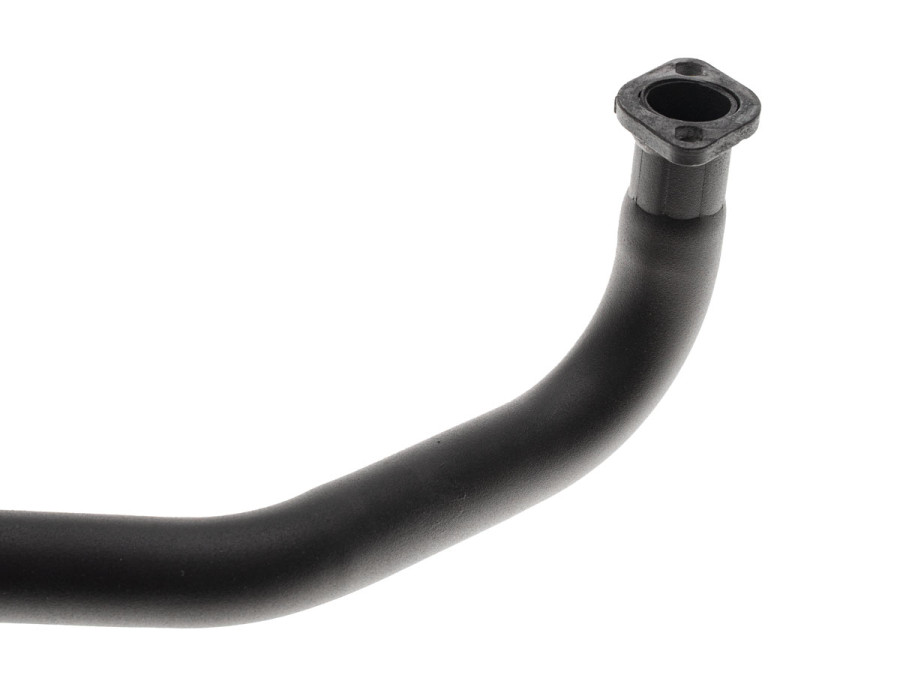

• 28mm outer diameter manifold
• Tecnigas number 06.09.551R + 06.09.551Rplus

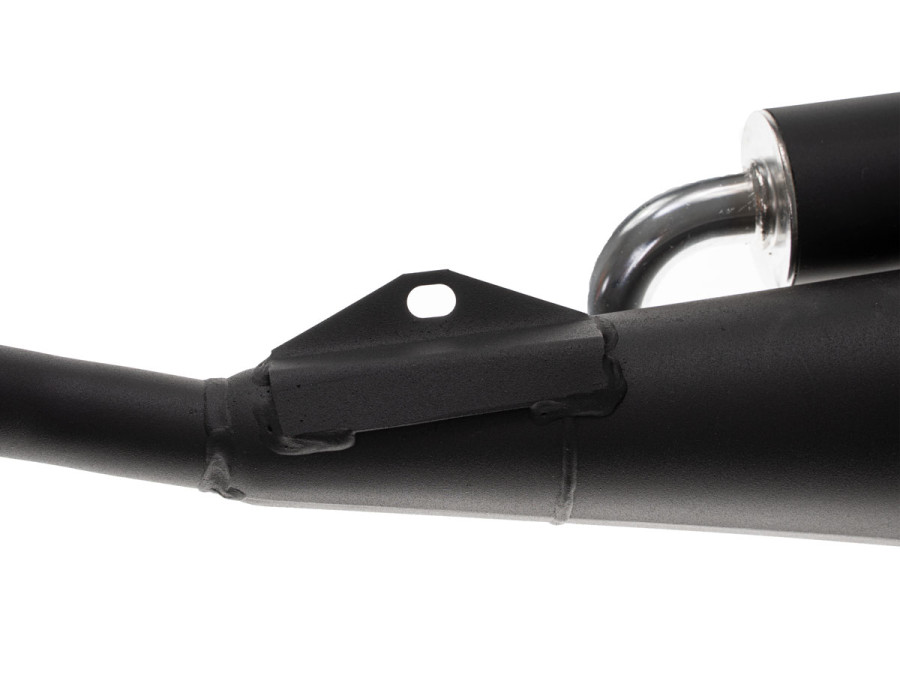

• Exhaust mounting to frame Euro1 model, do you have a frame mounting with 2 holes? Order a Euro2 exhaust bracket along (see related products)
• Also suitable for Tomos models with pedals

Note:

• Be careful when mounting, the coating could damage
• Small scratches are possible.


Tips:

• Use our long brass M6 nuts in combination with hardened studs (see related products). This so you can easily and fully tighten the exhaust flange. Brass is also softer than steel, so it will not seize.
• Always use a new exhaust gasket when fitting an exhaust

When using all exhausts, black painted, chrome and blanc exhausts, heat build-up at the exhaust manifold can cause the following:

• At black outlets the paint can dissolve a little.
• Chrome and blanc exhaust manifolds may discolour

If the nozzle is too small or if the ignition is set incorrectly, the exhaust port becomes very hot and discoloring and dissolve of the paint on the exhaust manifold will occur faster than a perfectly adjusted engine. We give no guarantee on discoloration or solving of the paint on the exhaust manifold!

Dimensions:

• A: 320mm
• B: 530mm
• C: 23mm
• D: 28mm
• E: 10mm
