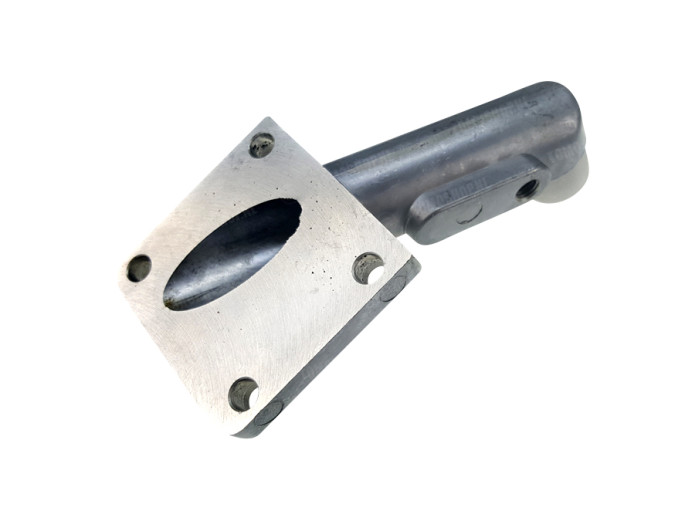

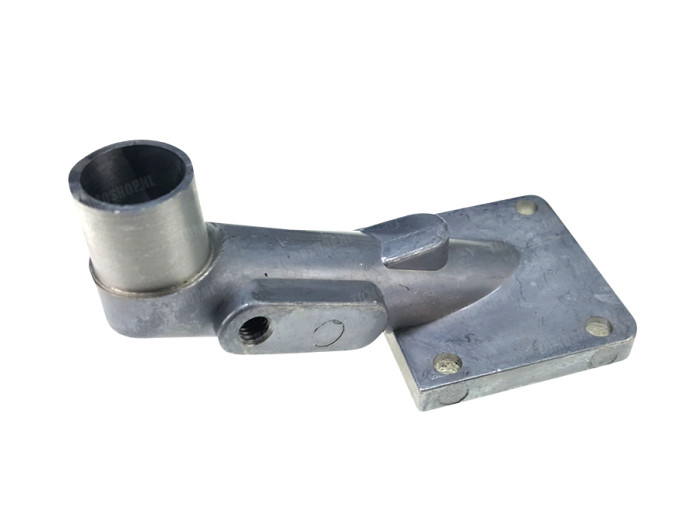

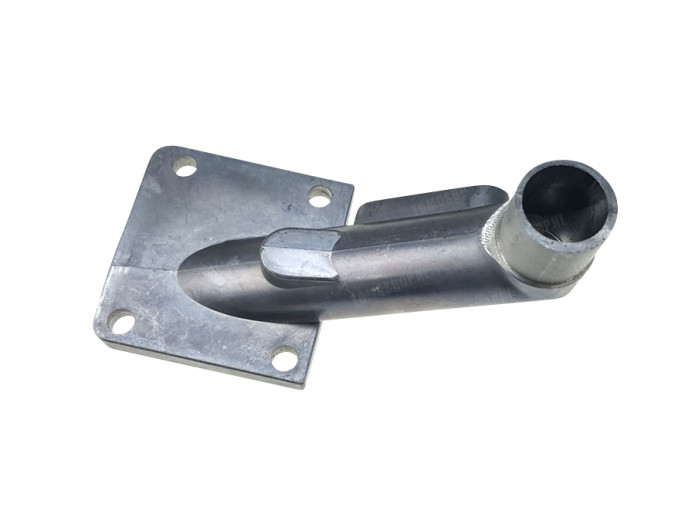

Manifold Tomos A35 15mm Dellorto SHA carburetor

Manifold 15mm for Dellorto SHA carburetors A35

• Outer diameter manifold 18mm
• Inner diameter manifold +/- 14.5mm till 15mm
• For Dellorto SHA 14/9, 14/12, 15/15 and 16/16
• Model has an oil pump connection
• Manifold for mounting carburettor right beside frame


Note:

• Always measure the bushing of your carburetor. For Dellorto SHA 14/9, 14/12, 15/15 and 16/16.  A SHA 14/9, 14/12, 15/15 has an 18mm connection diameter. A SHA 16/16 has an 19mm connection diameter. You have to order our nylon bush 21mm > 18mm to use this manifold for the SHA 16/16 manifold!
• A manifold for models without oil pump doesn't exist. If you need it without having a oil pump, no problem. You can easily screw a M6x10 bolt in the hole. See related products. You can easily order it together with the manifold at the options.
• Don't forget to order new reed valve gaskets

For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie
• Also for universal use

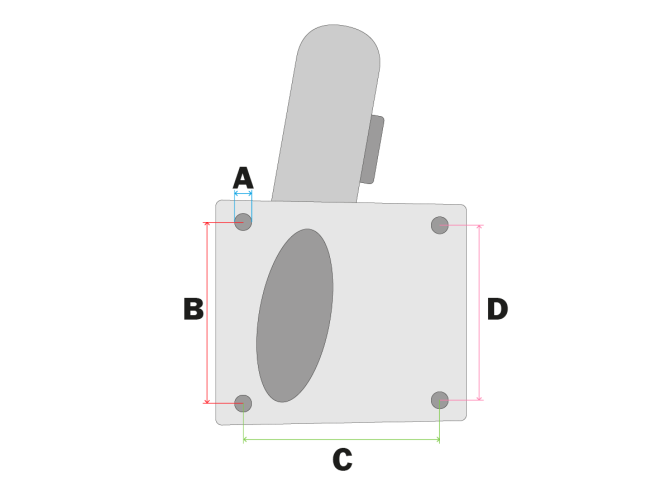

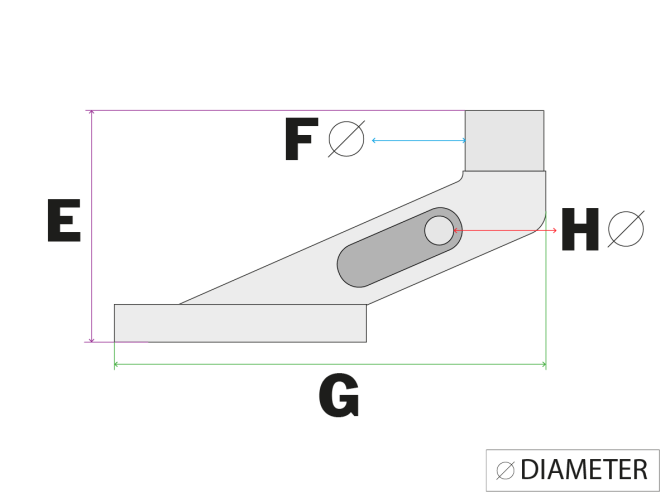

Dimensions:

• A: 5mm
• B: 36mm
• C: 39mm
• D: 32mm
• E: 52mm
• F: 18mm
• G: 99mm
• H: M6
