Reed valve Tomos A35 / A52 intake manifold base plate 19mm stainless steel 6mm

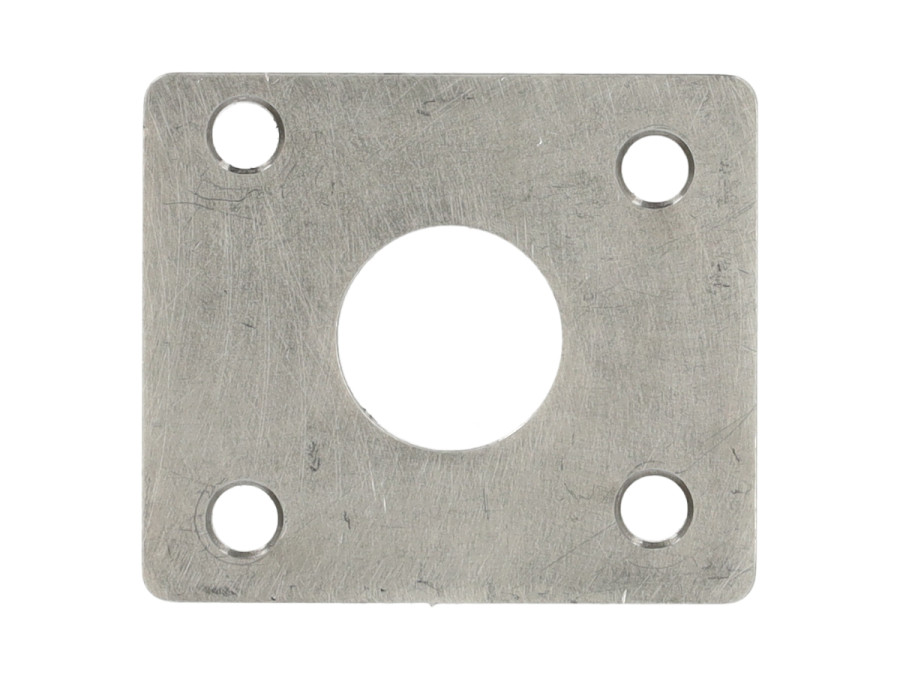

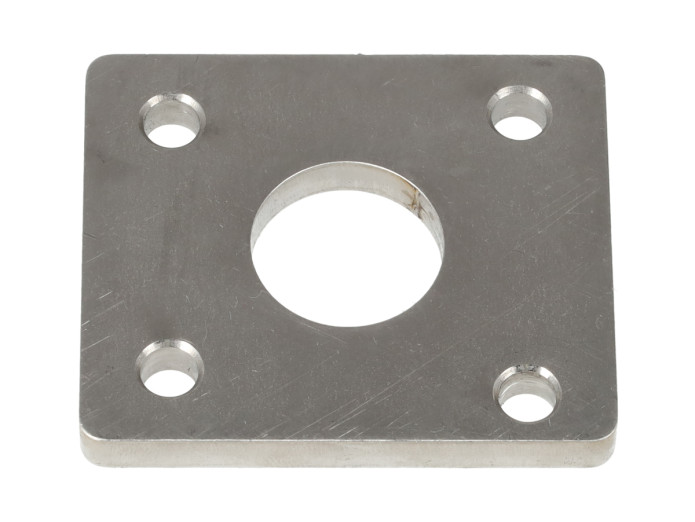

Stainless Steel Intake Manifold Base Plate

This plate can be used as a base to fabricate your own intake manifold for a Tomos A35 / A52 cylinder. The base material is 6 mm thick stainless steel, providing a solid foundation that helps prevent warping after welding work.

• Material: Stainless steel (RVS)
• Thickness: 6 mm
• Hole diameter: 19mm
• CNC cut

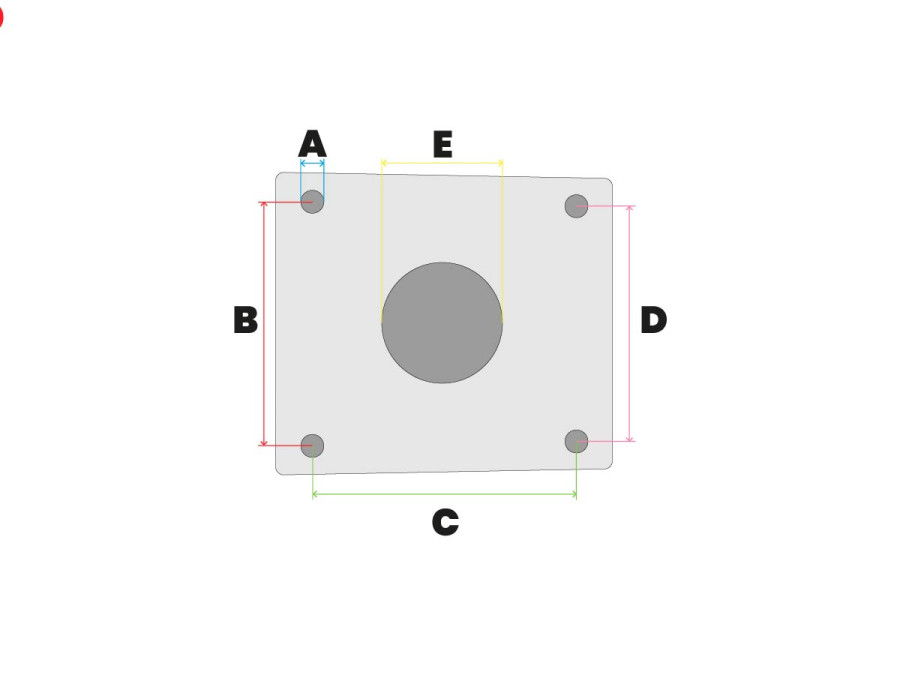

Dimensions:

• A: 6mm
• B: 36mm
• C: 39mm
• D: 32mm
• E: 19mm
