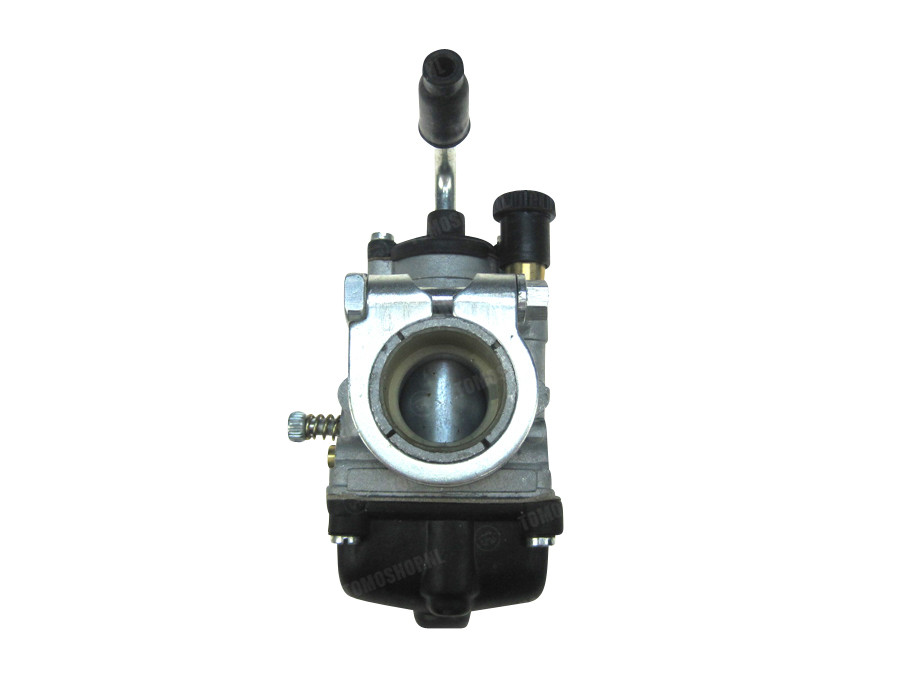

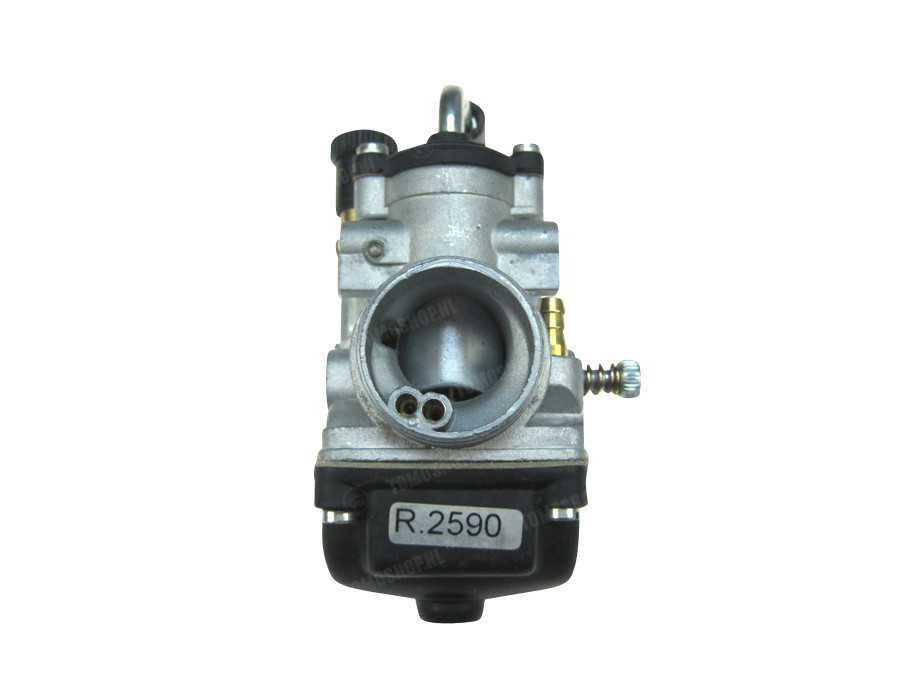

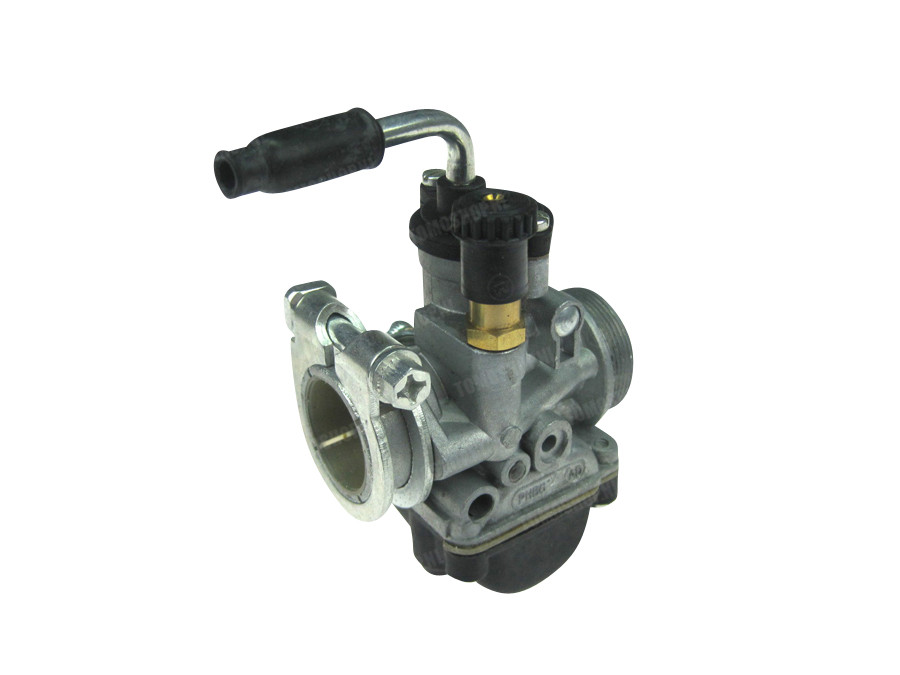

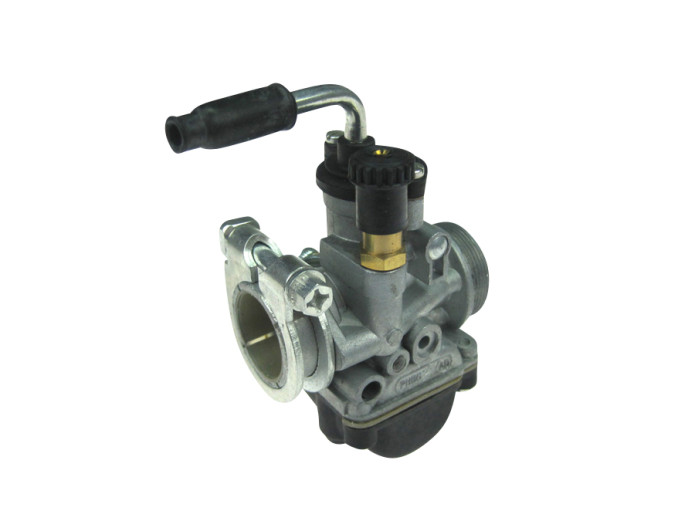

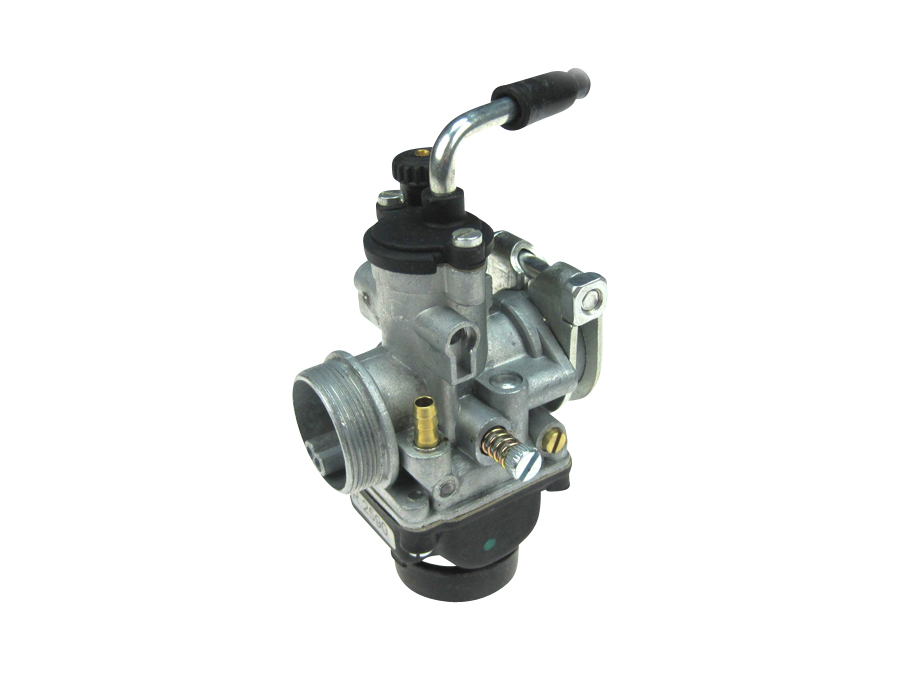

PHBG carburetor 21mm
- Model as Dellorto PHBG, very good replica.
- Hand choke
- Connection diameter of the manifold 24mm
- Connection diameter of the air filter 32mm
- Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
- Carburettors are delivered with a blanc nozzle/jet.
- Carburettors should always be cleaned before installation.
Note:
- Do not over-tighten the carburettor clamp!
- The float box is fixed with 4 bolts, 3 long and 1 short. Always ensure that you always place the short bolt on the corner of the air adjustment screw! If you screw in a long bolt here, it will hit the air adjustment screw and block it!
- The jet that is mounted in the carburettor / set is blank and different for each batch. (The manufacturer does this because they cannot know on which engine / setup this carburettor will be mounted). It is therefore highly advisable to order a jet-set so that you can always achieve maximum adjustment.
With a matching manifold applicable to various Tomos models:
- Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.
With a matching manifold also universally usable for:
- Kreidler Florett / RMC / RM / Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS / Puch / Maxi / E50.
