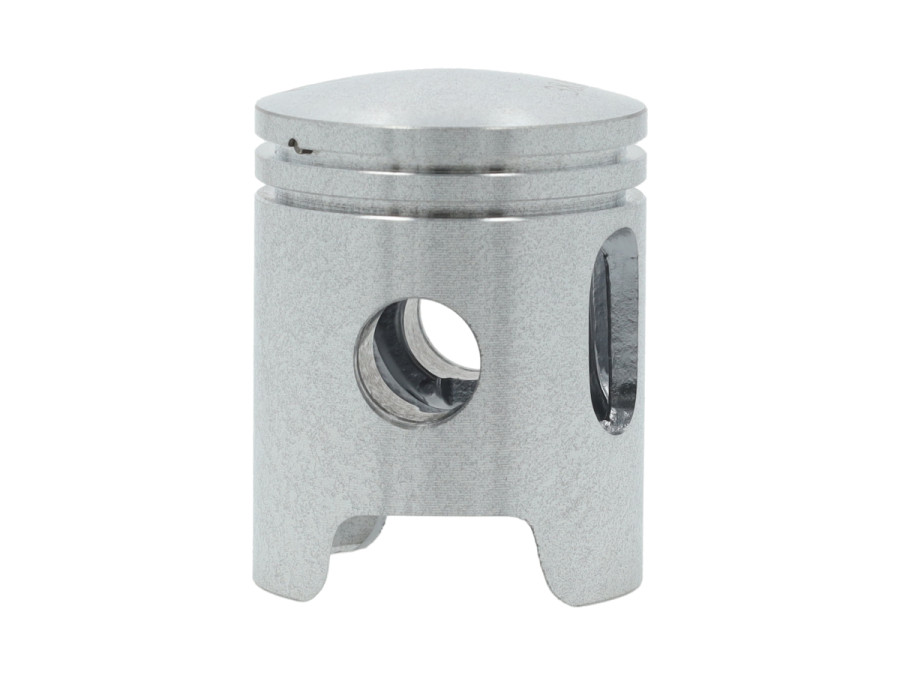

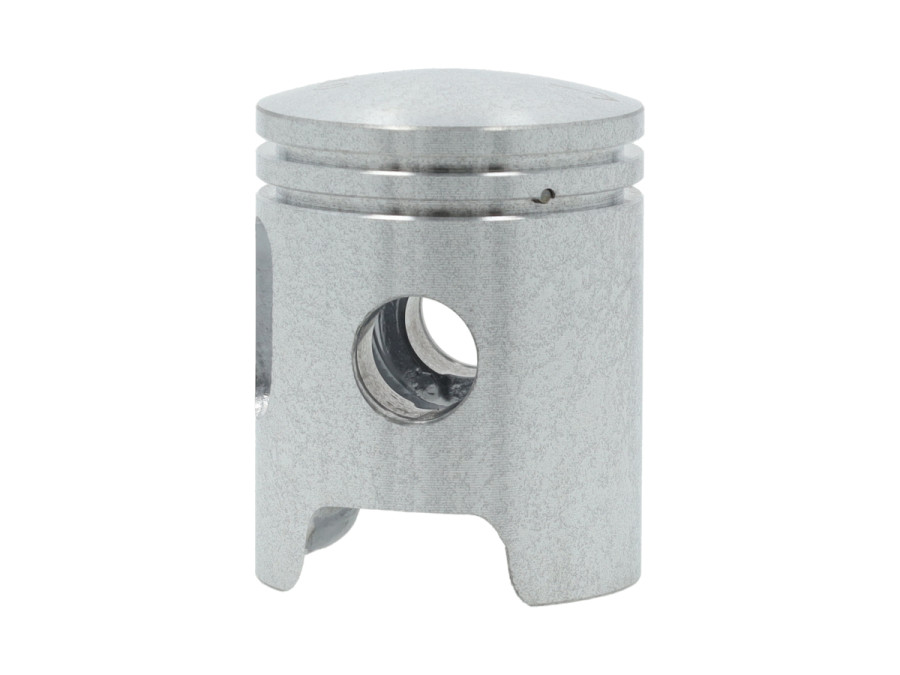

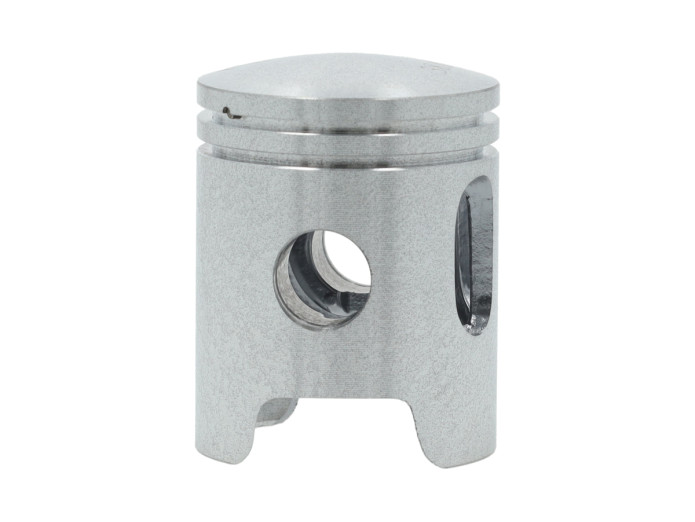

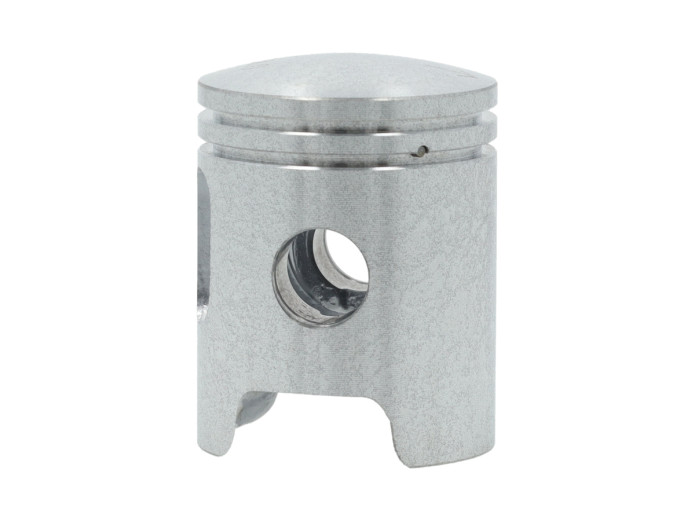

Piston 50cc Tomos A35 / A52 replica 45 km/h+

Piston 50cc 38mm pin 12 Tomos A35 (38x1.5 C) replica 45 km/h+

• 50cc
• 38.00mm

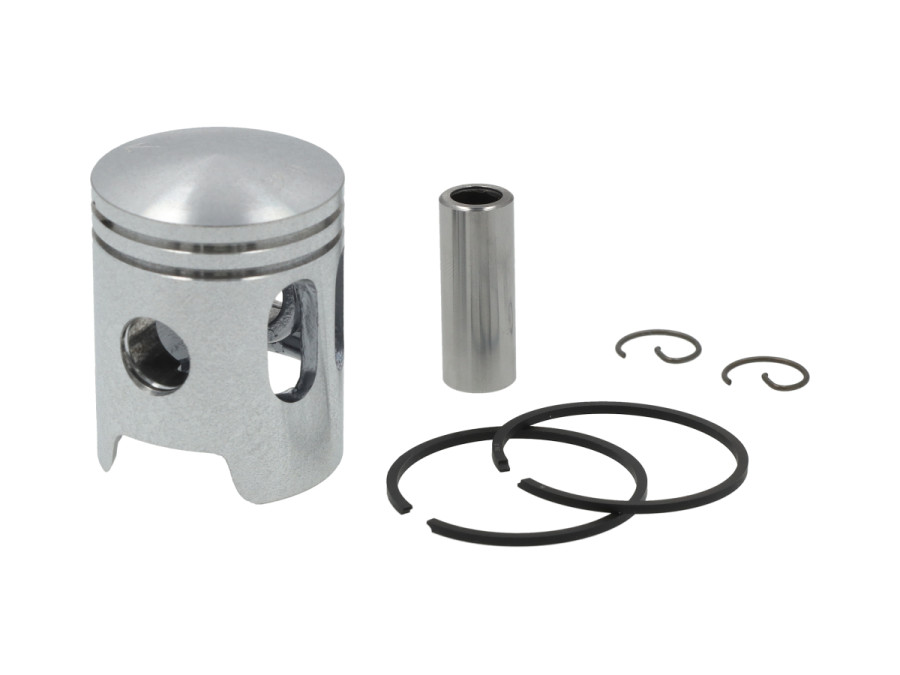

• Complete with piston rings, piston pin 12mm and piston pin clips (38x1.5 C)
• Replica
• Replacement piston for a reed valve cylinder, both original and DMP cylinders.
• Fits 25 km/h and 45 km/h cylinders.
• Replace this reed valve piston for your normal piston to get extra torque and top speed!
• Point the arrow towards the exhaust port
• Original Tomos number: 227868/1

Do you want to convert your 25 km/h Tomos to a 45 km/h Tomos? Read this page to find out the differences.

For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie

Dimensions:

• A: 4mm
• B: 22mm
• C: 24mm
• D: 12mm
