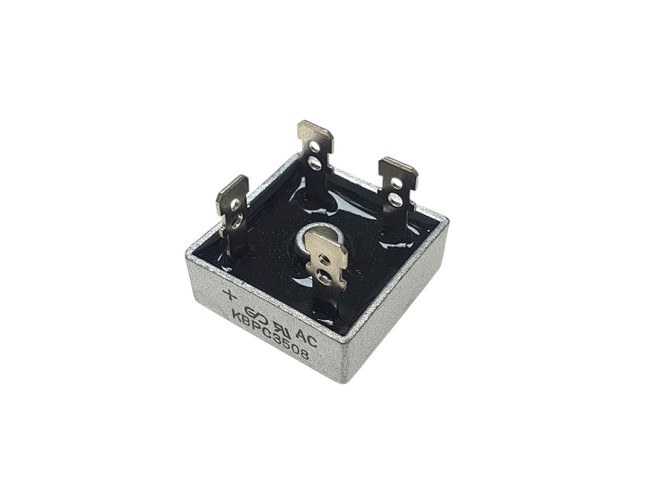

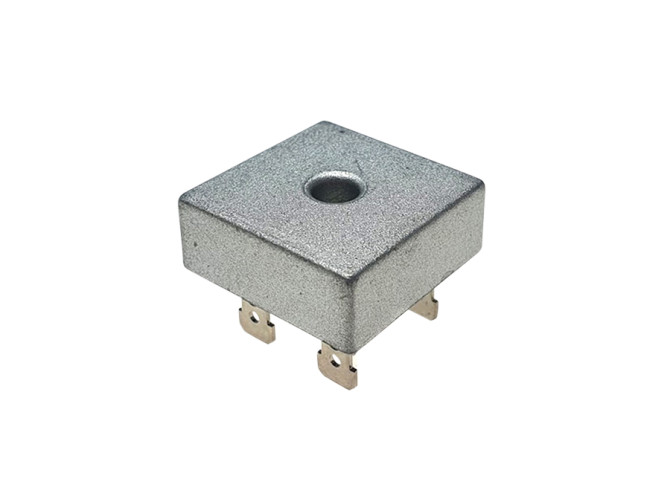

Rectifier universal (AC > DC) LED on Tomos KBPC3508

Rectifier universal (AC > DC) LED on Tomos KBPC3508

• Use this rectifier when using LED bulbs
• Universal rectifier to convert alternating current (AC) into direct current (DC).
• Type KBPC3508
• Ifsm peak current): 400A
• Vf (forward voltage): 1.1V max.
• Vrrm (reverse voltage): 800V max.
• Ir (reverse current): 10µA
• Io (rectified current): 35A max.

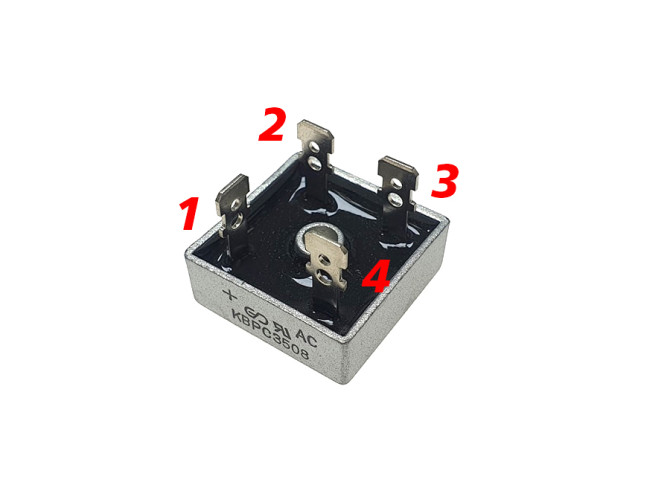

How to connect:

1. Power supply to lamp/horn/battery (DC voltage)
2. Power supply from the voltage regulator (AC voltage)
3. Min wire ( this is fitted to the minus of the lights/battery or horn)
4. Ground wire (to the frame)

Universal use for various brands 2-stroke mopeds, like:

• Tomos S1 / S25 / A3 / A35 / Standard / Classic / Flexer / Pack'R / Quadro / Wizz'rd / Califone / Youngst'R
• Tomos A55 / Revival / Streetmate / Roadie / Funtastic / Fun Sport R
• Tomos 2L / 3L / 4L / APN-4 / ATX / NTX
• Puch Maxi S / Maxi N / Maxi K / Maxi P / X20 / X30 / Korado / Manet / KTM hobby
• Puch MV / MS / VS / DS / VZ / MC / Monza / Jet / M50 / Magnum X
• KTM Hobby

• Yamaha FS1 / RD
• Vespa
• Kreidler
• Zündapp
• Honda Camino
• Gilera Citta
• Batavus
• Garelli
• Solex
• Hercules
• Derbi
• Motobécane
