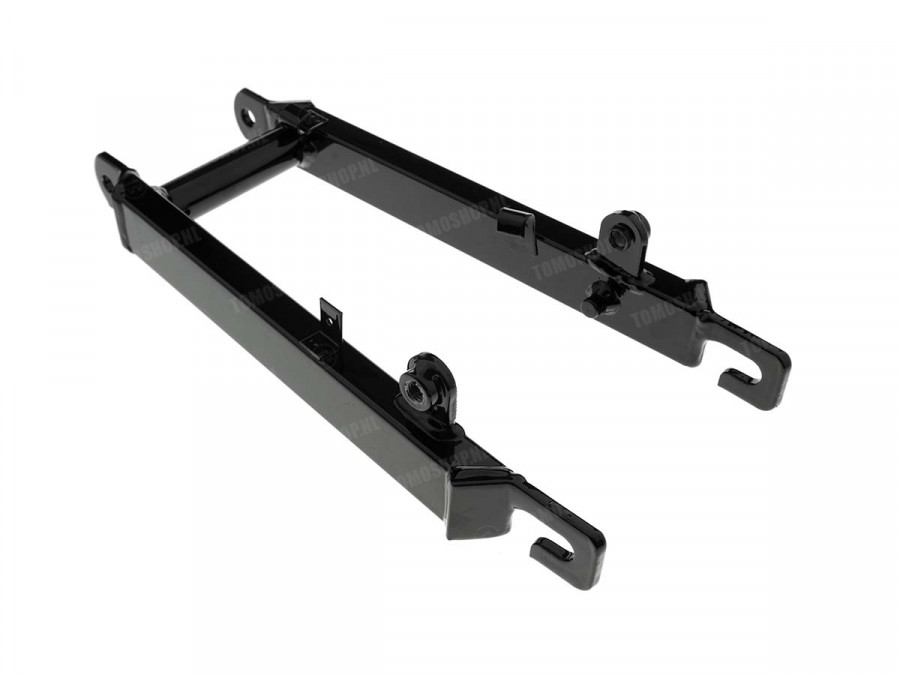

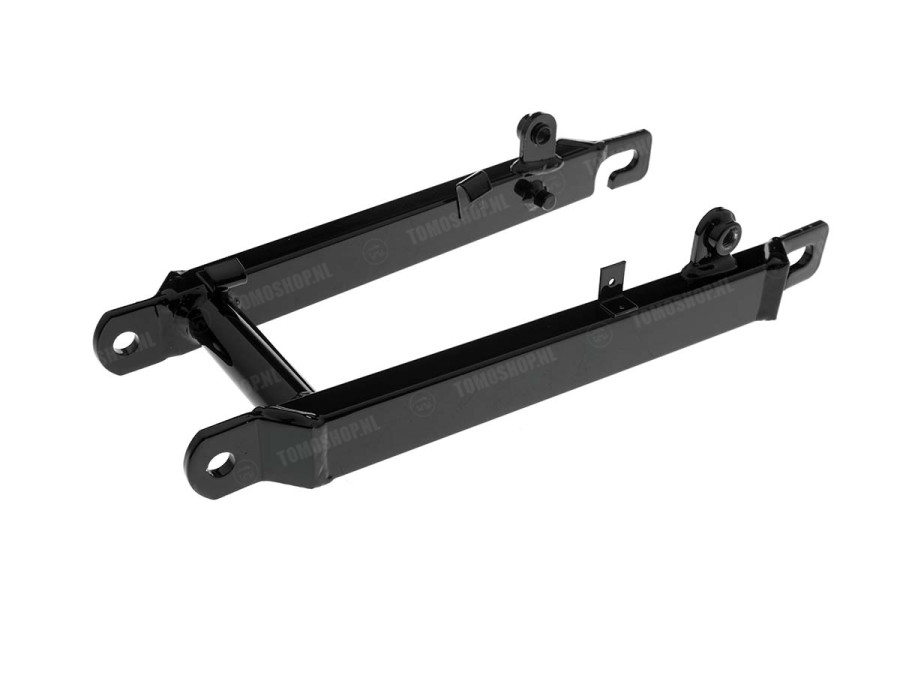

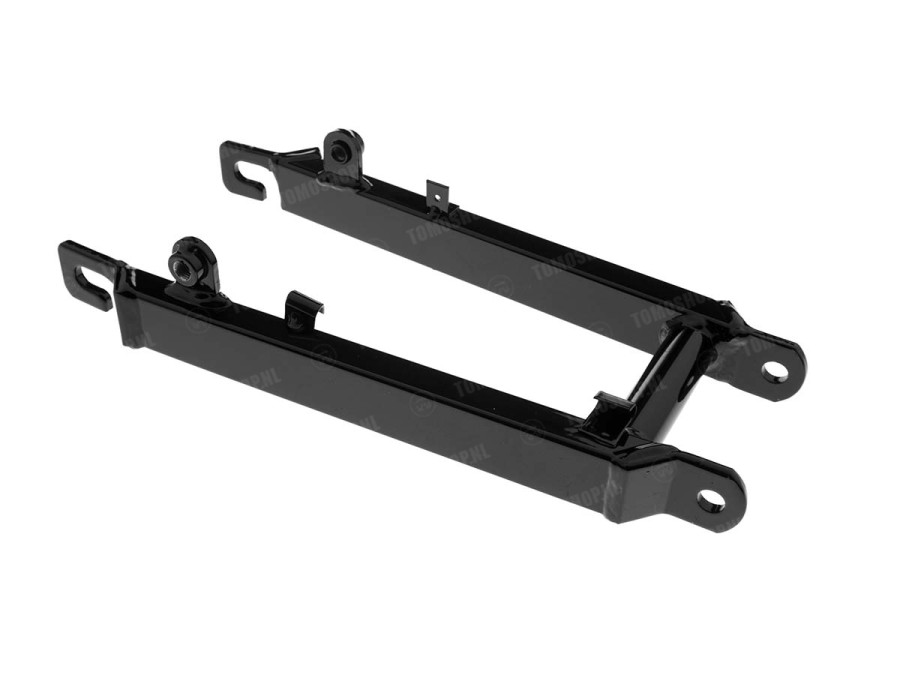

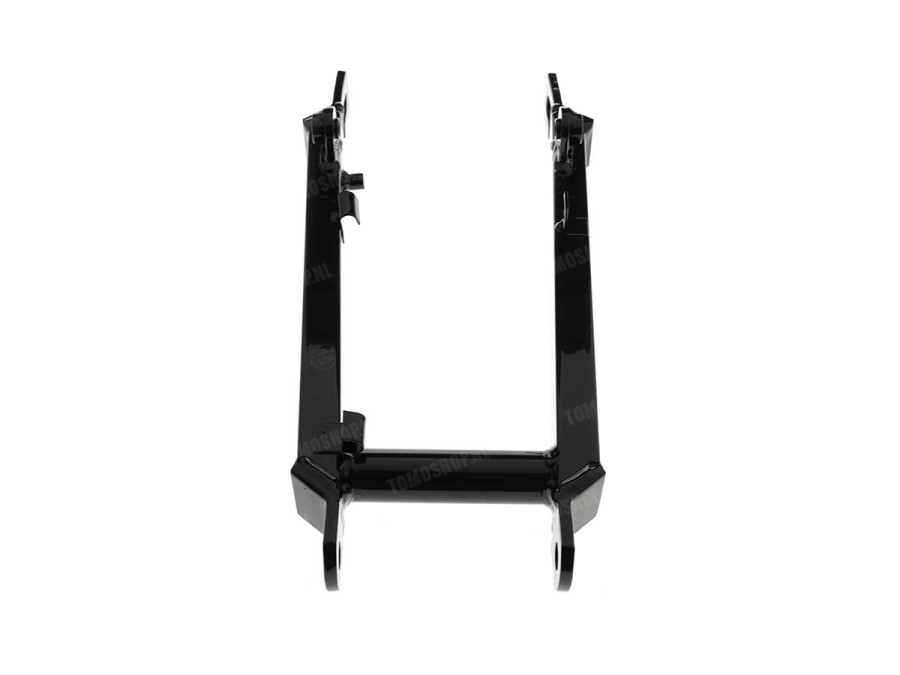

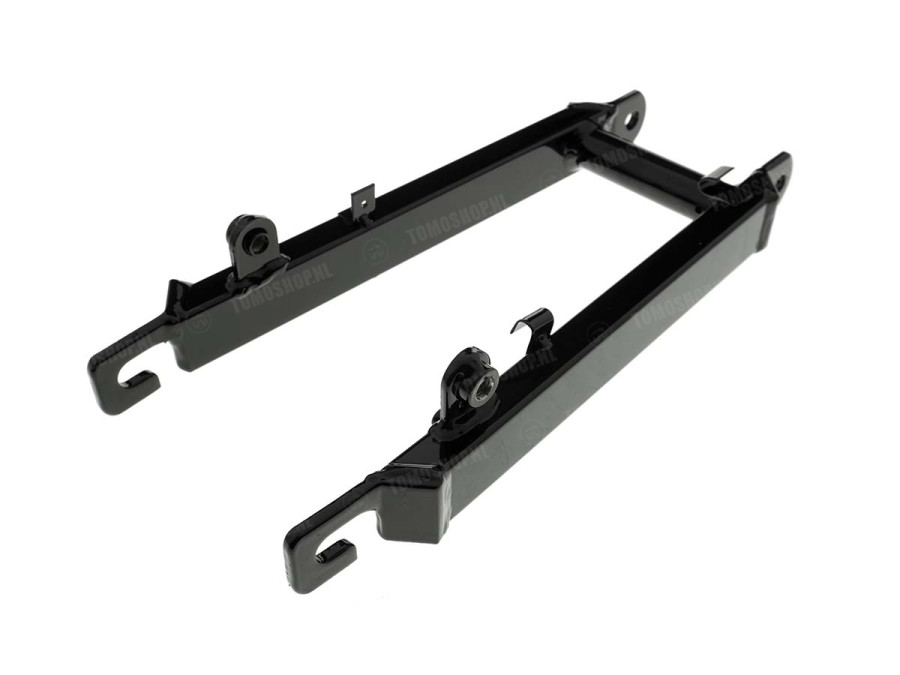

Swingarm Tomos A3 / A35 square thick matt black A-quality

Swingarm Tomos A3 / A35 square thick black A-quality

• Square swingarm for Tomos A3 / A35
• Colour: Matt black

Note:

• There are cheap replica's on the market. This product is the heavy A-quality version.
• Mounting position of the shock absorber sits 10mm more to the front compared to original. When you are using original side covers and 300mm+ shocks, the shocks can hit the side covers. With shocks till 280mm it is no problem. Or you have to modifiy or use no side covers.

For various Tomos models

• Tomos A3 / S25
• Tomos A35

• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Wizz'rd
• Tomos Califone
• Tomos Flexer
• Tomos Funsport
• Tomos Pack'R
• Tomos Taxxity
• Tomos Sport'R
• Tomos Roadie

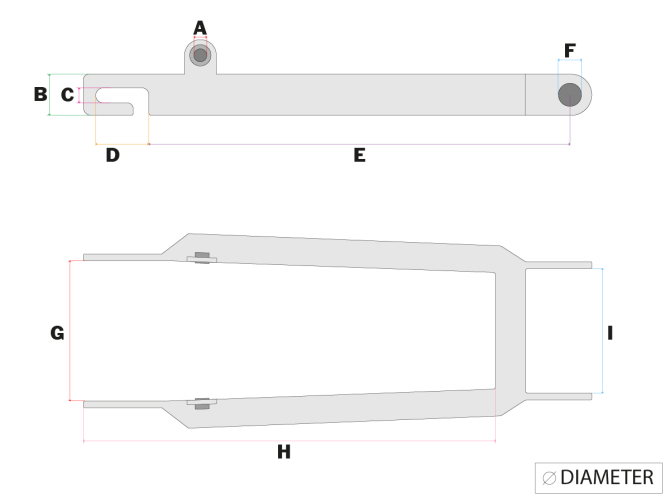

Dimensions:

• A: M10
• B: 35mm
• C: 14mm
• D: 31mm
• E: 315mm
• F: 12mm
• G: 132mm
• H: 305mm
• I: 94mm
