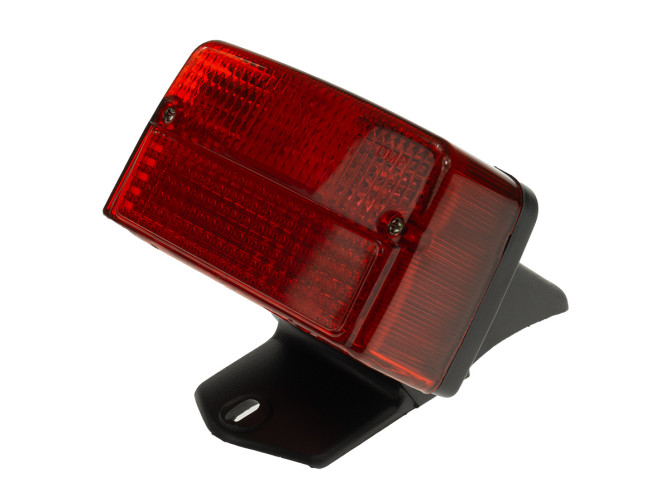

Taillight Tomos A35 new model with brake light replica

Taillight Tomos A35 new model with brake light replica

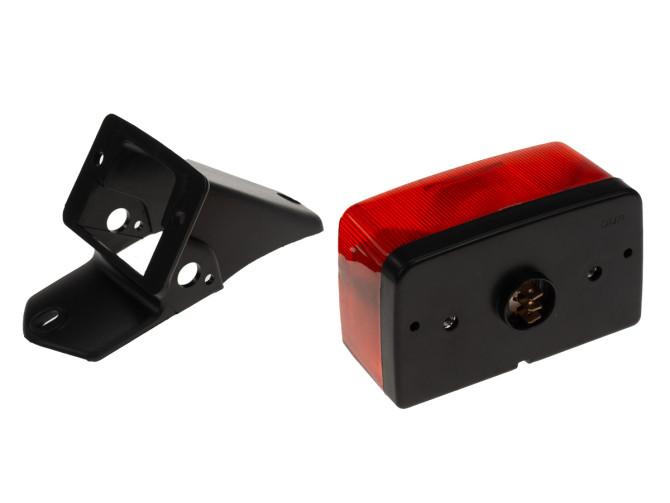

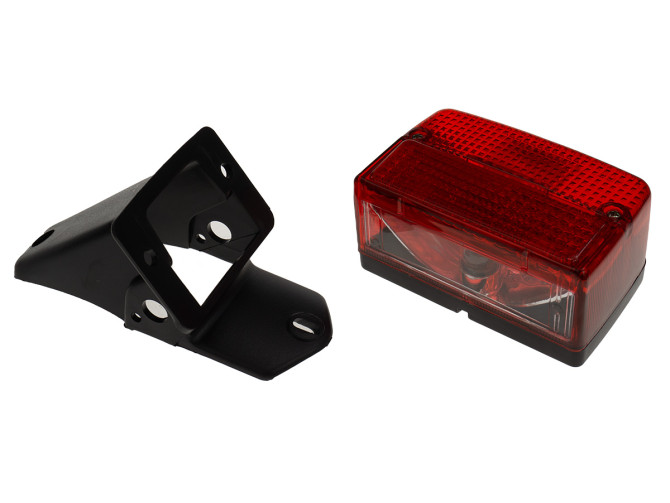

• New model with bracket

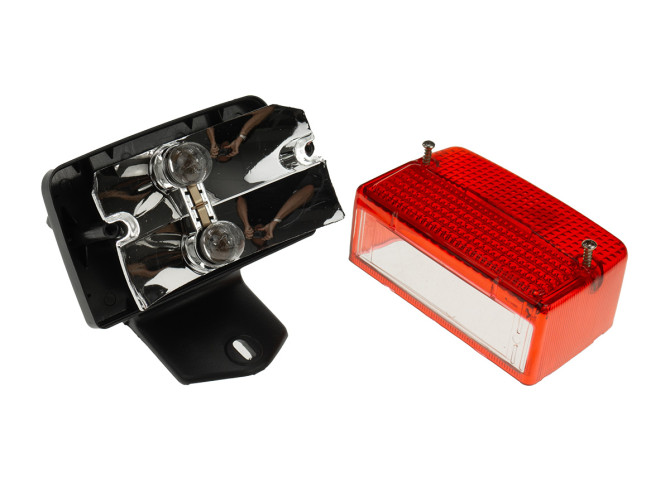

• With 1x BA15 5 watt bulb and 1x BA15 10 watt brake light
• With mounting holes for indicators
• Hex bolt for mounting lamp to holder is not included (shown for illustration purposes only)

Connections

• Top = brake light
• Middle = ground
• Bottom = tail light

Attention:

• 2x M6x16 hex bolt and washer not included, for mounting lamp unit to bracket. Transfer your old one or order new ones (see related products)
