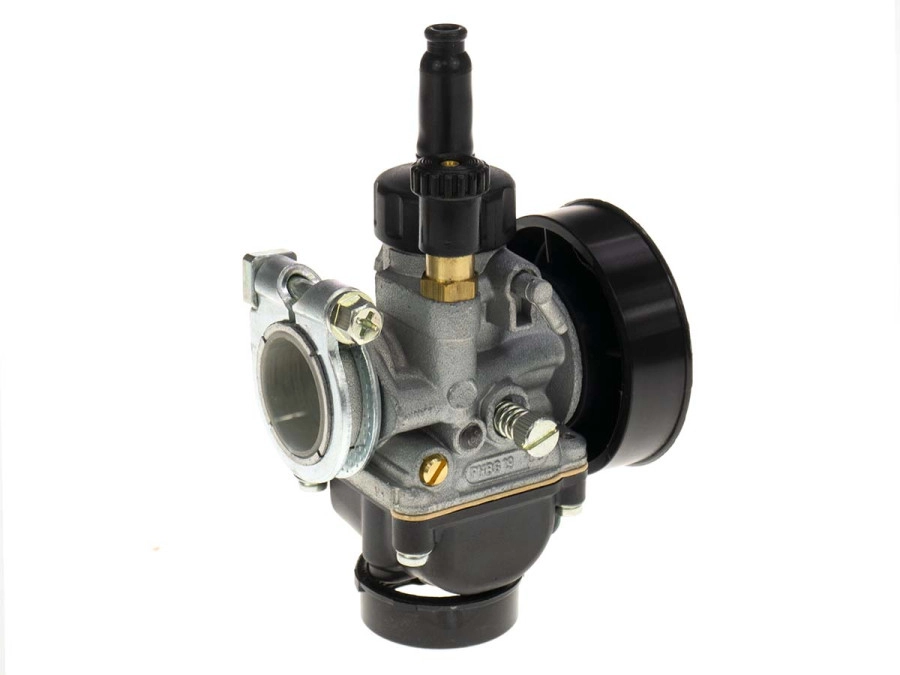

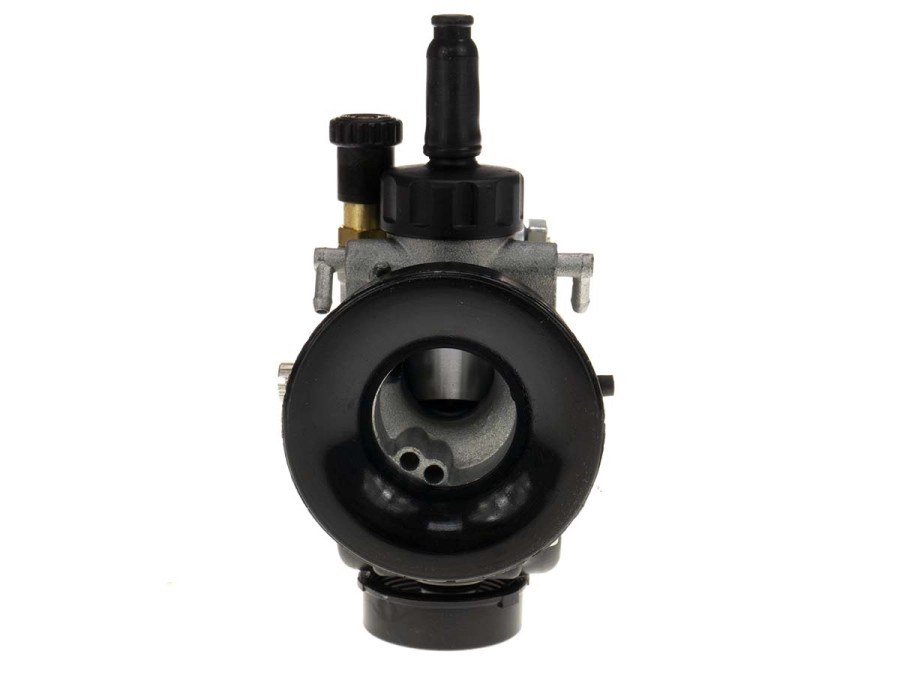

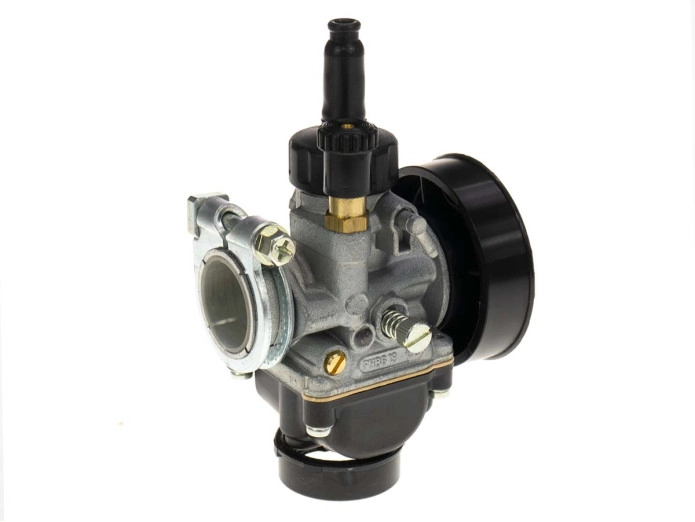

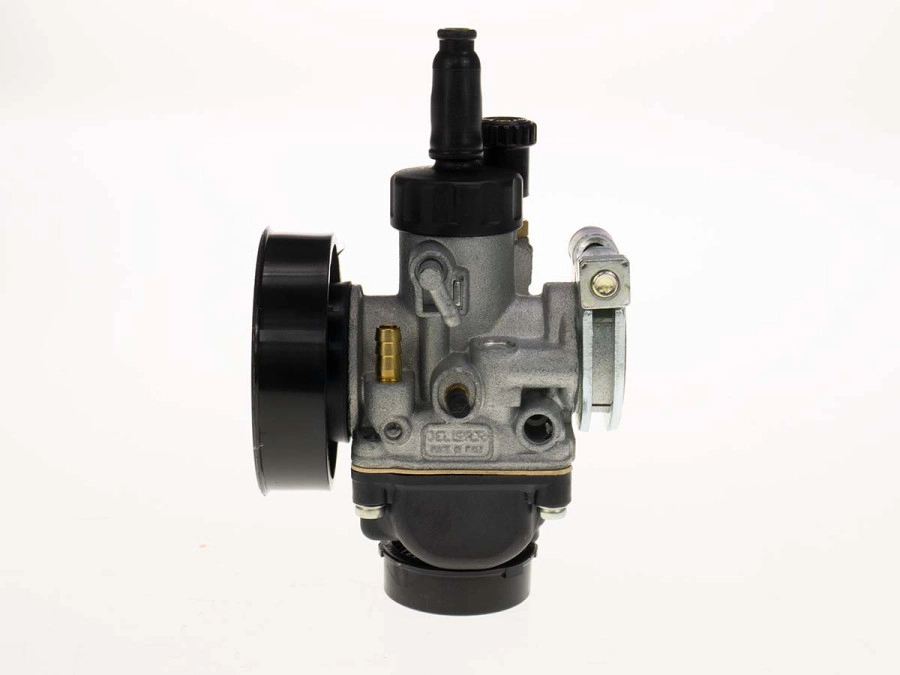

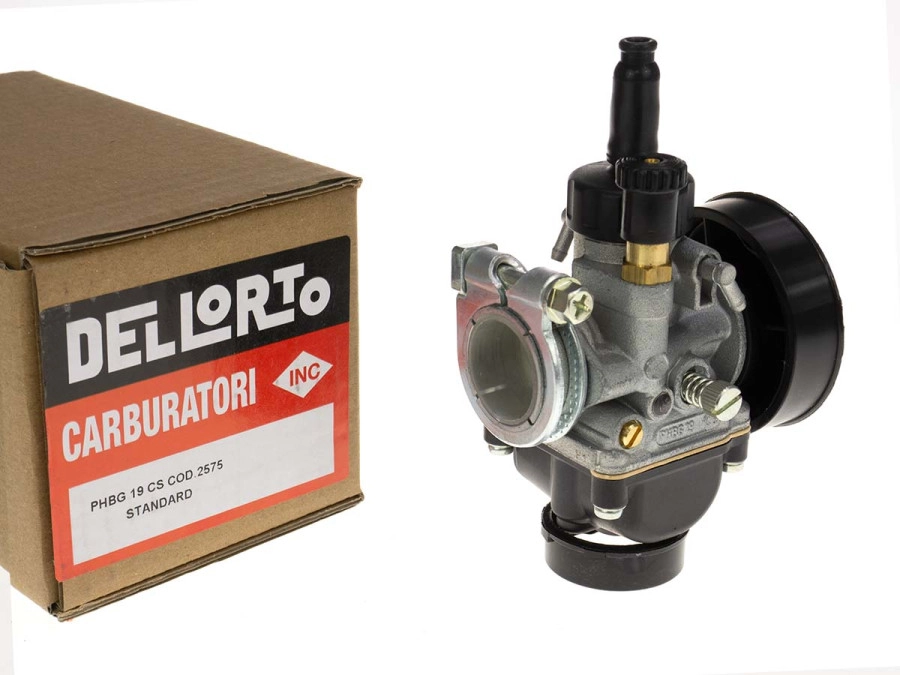

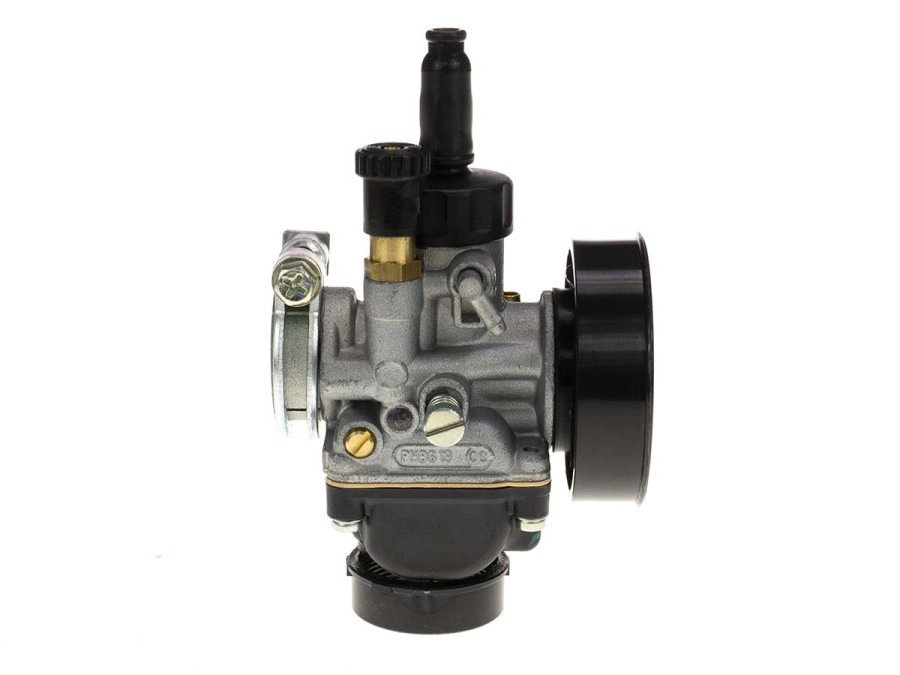

Dellorto PHBG 19mm CS carburetor original clamp connection

Dellorto carburettor PHBG 19mm.

• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors should always be cleaned before installation.
• Hand choke control.
• Dellorto 2575

Standard jetting:

• 30 slide
• W9 needle
• 75 Main nozzle
• 262AN atomizer
• 45 Idle jet
• 60 Choke nozzle
• 9450.1 Float - 4.0 grams

With a matching manifold applicable to various Tomos models:

• Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.

With a matching manifold also universally usable for:

• Kreidler Florett  / RMC /  RM /  Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS /  Puch / Maxi / E50.
