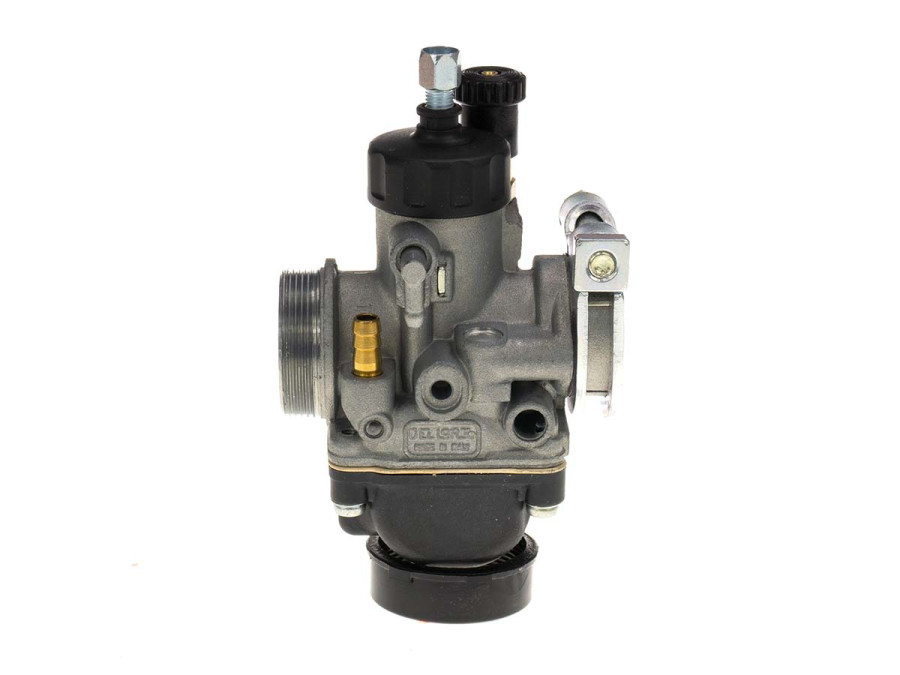

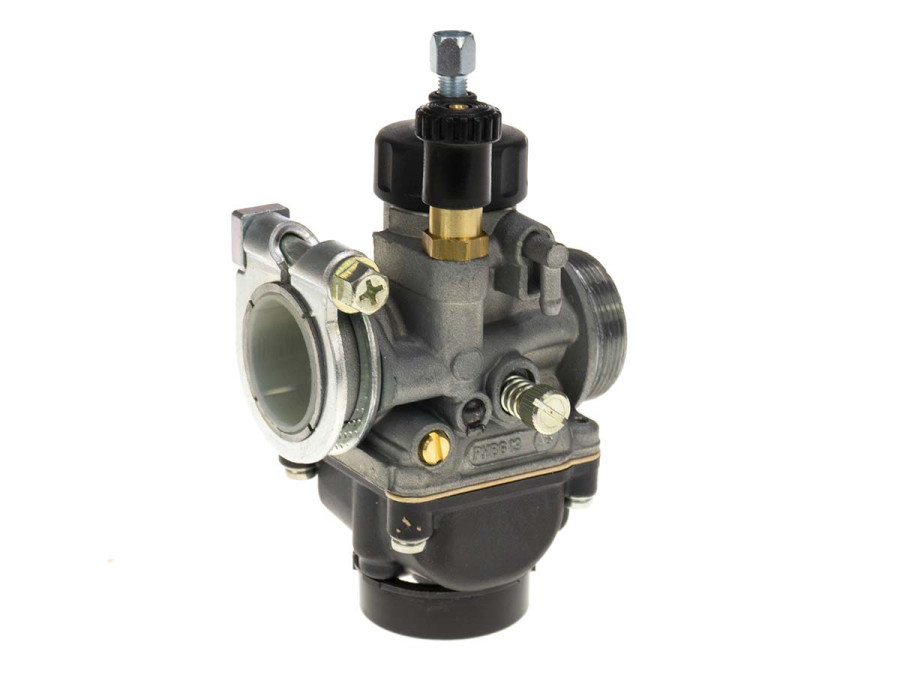

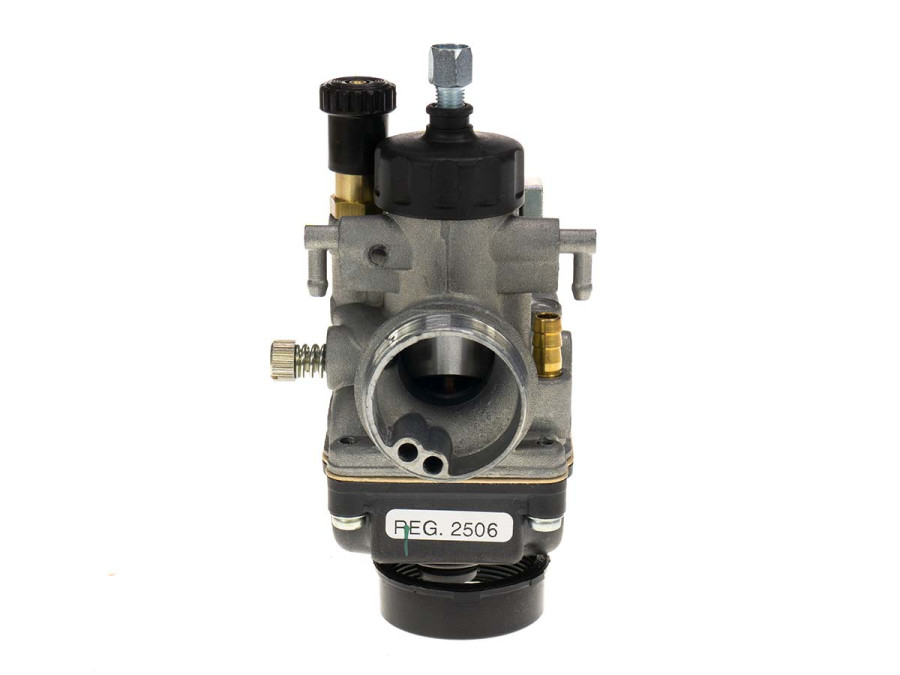

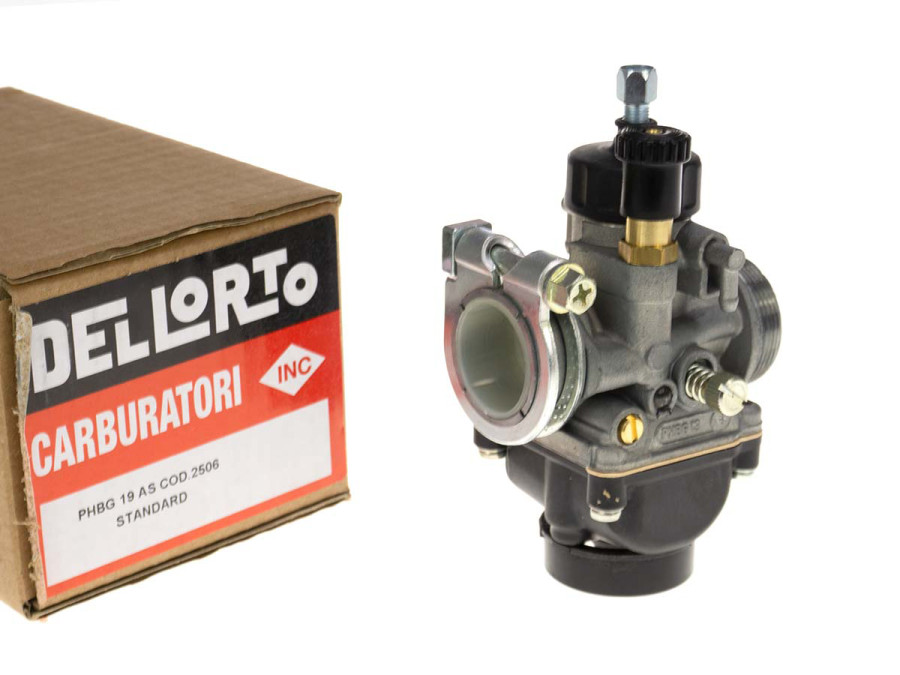

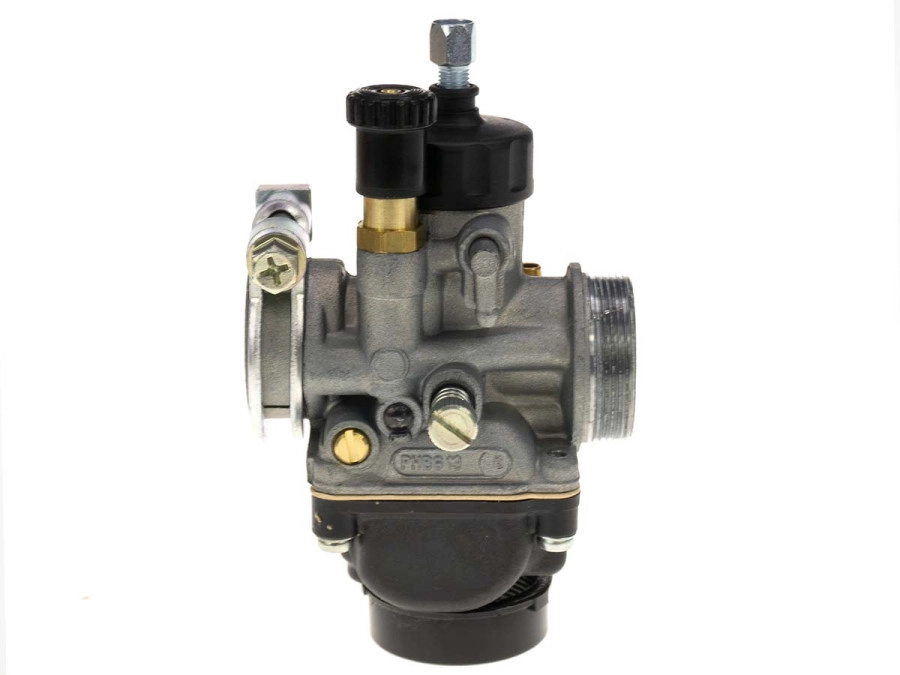

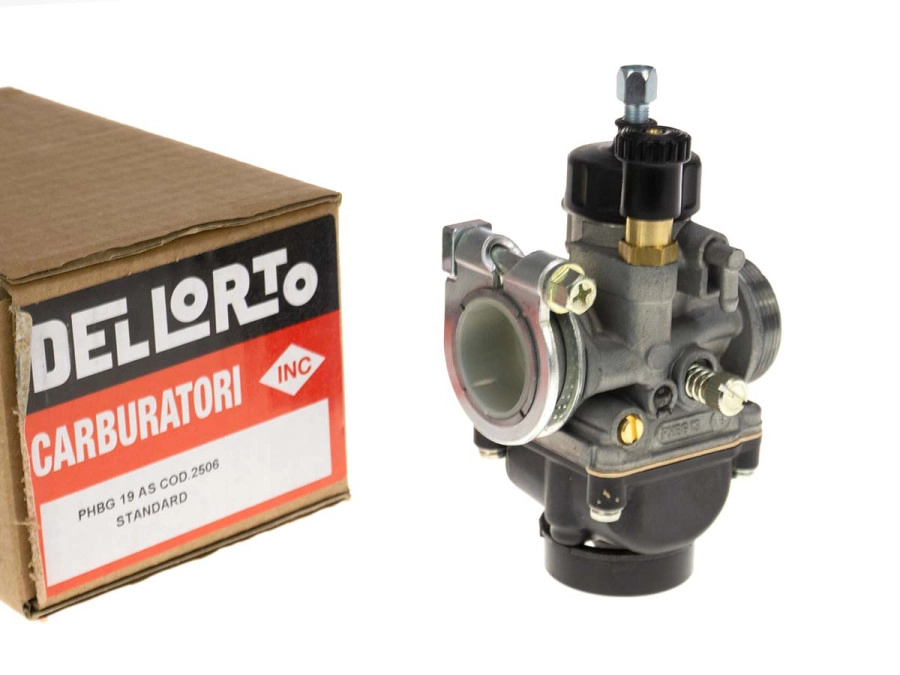

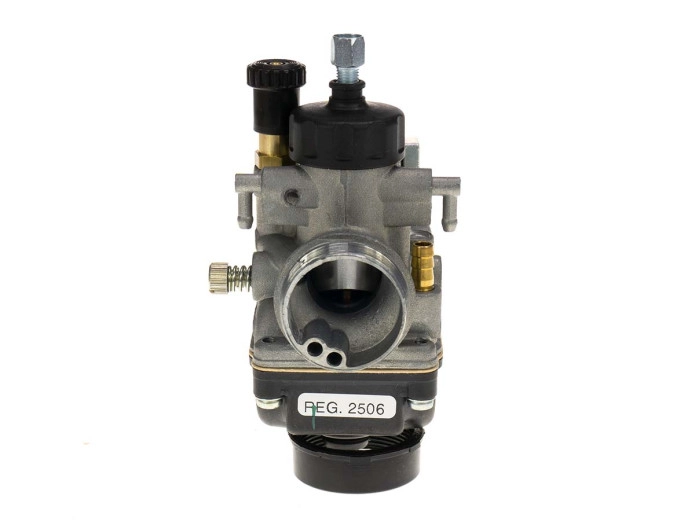

Dellorto PHBG 19mm AS carburetor original

Dellorto carburettor PHBG 19mm

• Connection diameter of the manifold 24mm
• Connection diameter of the air filter 32mm
• Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
• Carburettors should always be cleaned before installation.
• Hand choke control.
• Dellorto 2506

Standard jetting:

• 40 dia
• W7 needle
• 85 Main nozzle
• 262AU atomizer
• 50 Idle Sprayer
• 60 Choke nozzle

With a matching manifold applicable to various Tomos models:

• Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.

With a matching manifold also universally usable for:

• Kreidler Florett  / RMC /  RM /  Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS /  Puch / Maxi / E50.
