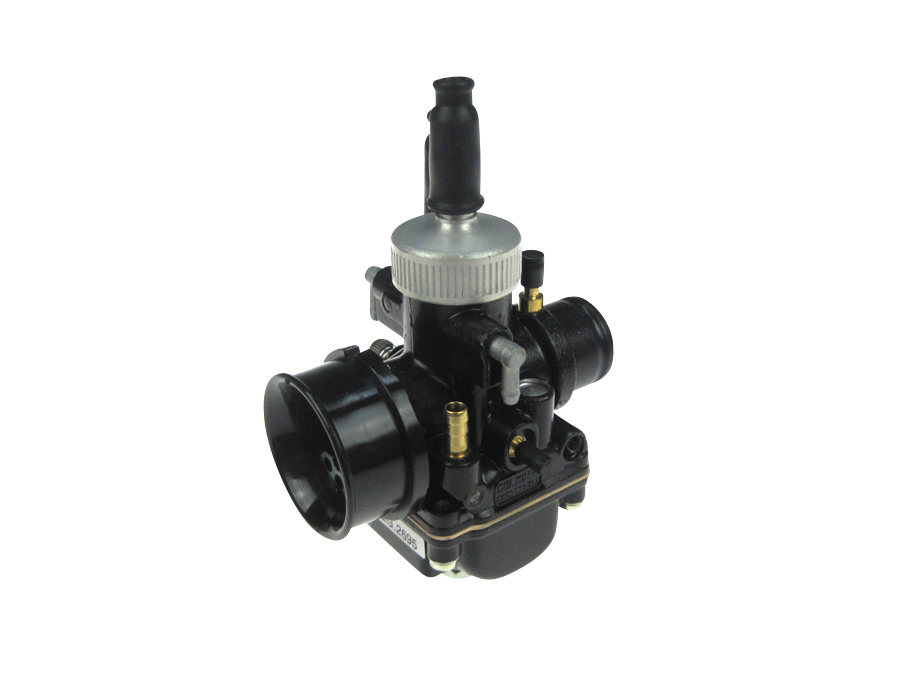

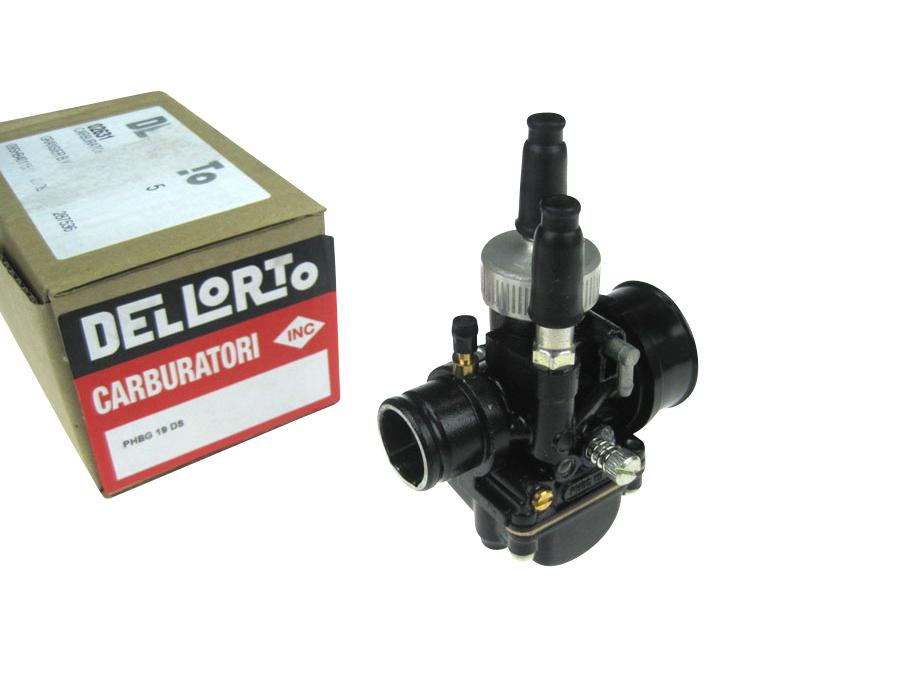

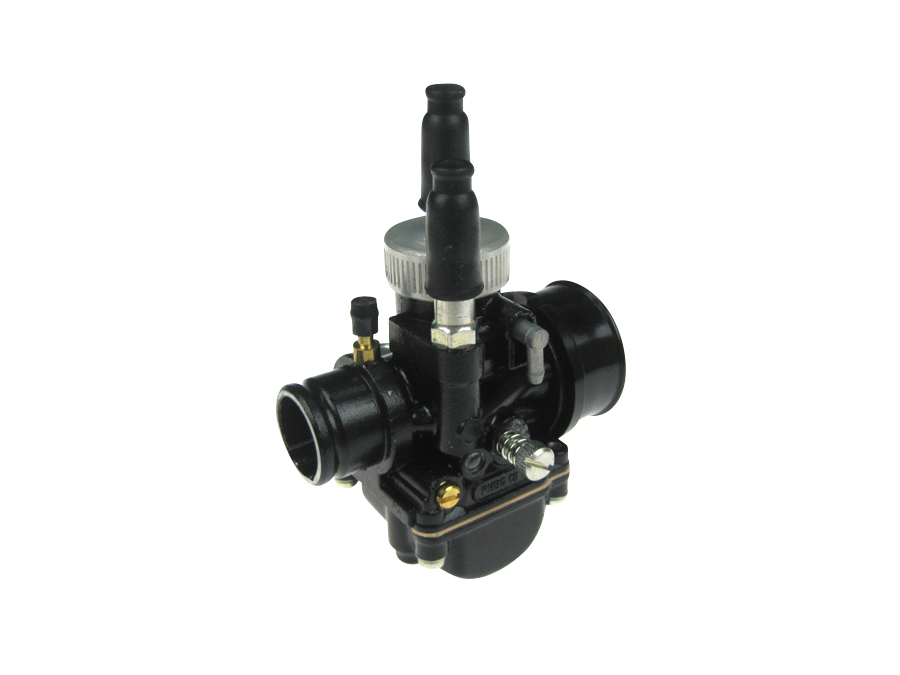

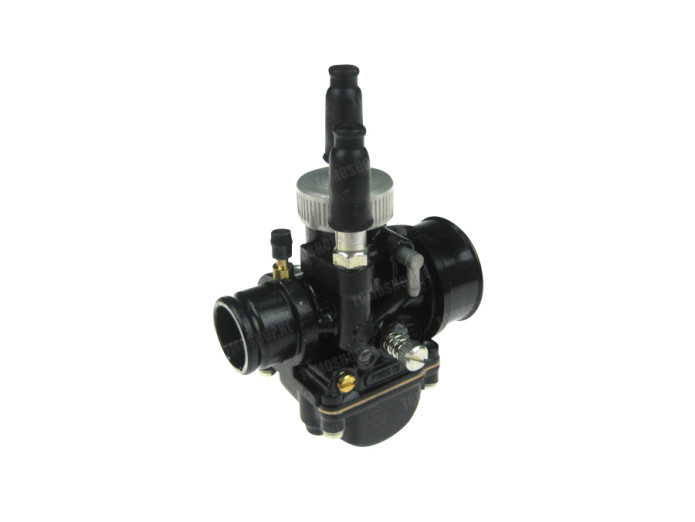

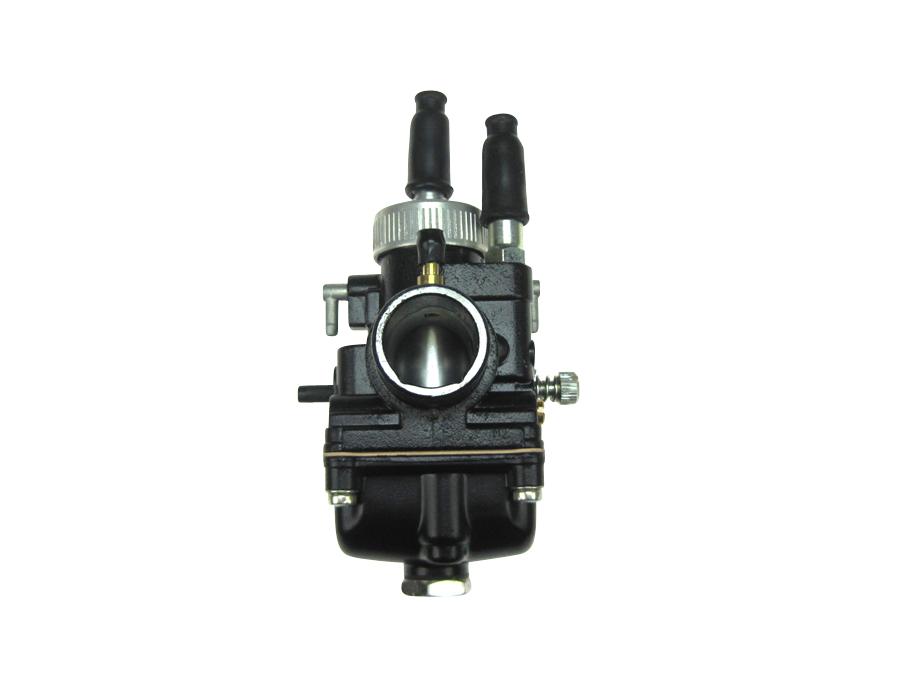

Dellorto PHBG 19mm DS carburetor original spigot Black racing

  • Dellorto PHBG 19mm DS carburetor original spigot Black racing
Dellorto PHBG 19mm DS carburetor original spigot Black racing
Dellorto PHBG 19mm DS carburetor original spigot Black racing
Dellorto PHBG 19mm DS carburetor original spigot Black racing
Dellorto PHBG 19mm DS carburetor original spigot Black racing
Dellorto PHBG 19mm DS carburetor original spigot Black racing
Dellorto PHBG 19mm DS carburetor original spigot Black racing
Dellorto PHBG 19mm DS carburetor original spigot Black racing
    € 149,90
    Ex Tax: € 123,88
    Tomoshop Last one in stock! Last one in stock!
    Model: 20127
    Tomoshop price Without shipping costs. VAT info.
    Customer service

    Do you need some help or advice?

    Tomoshop info Check out our info center or contact us!

    Description

    Replica Dellorto PHBG Black racing 19mm carburettor.

    • Connection diameter of the manifold 24mm
    • Connection diameter of the air filter 32mm with adapter 38mm
    • Nozzles/jets suitable for this carburettor are Dellorto 5mm jets/nozzles
    • Carburettors should always be cleaned before installation.
    • Cable choke control.

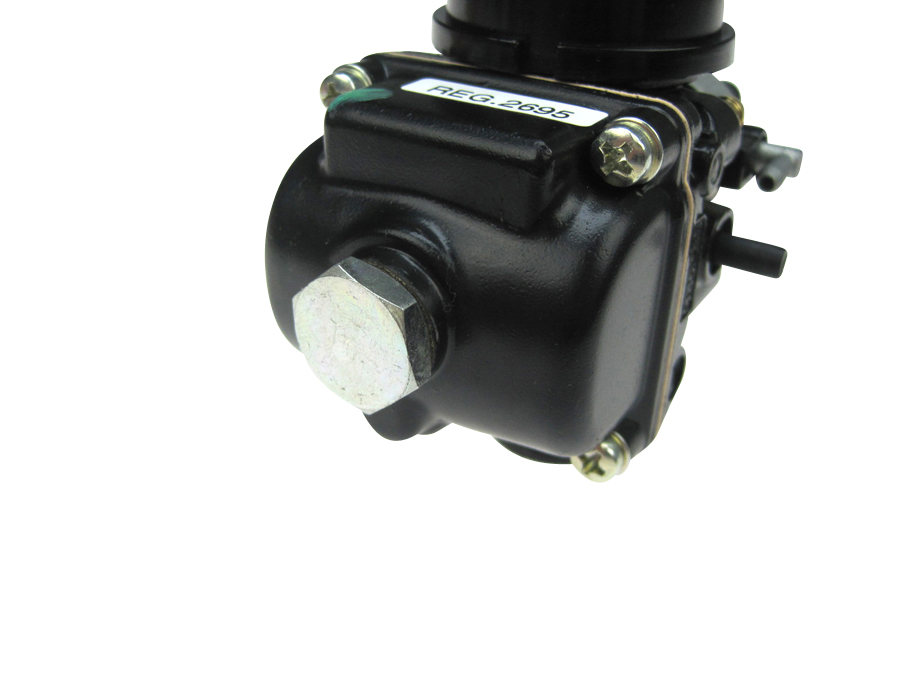

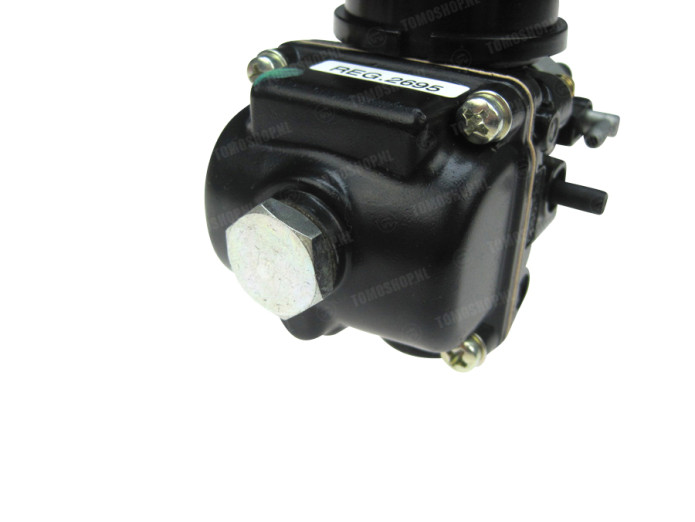

    • Fast nozzle exchange by the drain bolt on the float chamber. (M32)

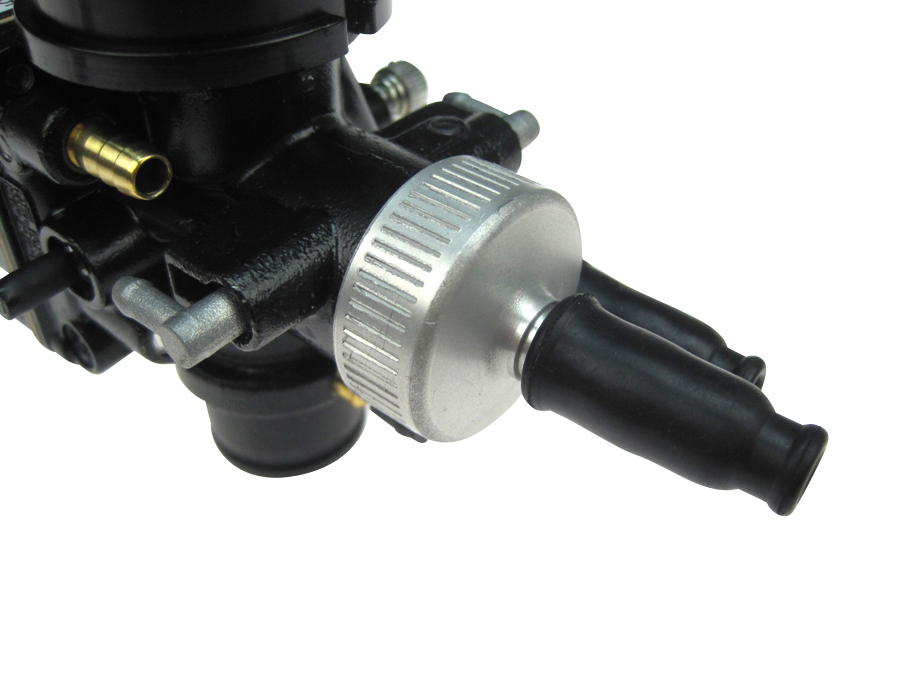

    • Throttle drum cover is also screwable.
    • Rubber for connection is availble at the section replacement parts.
    • Insertion version

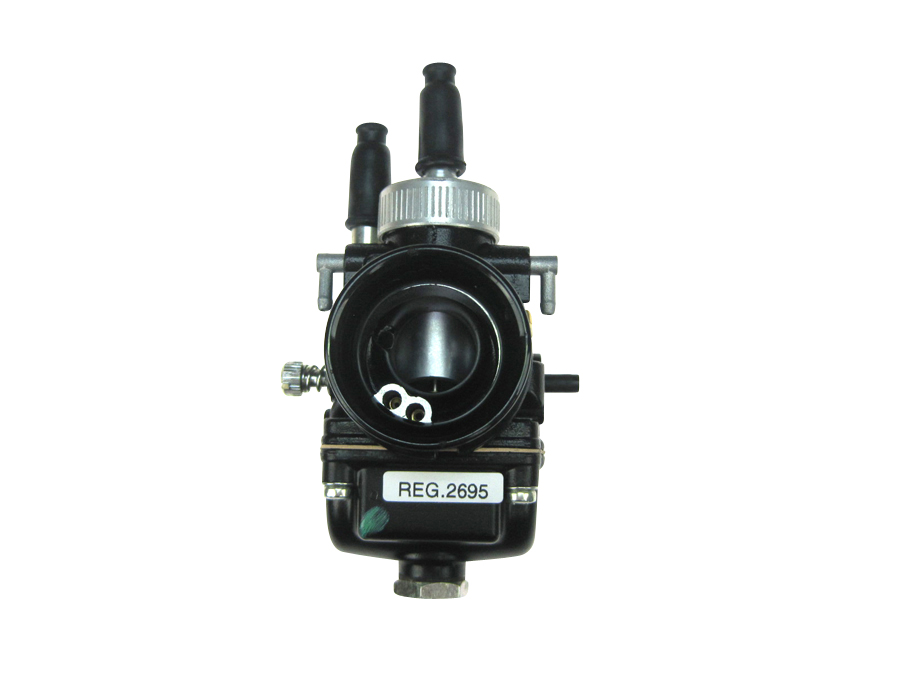

    • Dellorto 2695

    Standard jetting

    • 30 Slide
    • W9 Needle
    • 262AN Atomiser
    • 75 Main jet
    • 45 Idle jet
    • 60 Choke jet
    • 9450.1 Float – 4.0 grams

    With a matching manifold applicable to various Tomos models:

    • Tomos A3, A35, Quadro, Standard, Luxe, Flexer etc.

    With a matching manifold also universally usable for:

    • Kreidler Florett  / RMC /  RM /  Zundapp / Yamaha DT / TY / Honda MT / MB / MBX / NSR / MTX / NS1 / Kawasaki AR / Suzuki TSX / TS /  Puch / Maxi / E50.
    View more Read more
    Brand: Dell’Orto
    Model: 20127
    EAN: 8718404016351
    MPN: 2695
    Category: Engine parts
    Type product: Carburetor
    Type product: Carburetors
    Carburetor / sets
    Mounting type: Spigot
    Carburetor diameter: 19mm
    Weight: 600 gram

    Dell’Orto began its activity in 1933 with the manufacture of carburettors for motorbikes. A constant evolution that today makes it a modern and fully integrated company at production level, making technological research its strong point. Large range for vintage mopeds and therefore also for your Tomos like Dellorto SHA, Dellorto PHBG and Dellorto PHVA parts.
