Bearing and seal overhaul set Tomos A3 small

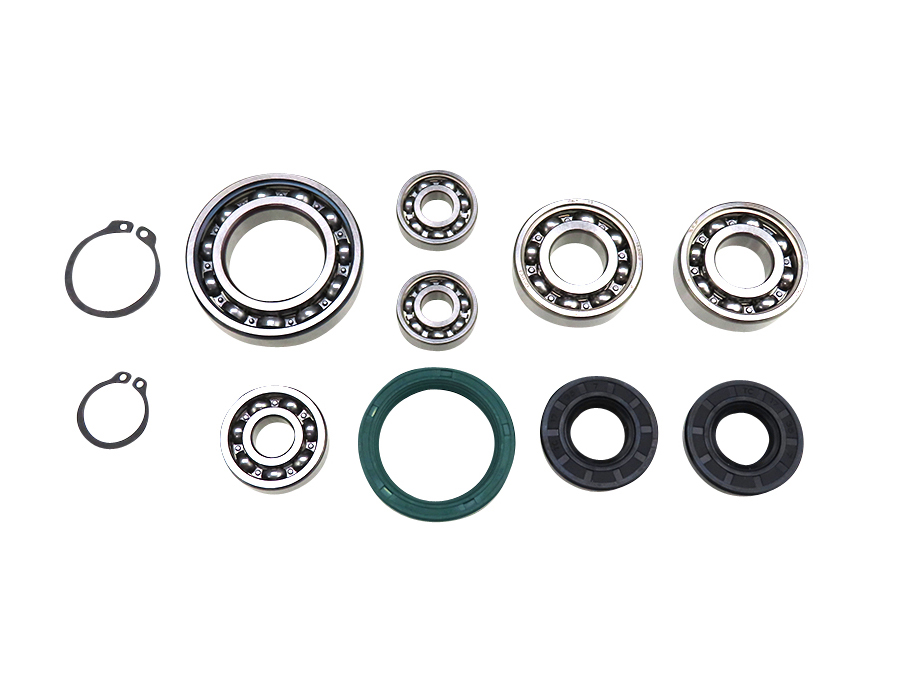

Engine rebuild kit Tomos A3 11-pieces bearing and seal kit

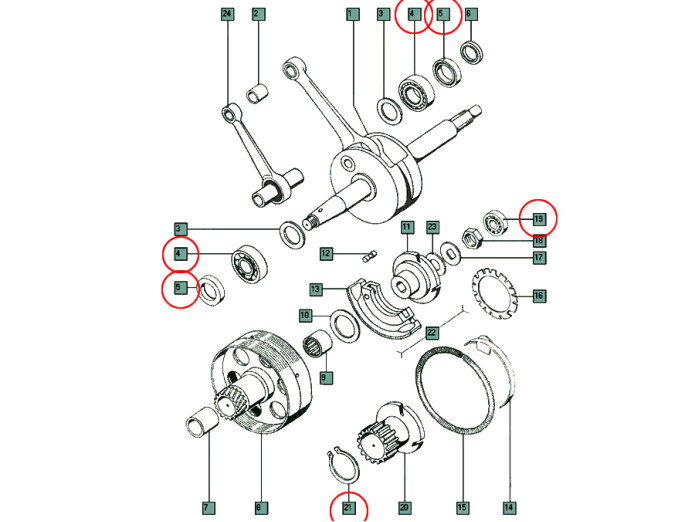

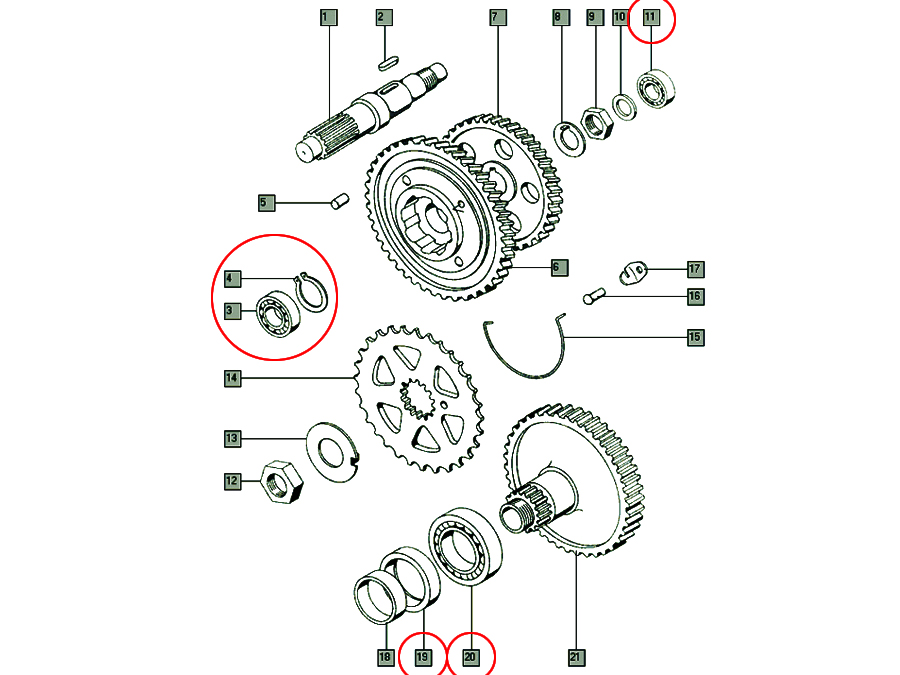

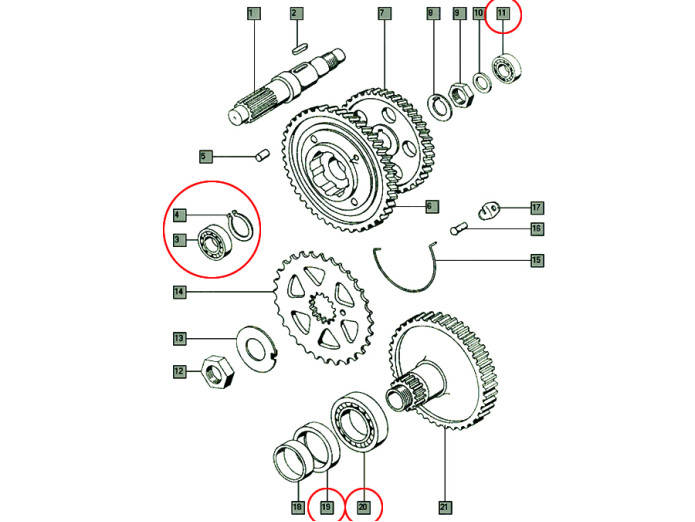

For Tomos A3 engine with kickstart of the following parts (see exploded view):

• Clutch
  #19 - 1x Bearing 6000 clutch engine cover sprocket Tomos A3 / A35 / A55
  #21 - 1x Clutch circlip A26 Tomos A3


• Crankshaft
  #4 - 2x Lager krukas 6203 C3
  #5 - 2x Seal 17x35x7 crankshaft


• Main shaft
  #3 - 1x Bearing 6201 C3 main shaft / primary axle Tomos A3
  #4 - 1x Main shaft circlip A20 Tomos A3 / A35 / A55
  #11 - 1x Bearing 6000
  #19 - 1x Seal 35x47x7 for Tomos A3 / S25 / A35 / A55 drive shaft
  #20 - 1x Bearing 6006 pedal crank shaft Tomos A3


Order this set together with the required gaskets, clutch ATF oil, any other parts for a complete engine overhaul! (see related products)

Do you have a model with pedals? Then you also need the pedal crank seal 16x24x7.
