Cylinder Tomos 2L / 3L 60cc (40mm) pin 12 aluminium Schmitt

Cylinder Tomos 2L / 3L 60cc (40mm) pin 12 aluminium Schmitt

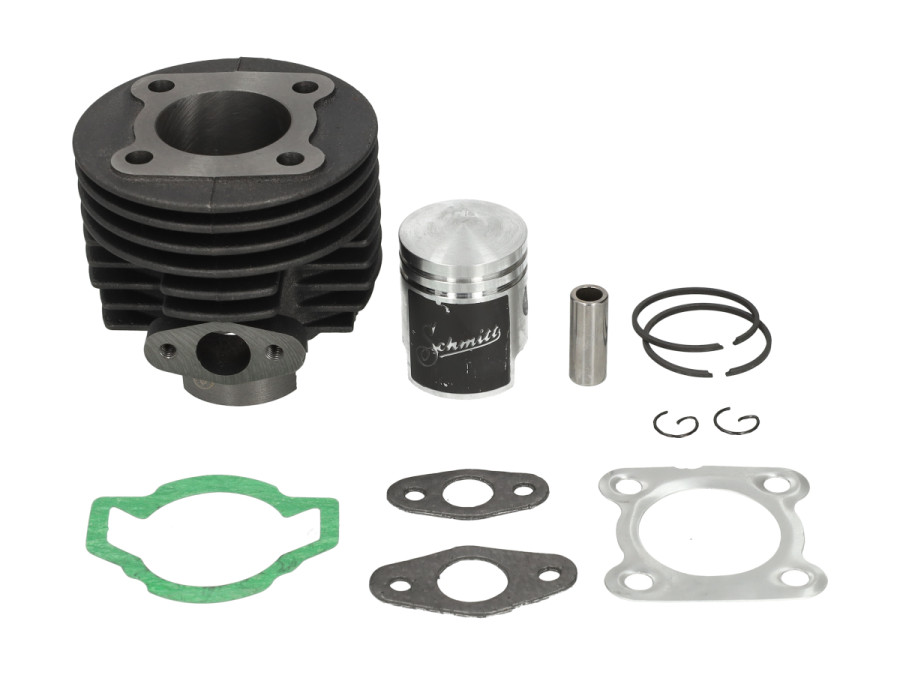

• Cast iron 40mm / 60cc
• This cylinder has improved port timings
• Piston with 2x block piston ring 40x2.0mm
• Complete with piston (12mm pin)
• Gasket set is included
• Also for Puch X30 NG2AH
• Intake 16mm, exhaust 22mm
• Schmitt Tuning

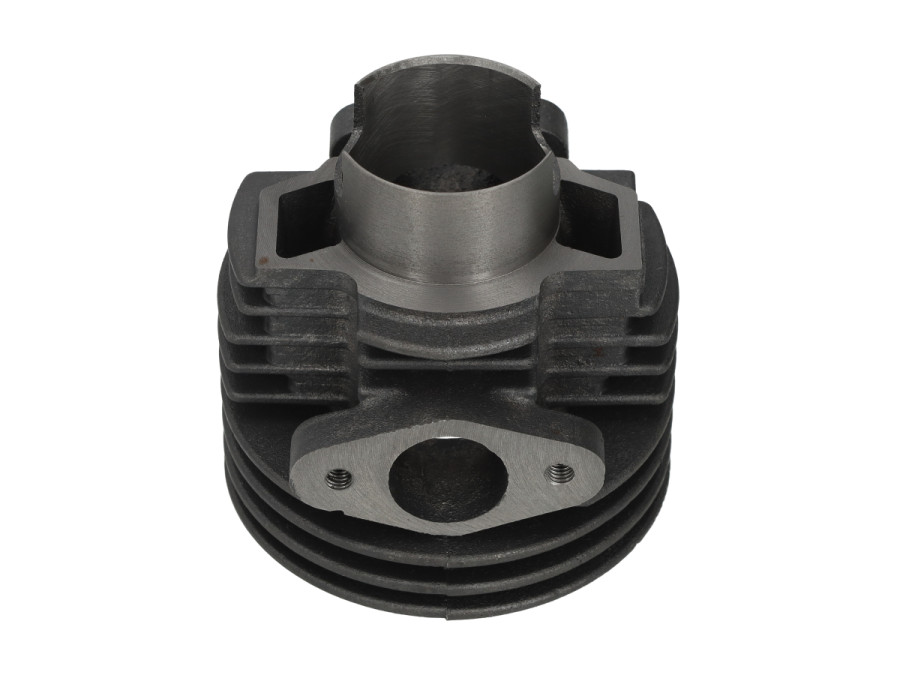

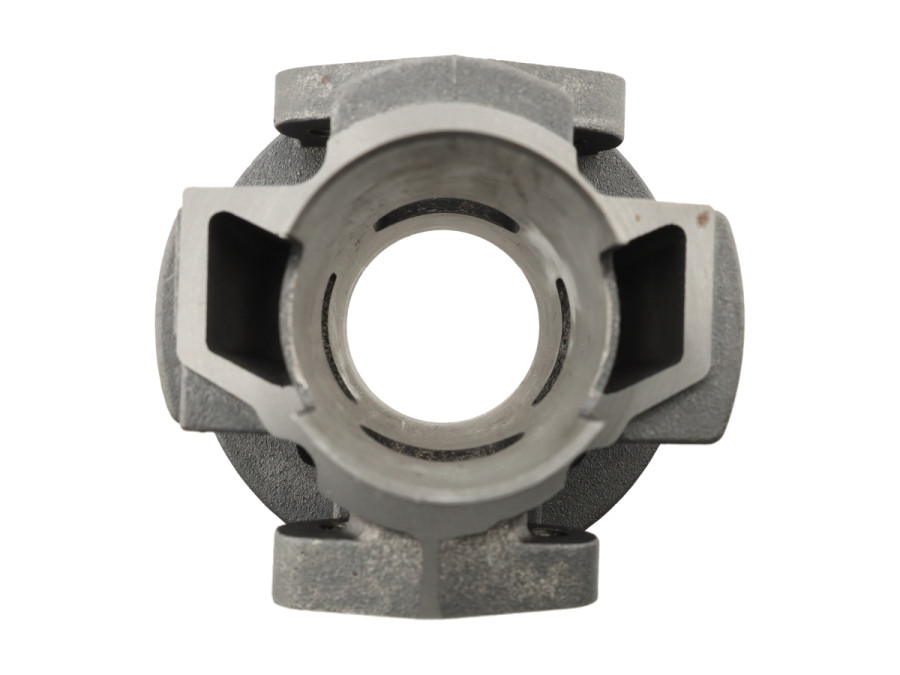

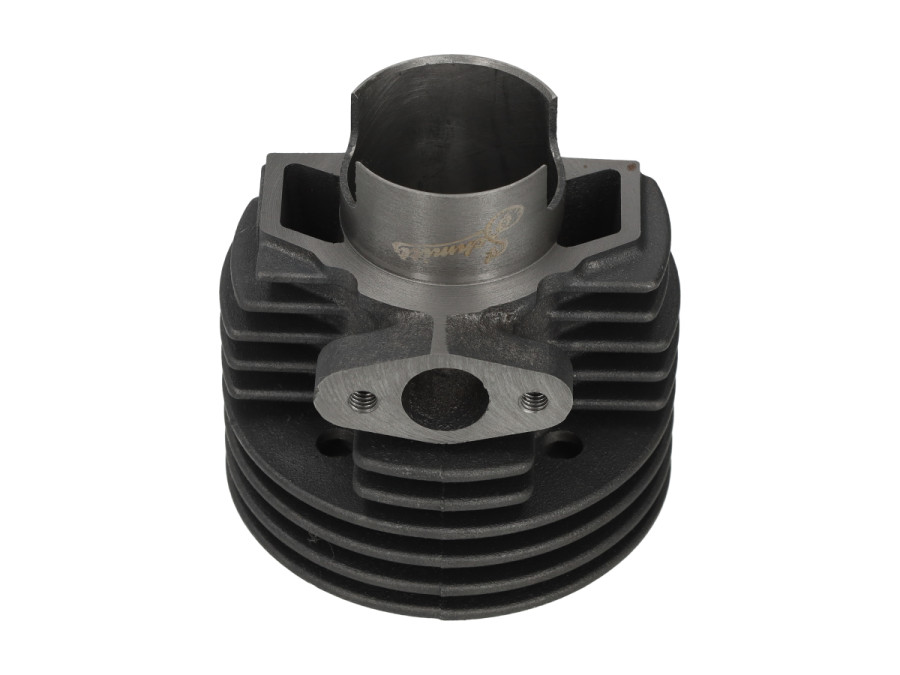

Measurements cylinder

• A: 8mm
• B: 44mm
• C: M6
• D: 67mm
• E: 22mm
• F: 42mm
• G: M6
• H: 32mm
• I: 16mm
• J: 16mm
• K: 16mm

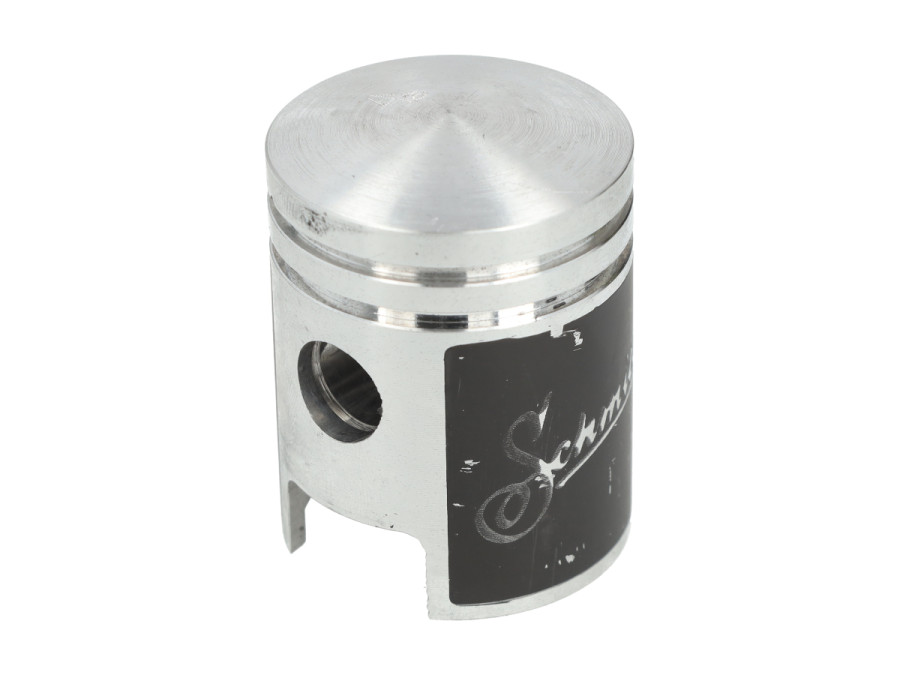

Measurements piston

• A: 4mm
• B: 25mm
• C: 24mm
• D: 12mm
