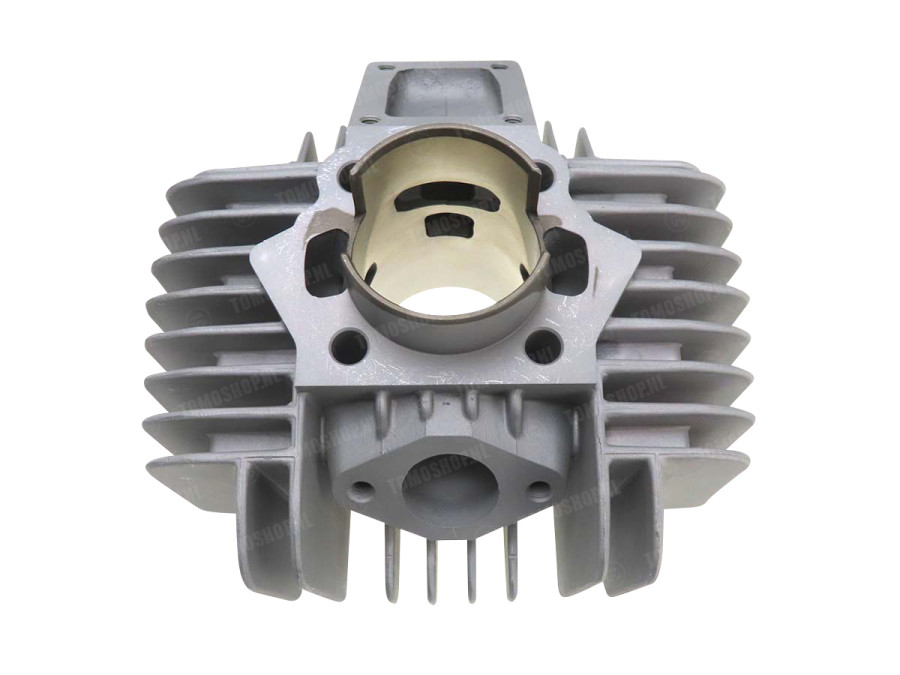

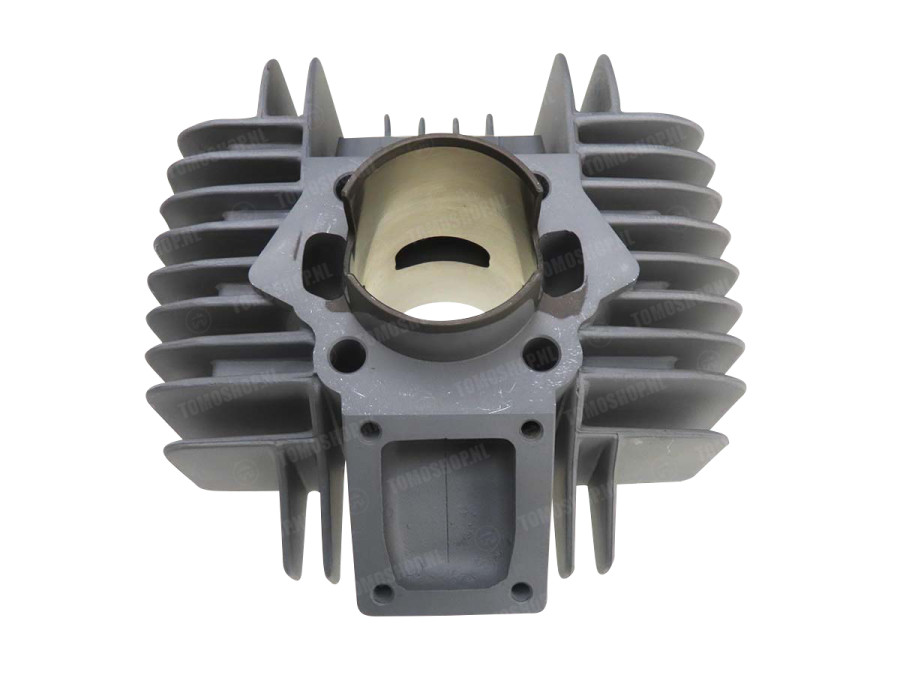

Cylinder Tomos A35 / A52 65cc (44mm) Power1 aluminium

Cylinder Tomos A35 / A52 65cc (44mm) Power1 aluminium

• Aluminium / Nicasil.
• 65cc / 44mm reed valve cylinder

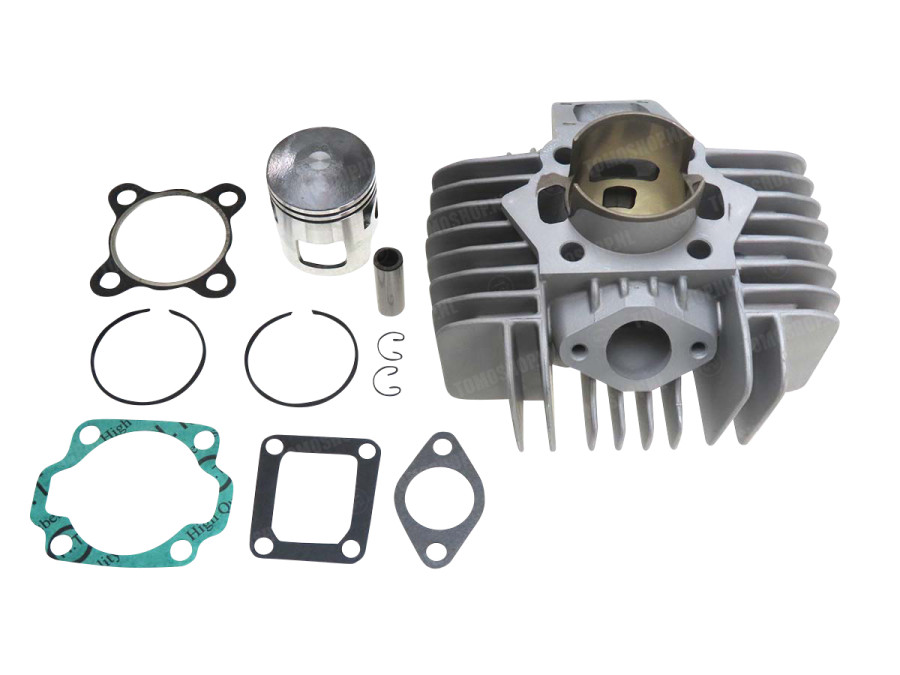

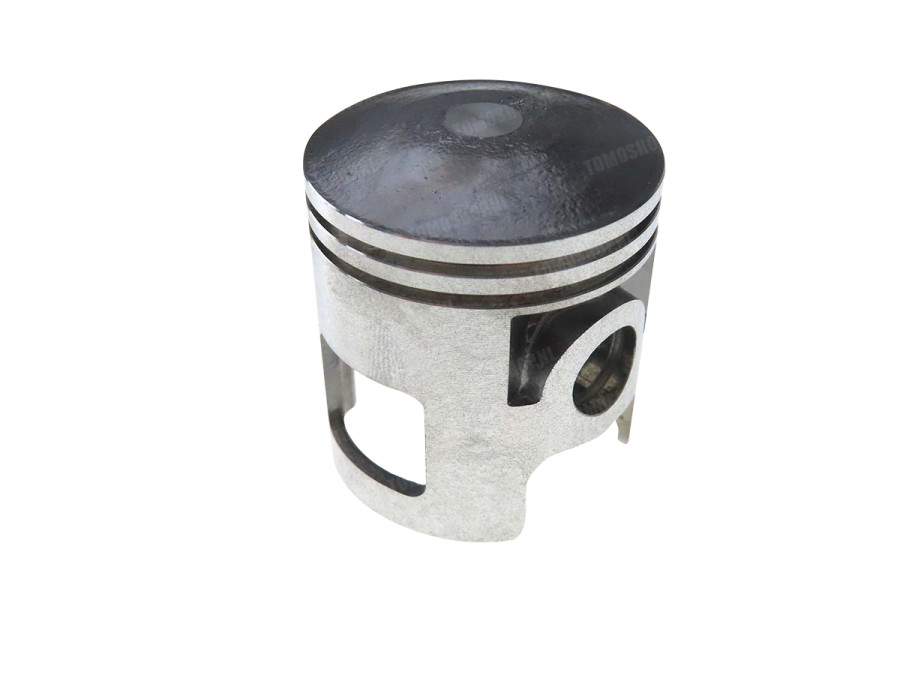

• With pin 12 piston, with piston pin, piston springs, piston clip and gaskets
• Gaskets included:1x head gasket, 1x old model base gasket, 1x exhaust gasket and 1x reed valve gasket.
• Cylindersleeve outer diameter: 48mm

Note:

• Order 1x extra reed valve gasket to make the set complete (see related products)

• Please check of the cylinder sleeve of 48mm fits your crankcase before ordering. In some crankcases this won't fit. (max 47.5mm)

Before mounting

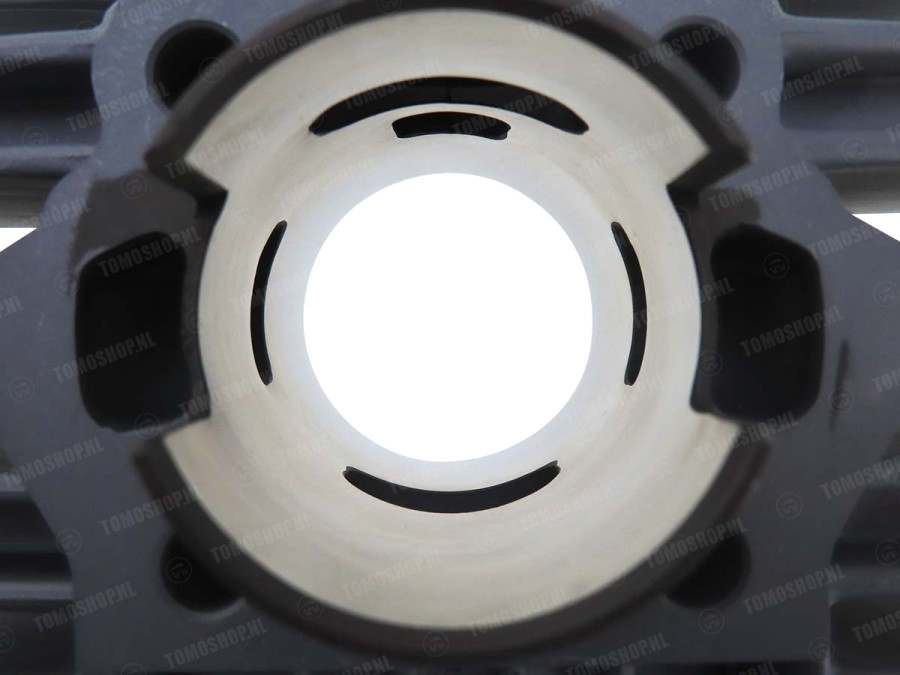

• We always recommend to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie

Dimensions cylinder:

• A: 7mm
• B: 44mm
• C: 6mm
• D: 67mm
• E: 23mm
• F: 42mm
• G: 32mm
• H: 39mm
• I: 35mm
