Cylinder Tomos A35 / A52 50cc (38mm) DMP aluminium 45 km/h

Cylinder Tomos A35 / A52 50cc (38mm) DMP aluminium 45 km/h

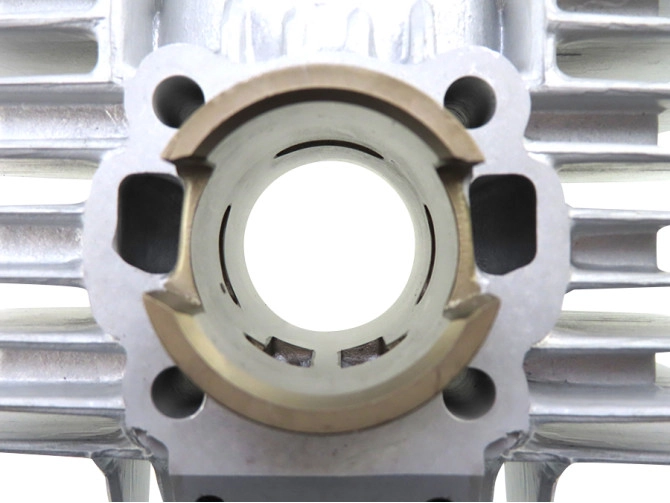

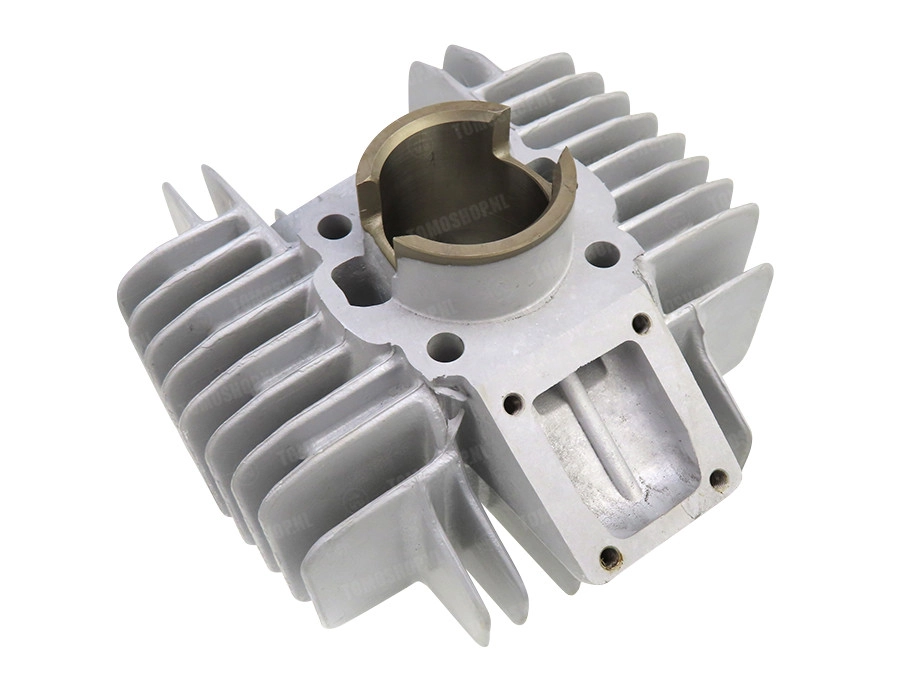

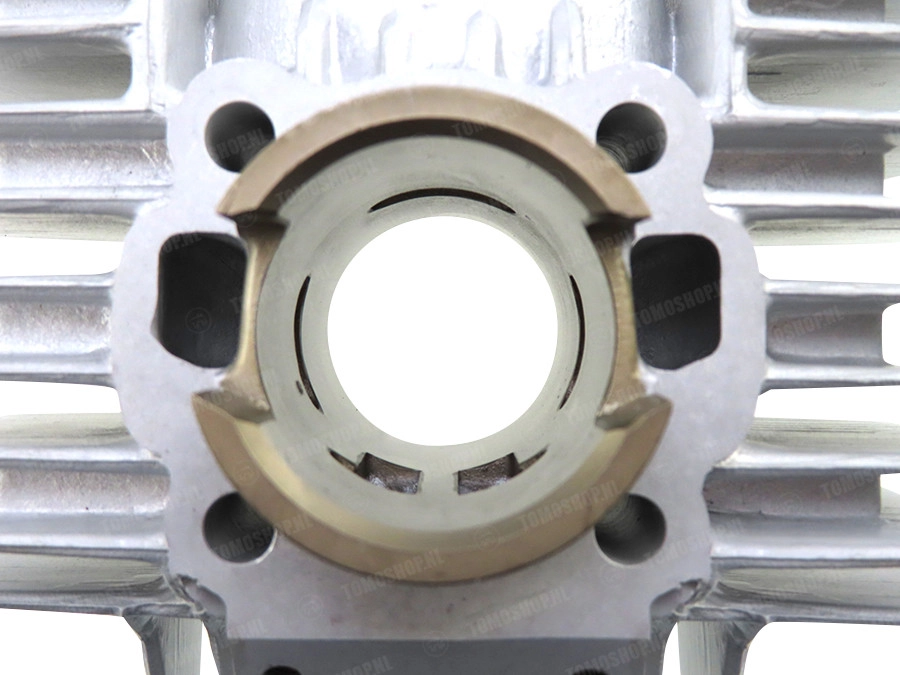

• Aluminium Nicasil cylinder with stock 45 km/h specs
• Replacement cylinder
• 50cc / 38mm
• With pin 12 piston with sleeves
• 38x1.5 piston rings

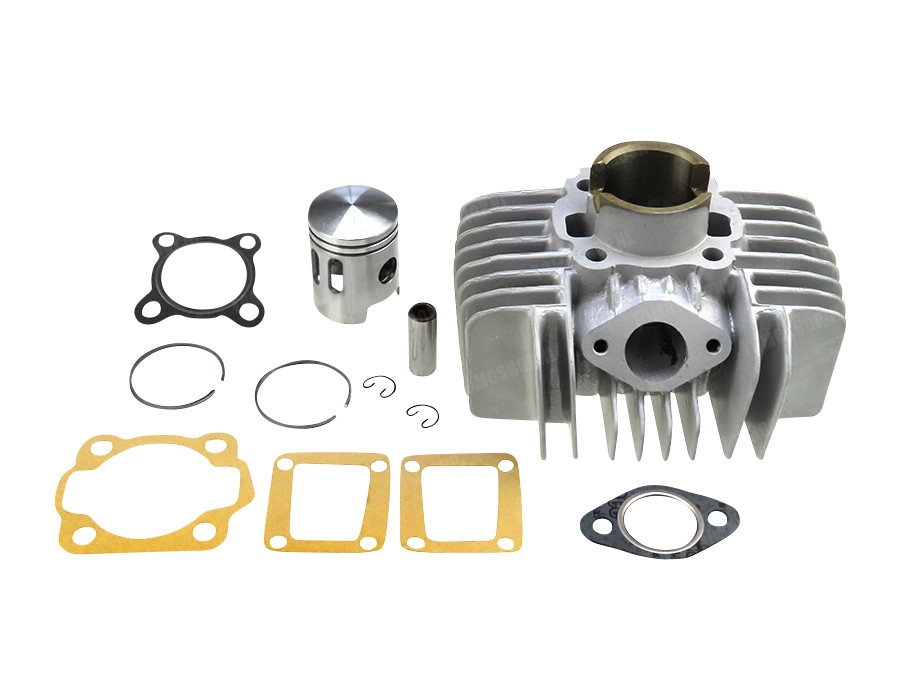

• Complete as shown, with gaskets

Before mounting

• We always recommend to check and clean the cylinder before installation and to finish the ports in the cylinder with a 1000 grit sandpaper. This way the edges are no longer too sharp because of the Nicasil coating, this will considerably extend the life of the cylinder / piston.

For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie

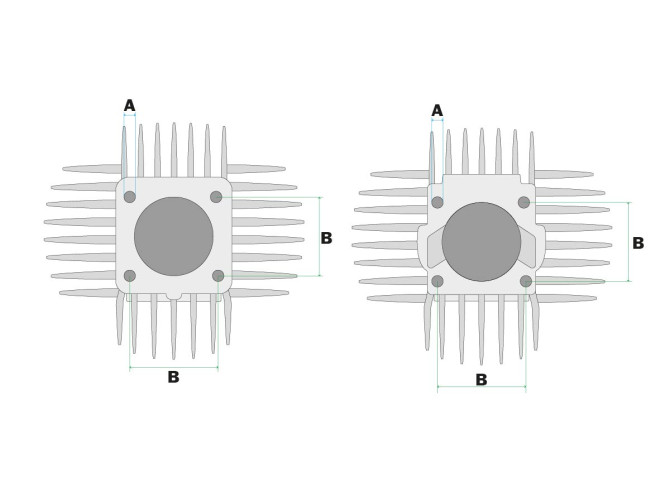

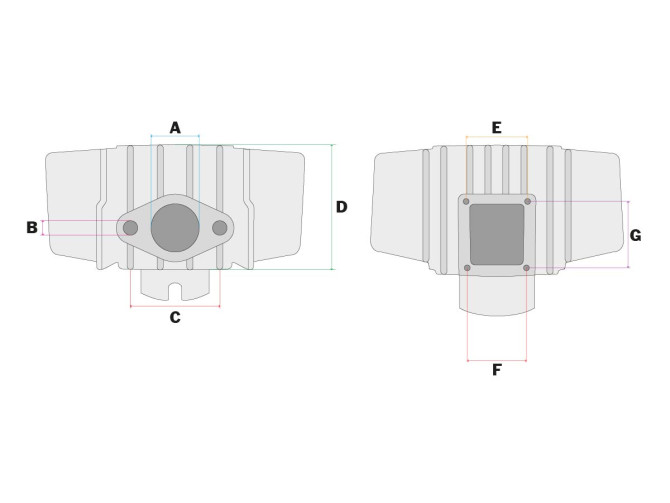

Dimensions cylinder:

• A: 7mm
• B: 44mm
• C: 6mm
• D: 67mm
• E: 22mm
• F: 42mm
• G: 32mm
• H: 39mm
• : 35mm

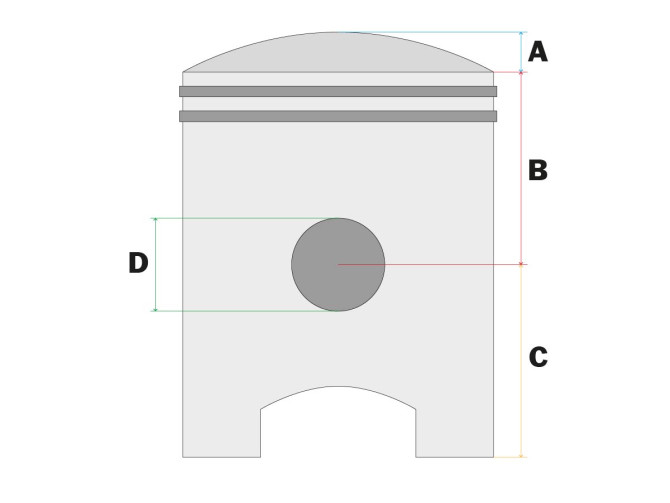

Measurements piston::

• A: 4mm
• B: 22mm
• C: 24mm
• D: 12mm
