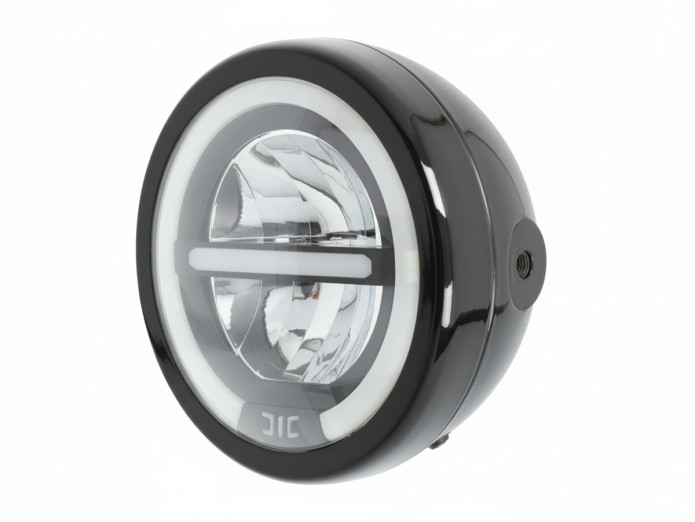

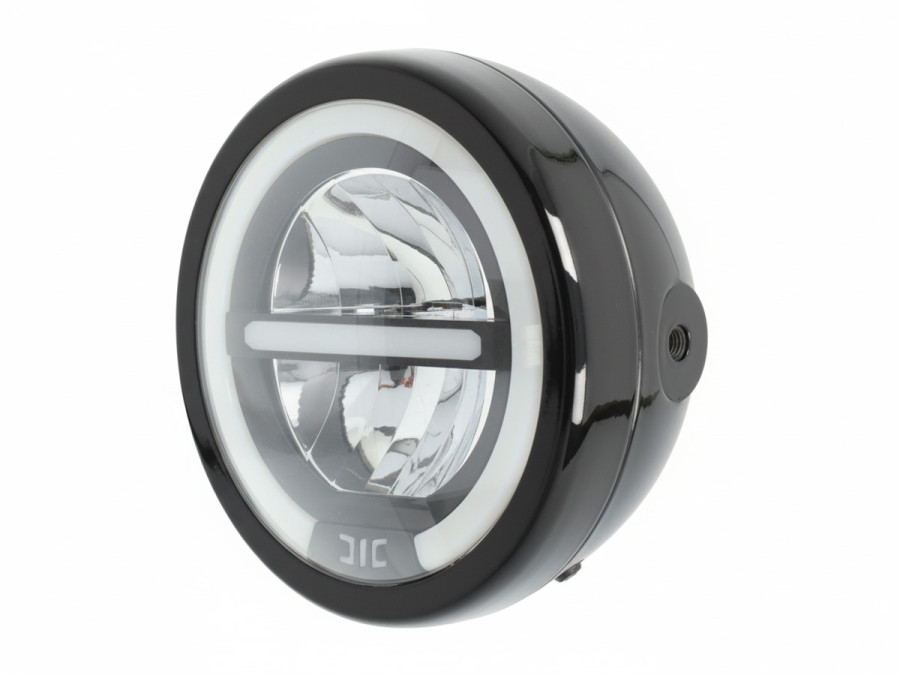

Headlight round 165mm Angel Eye "V2" LED 12V gloss black

Headlight round 165mm LED yellow white glss black Angel Eye

Modern 165mm custom LED headlight for Tomos with Angel Eye running light. Choose yellow or white LED depending on wiring. Strong illumination and durable black metal housing.

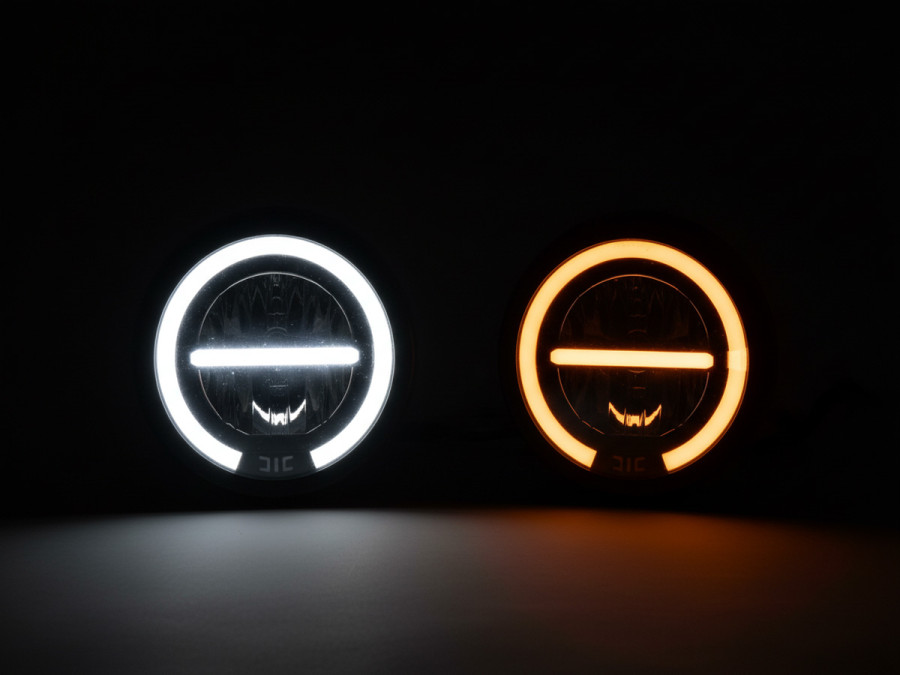

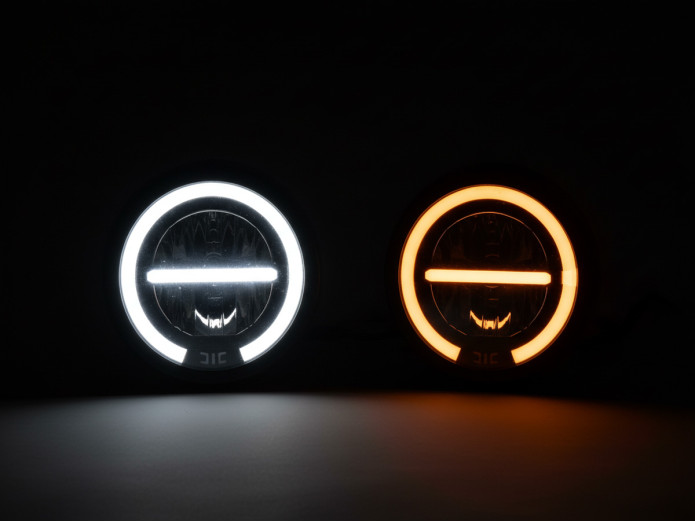

• White or yellow LED light
• Angel Eye running light
• Gloss black RAL 9005 powdercoated metal housing
• 20W high beam / 11W low beam
• 12V DC

Note: This headlight operates on 12V DC. Riding on AC power? Always install a rectifier and/or use a battery to prevent damage to the LED.

Dimensions

• A: M8
• B: 165mm
• C: 65mm
• D: 150mm

Wiring:

• Green: Ground
• White: Low beam
• Blue: High beam
• Red: Angel eye white / city light
• Brown: Angel eye orange / daytime running light
