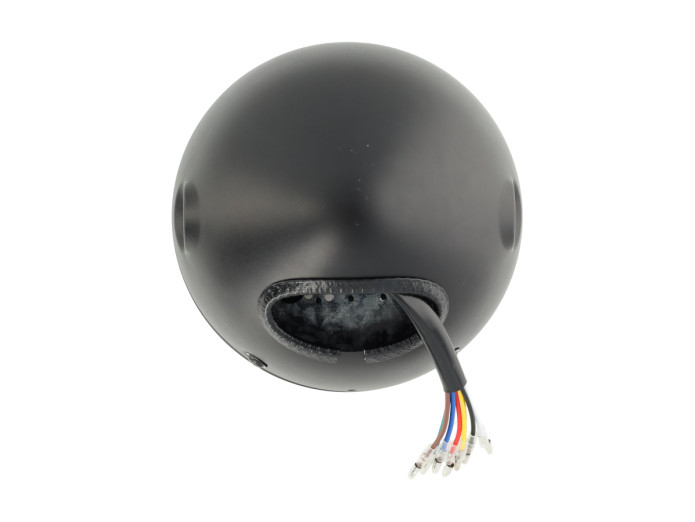

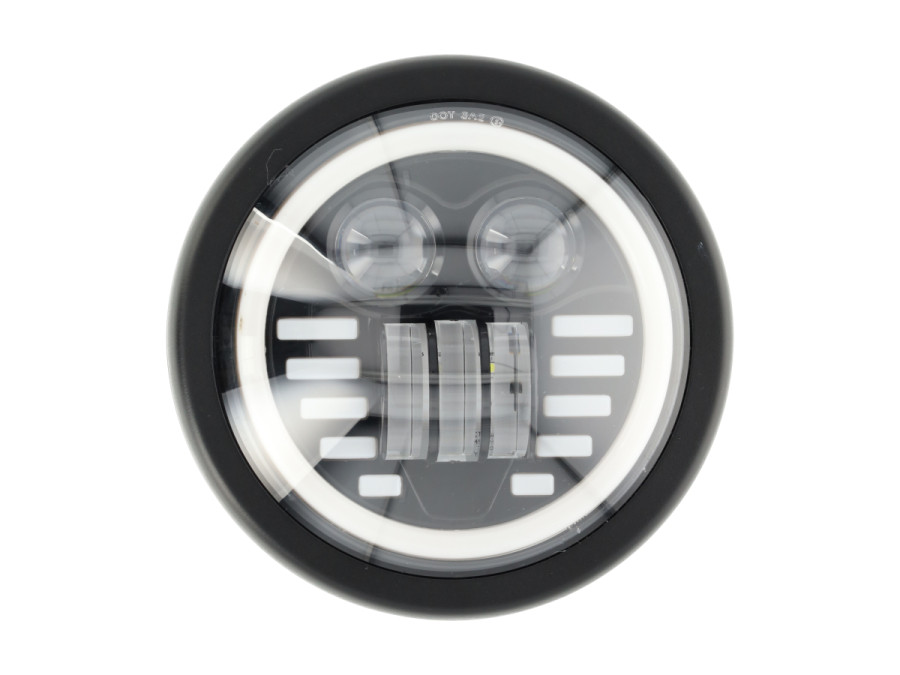

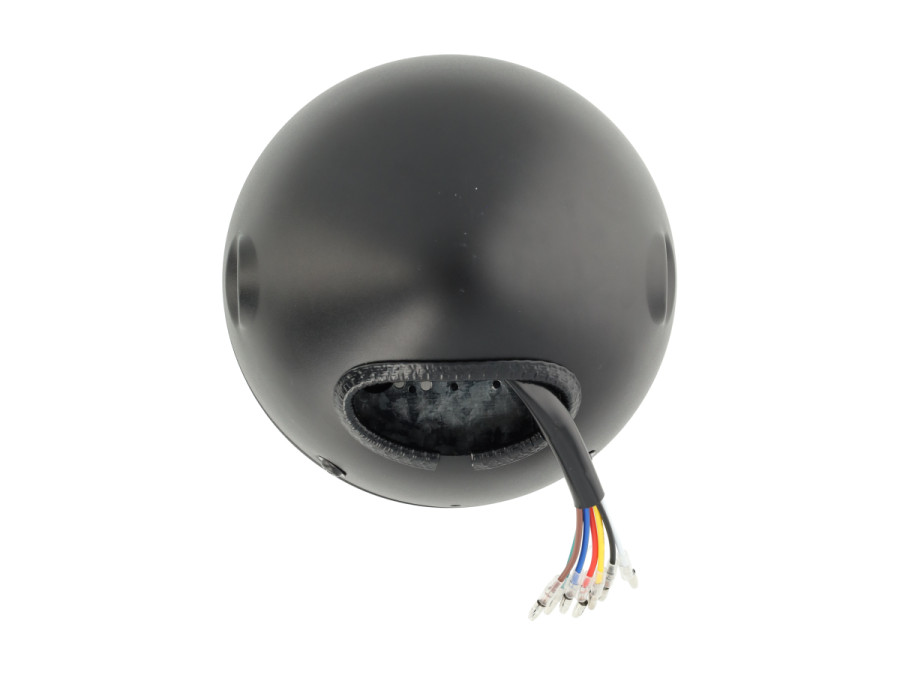

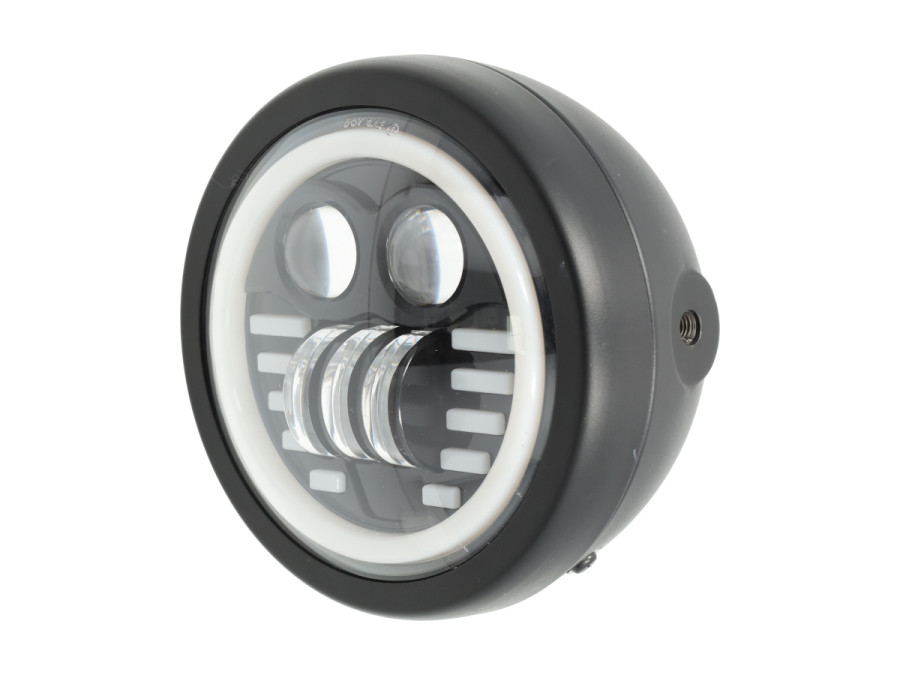

Headlight round 165mm Angel Eye "Wings" LED 12V

Headlight round 165mm LED yellow white black Angel Eye Cross

This modern LED headlight with Angel Eye Wings pattern gives your Tomos a unique and futuristic look. Choose between white or yellow LED depending on wiring.

This model has 7 connections due to the built-in indicators. These are not legal for public road use.

• Angel Eye Wings light pattern
• White or yellow LED
• Built-in indicators (not road legal)
• Black metal housing
• 20W high beam / 11W low beam
• 12V DC

Note: This headlight operates on 12V DC. Riding on AC power? Always install a rectifier and/or use a battery to prevent damage to the LED.

Dimensions

• A: M8
• B: 165mm
• C: 65mm
• D: 150mm

Wiring:

• Green: Ground
• White: Low beam
• Blue: High beam
• Red: Angel eye white / city light
• Brown: Angel eye orange / daytime running light

• Black: Left indicator
• Yellow: Right indicator
