Manifold Tomos A35 19mm Dellorto PHBG / Polini CP

Manifold Tomos A35 19mm Dellorto PHBG / Polini CP

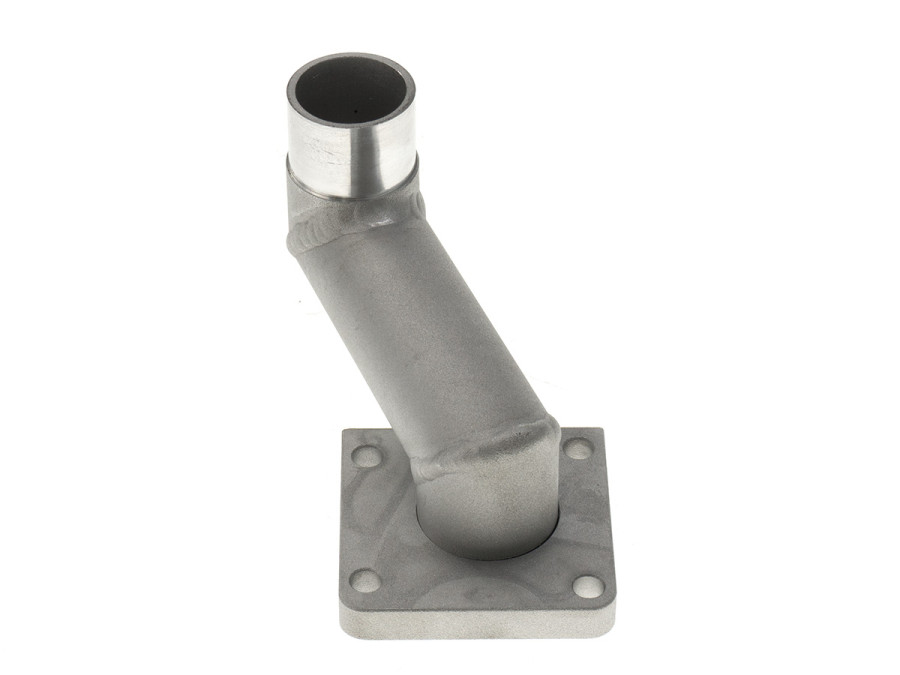

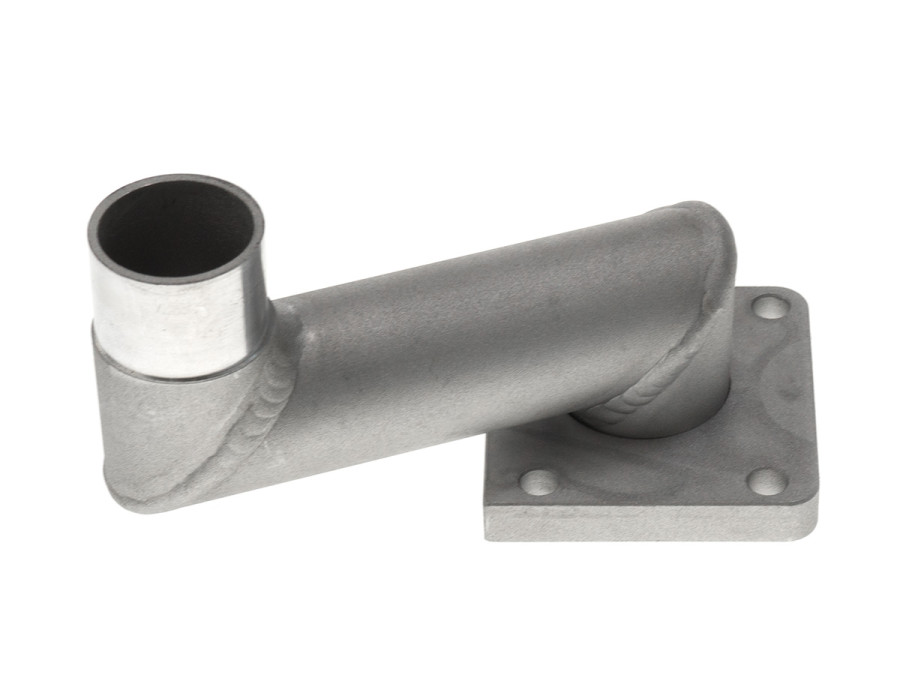

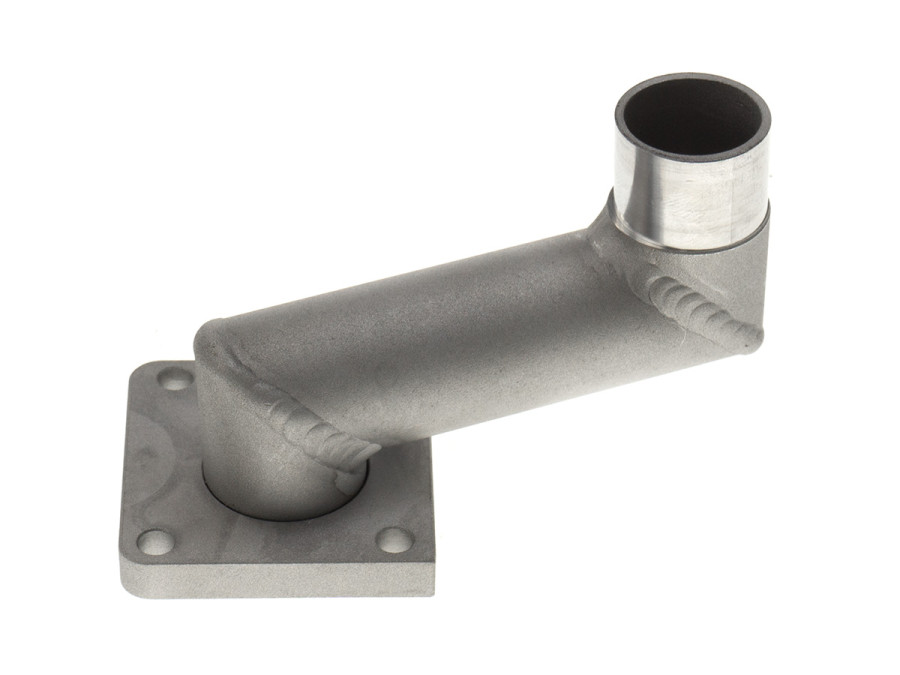

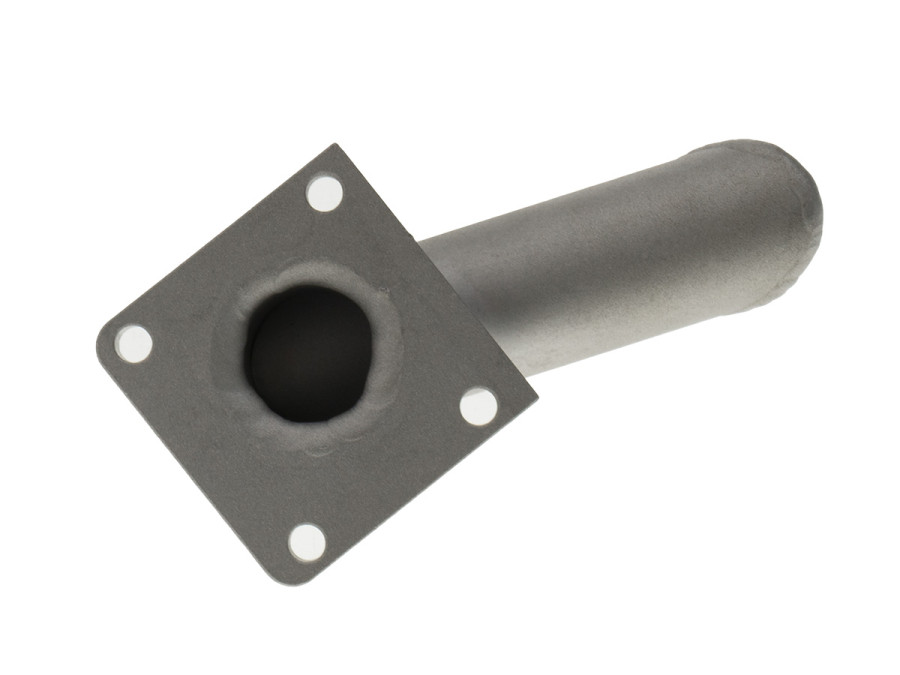

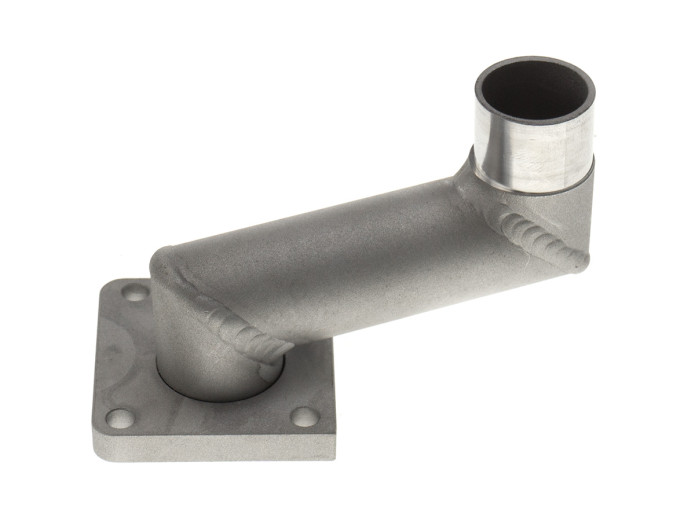

Manifold suitable for Tomos A35 with reed valve cylinder. Manifold has an inner diameter of 19mm and is suitable to fit your Tomos with a carburettor with a large bore! This updated version can be used directly with a Dellorto PHBG / Polini CP clamp version carburettor with a connection of 24mm! So the manifold no longer needs to be modified to fit these carburettors.

• Connection outer diameter: 24mm

• Inner diameter: 19mm

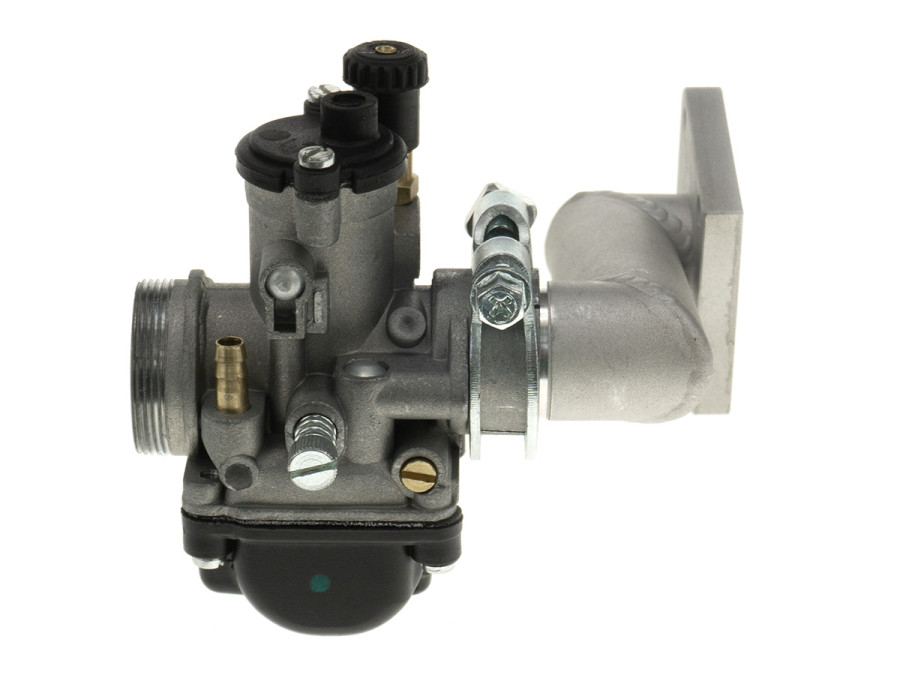

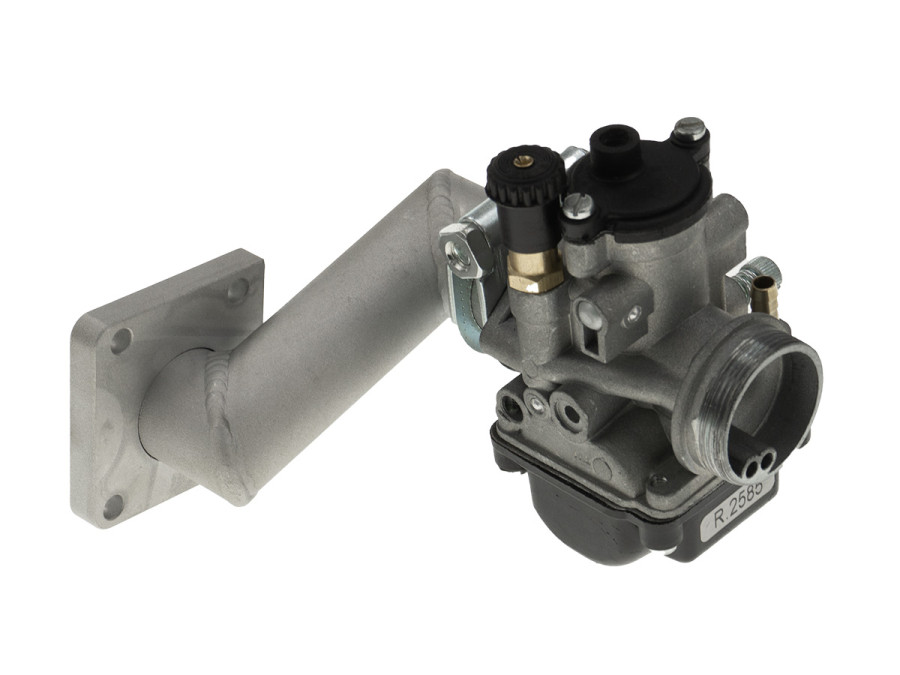

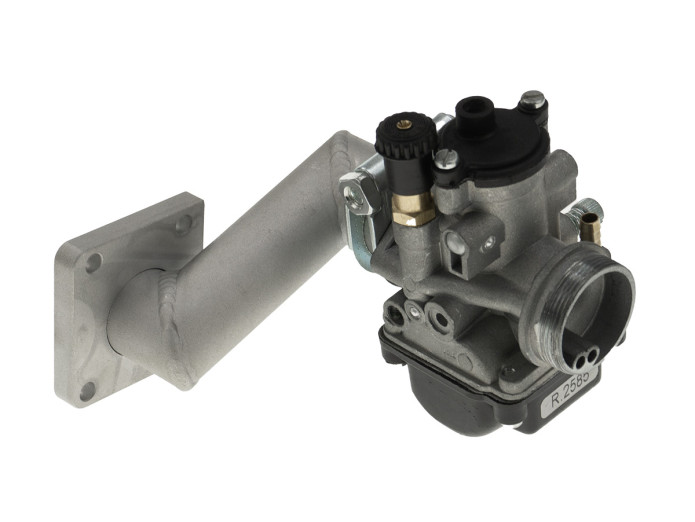

• To be used for Dellorto PHBG / Polini CP clamp version carburettors with 24mm connection

• Does not fit with Tomos E-starter
• Manifold for mounting carburettor right beside frame
• Suitable for 17.5mm, 19mm, 19.5mm and 21mm carburetors
• When using a Polini CP/EVO carburettor, the bottom overflow may need to be modified so that it does not touch the clutch cover
• This manifold is not suitable for carburettors with a drain plug at the bottom, as this drain plug will touch the clutch cover

Note

• The carburettor may be very slightly tilted after mounting, this does not affect operation.

• Use 1x loose M5x25 stud and 3x socket head bolts for mounting manifold for this or adjust the manifold slightly for easy mounting.

• Not suitable for a Bing 19mm, the connection diameter for this carburettor is 25mm
• Only fits on Tomos A3 frame models, so not Youngst'R, Flexer / Funtastic / Streetmate / Revival / Pack'R.

For Tomos A35 / A52 with reed valve cylinder

• Tomos A3
• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie

Dimensions:

• A: 5mm
• B: 36mm
• C: 39mm
• D: 32mm
• E: 60mm
• F: 24mm
• G: 100mm
