Cylinder head Tomos A35 A52 50cc high pressure small chamber

€ 23,50

Ex Tax: € 19,42

Directly available

Model: 10130

10130 10130 10130 DMP

https://www.tomoshop.nl/en-gb/cylinder-head-alu-high-pressure-50cc-38mm-with-smaller-combustion-chamber-dmp.html 2025-12-08

Without shipping costs. VAT info.

Do you need some help or advice?

Check out our info center or contact us!

Description

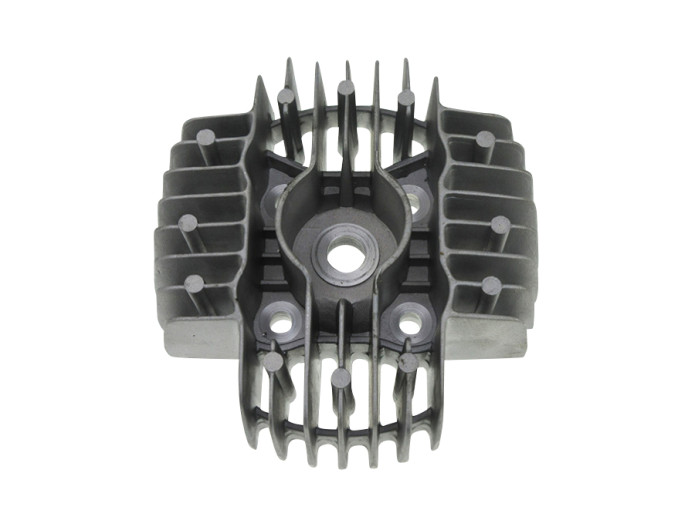

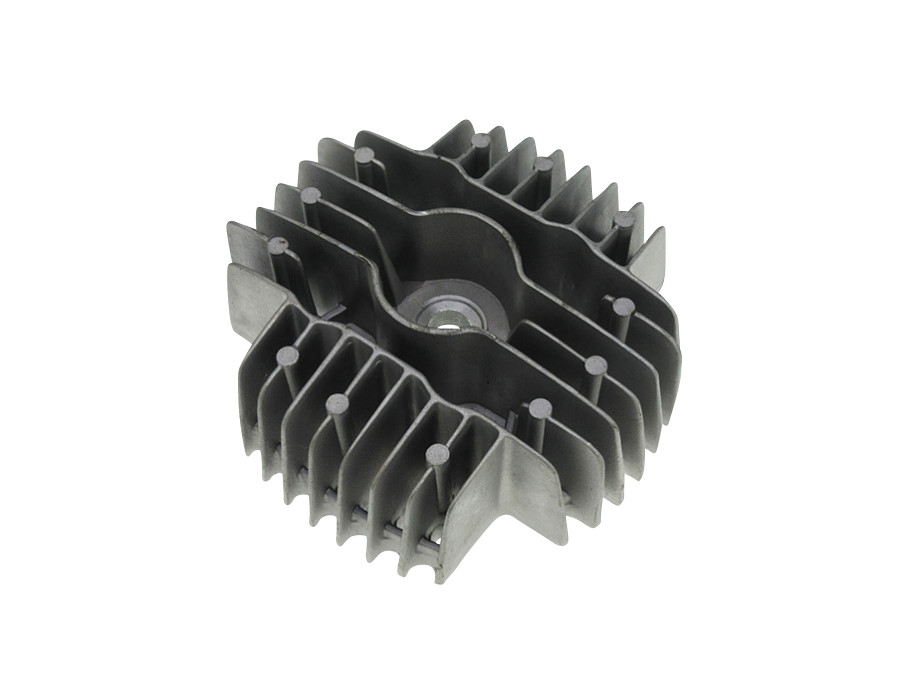

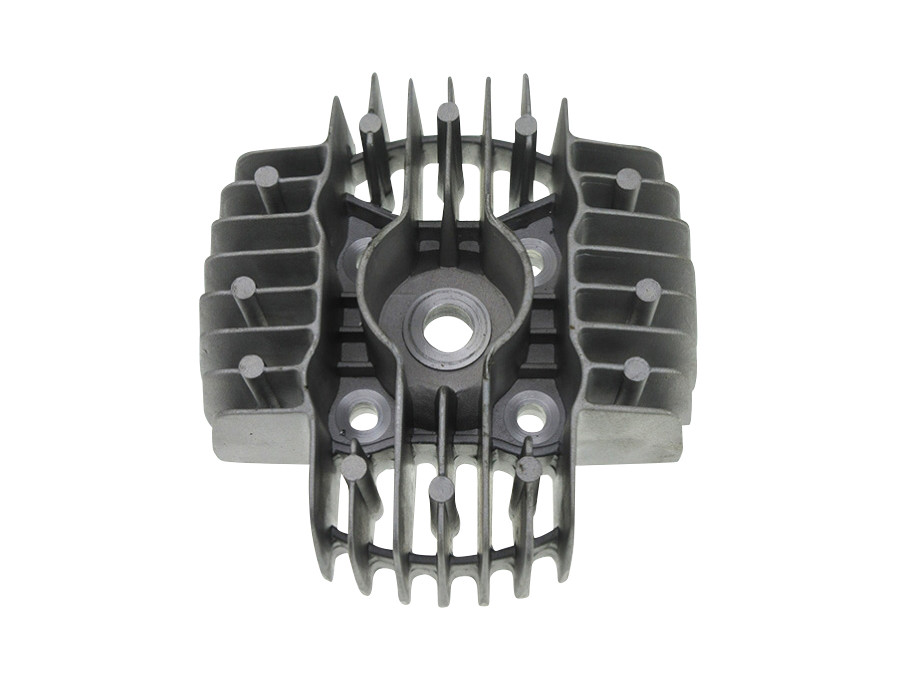

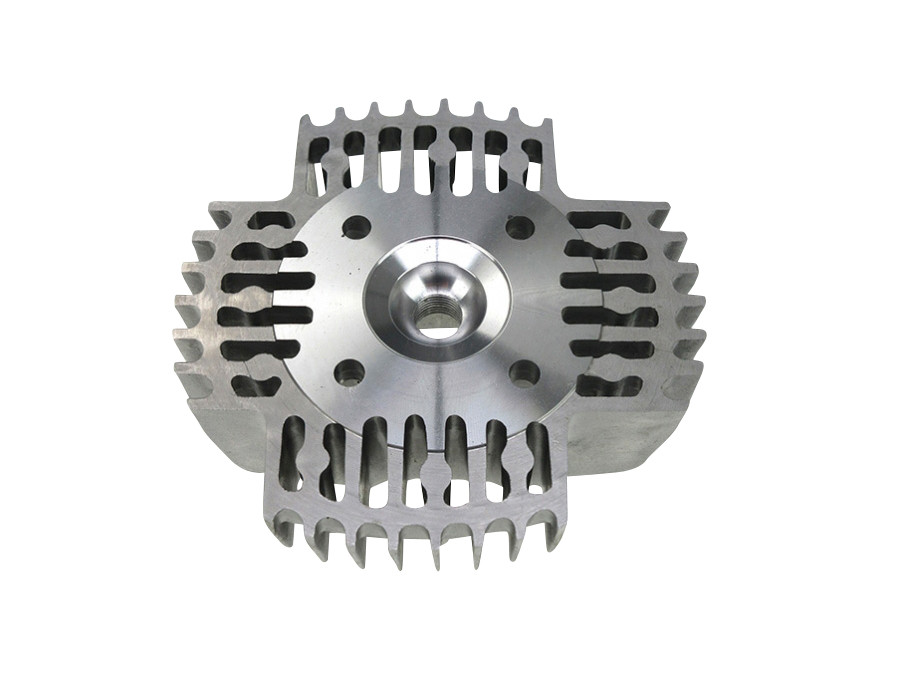

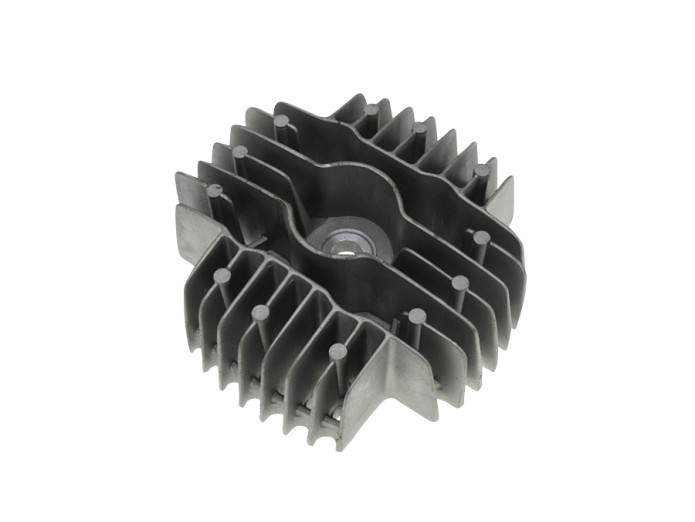

Cylinder head with smaller combustion chamber DMP

50cc (38mm)
Puch cylinder head with smaller combustion chamber.
The cooling ribs can be a little different. The example is with a Tomos Airsal cylinder.
Suitable to edit your cylinder's squish yourself.
High compression, which can be ideal for a cross-Tomos, the topspeed can decrease with these heads.

Also note your base gasket , with some cylinders it may be that the piston gets headed. But do not panic, add an additional base gasket.

For Tomos A35 / A52 with reed valve cylinder

Tomos A35
Tomos Standard
Tomos Classic
Tomos Quadro
Tomos Luxe
Tomos Flexer / Sport'R
Tomos Pack'R
Tomos Youngst'R
Tomos Revival A35
Tomos Wizz'rd
Tomos Califone
Tomos Roadie

Brand:	DMP
Model:	10130
EAN:	8718336008271
MPN:	1724
Category:	Cylinder / head
Cylinder / head
Cylinder diameter:	38mm
Cylinder Displacement:	50cc
Piston pin:	12
Weight:	630 gram
