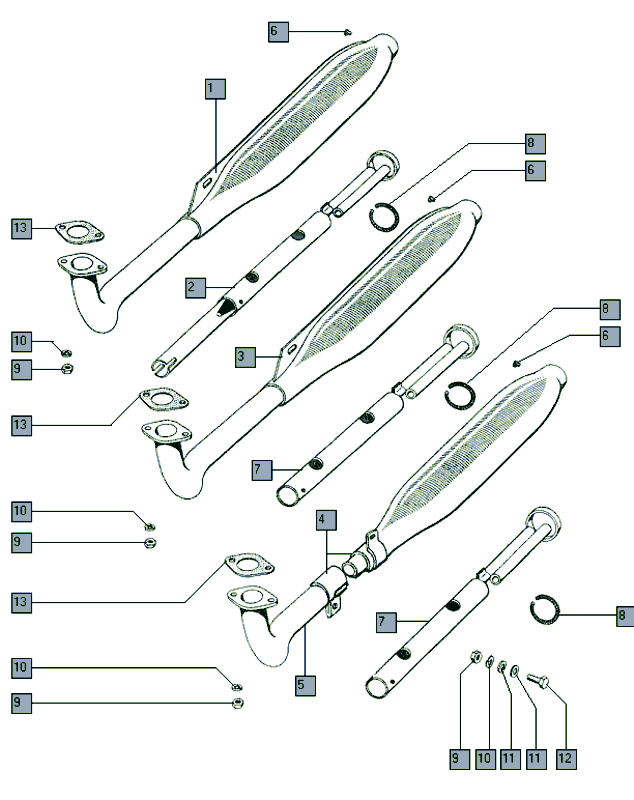

Tomos A3 exhaust

1 219686 SEE 223.241

2 219691 INNER SILENCER

3 209631 SEE 223.241

4 207321 EXHAUST COMPLETE-NOT AVAILABLE

5 207559 SEE 227.476

6 44588 PARKER 3.5X6.5

6 44588 PARKER 3.5X6.5

6 44588 PARKER 3.5X6.5

7 207102 INNER SILENCER

7 207102 INNER SILENCER

8 207103 ASBESTOS ROPE-NOT AVAILABLE

8 207103 ASBESTOS CORD-NOT AVAILABLE

8 207103 ASBESTOS ROPE-NOT AVAILABLE

9 31075 NUT M6

9 31075 NUT M6

9 31075 NUT M6

9 31075 NUT M6

10 31845 SPRING B6

10 31845 SPRING B6

10 31845 SPRING SPRING B6

10 31845 SPRING B6

11 31932 WASHER 6

11 31932 RING 6

12 26288 HEX BOLT M6X25 STAINLESS STEEL

13 203862 SEE 227.149

13 203862 SEE 227.149

13 203862 SEE 227.149
