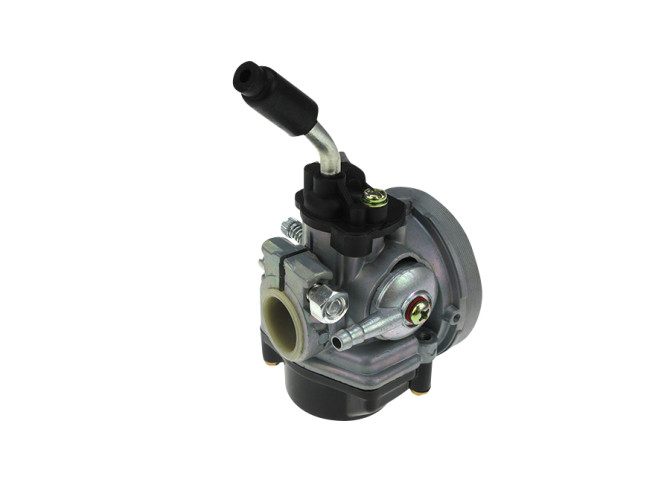

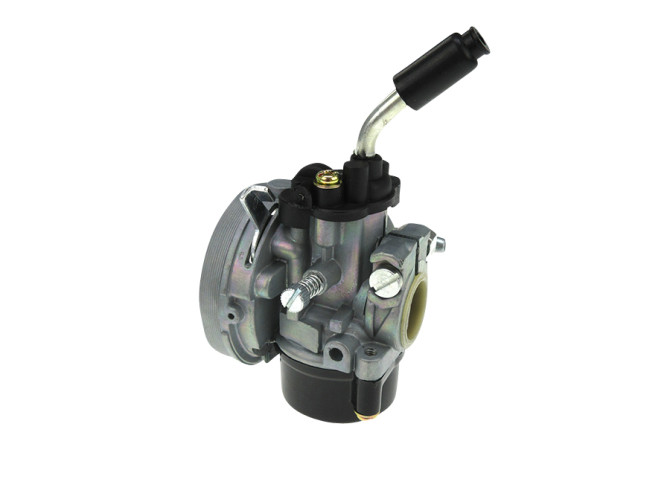

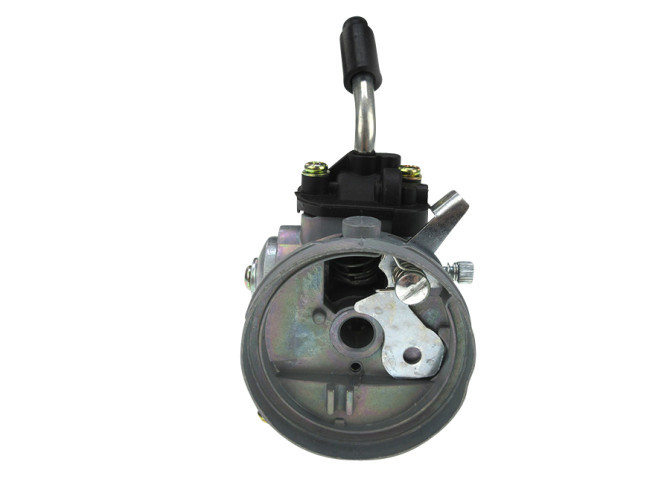

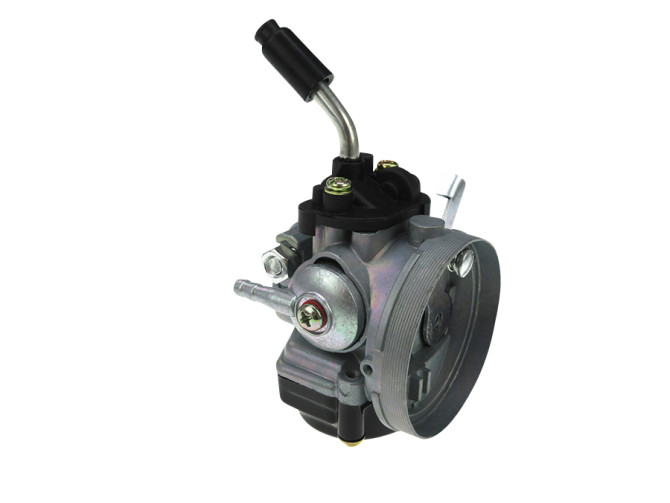

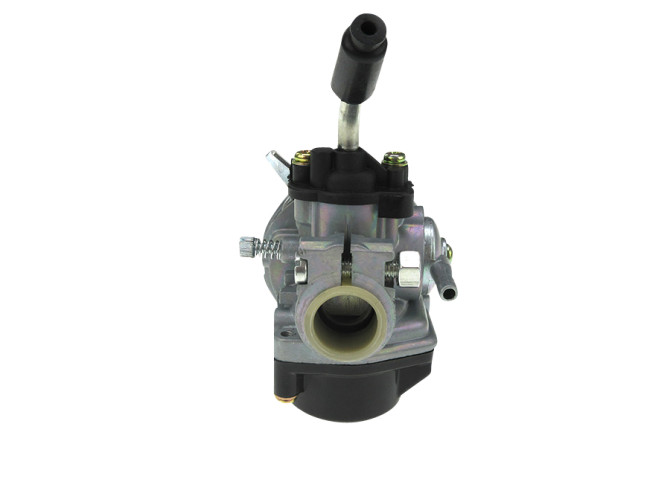

Dellorto SHA 14/9 carburetor replica Tomos A35 25 km/h

Dellorto replica carburetor SHA 14/9.

• Hand choke control

• Elbow adjusting screw points up. Order a 90 degree bend with it if it needs to point forward.
• For 5mm jet/nozzles
• Is supplied with blank nozzle

• Airfilter connection 56mm
• Manifold connection 18mm

Note:

• Choke is in a slightly different place, so doesn't come out exactly if you ride with side covers. If you don't have side covers then this is not a problem.

• So the nozzle should be changed at all times before fitting the carburettor with a nozzle that suits the set-up. So the blank nozzle cannot be used.
• Do not overtighten your carburetor to your manifold, as this may cause the clamp to break. No warranty when you have overtightening the clamp!


For Tomos A35 / A52 with reed valve cylinder

• Tomos A35
• Tomos Standard
• Tomos Classic
• Tomos Quadro
• Tomos Luxe
• Tomos Flexer / Sport'R
• Tomos Pack'R
• Tomos Youngst'R
• Tomos Revival A35
• Tomos Wizz'rd
• Tomos Califone
• Tomos Roadie
• Also for universal use
